Power planning is key in modern VLSI design, crucial for battery-powered devices. It ensures power reaches all parts of the design. The power distribution network (PDN) uses power pads, rings, stripes, and rails to deliver power.
Good power planning helps manage power use, cuts down on power loss, and boosts chip performance. The PDN is a complex system that needs careful design for efficient power delivery.

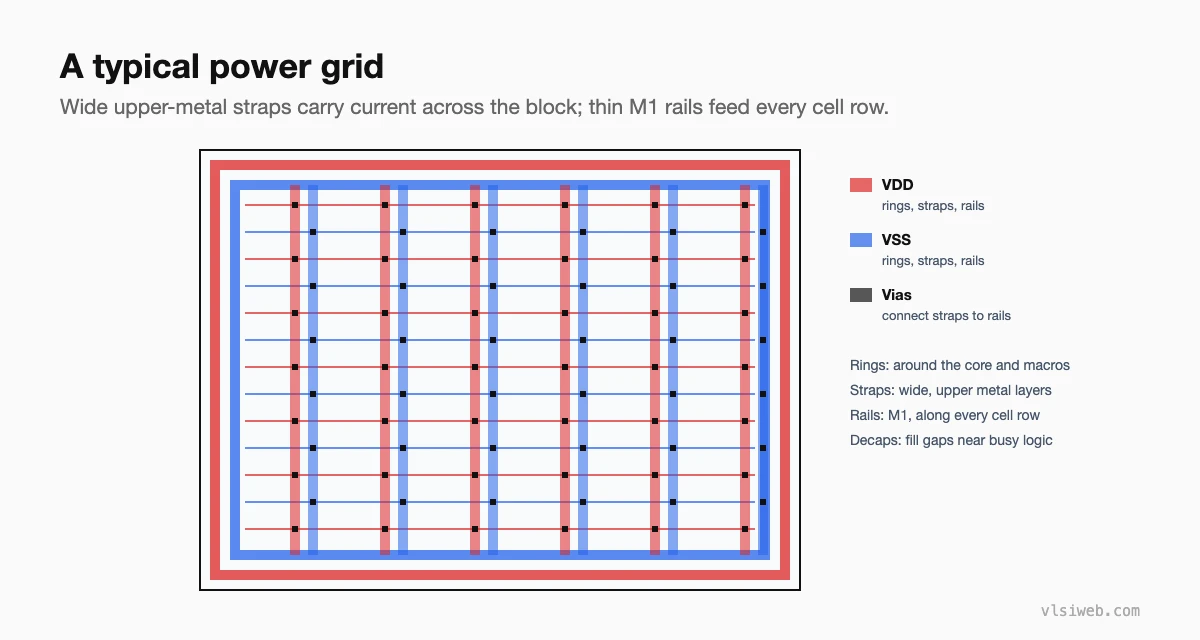

Power pads connect the outside world to the chip’s power rings. These rings, with a VDD and a VSS ring, spread power to stripes. Stripes in the top metal layer link to power rails at Metal layer 1, using power vias.
Effective power planning requires understanding the PDN’s components and their connections. It tackles power consumption and distribution challenges. By designing power rings, stripes, and grids well, VLSI engineers can efficiently power the chip, reducing losses and enhancing performance.
Table of Contents
Understanding Power Distribution Fundamentals
Power distribution is key to our modern electrical systems. It makes sure electricity flows well from generation to users. Knowing the parts and structure of power networks is crucial.
Power Distribution Network Components
The network has important parts like power pads, trunks, and core rings. It also has power stripes and rails. These carry electricity to our devices.
Power Delivery Hierarchy
The power delivery order is vital for a stable system. Electricity moves from power pads to trunks, then to core rings. It goes to power stripes and rails before reaching our devices.
Importance of Proper Power Planning
Good power planning is key. It keeps voltage stable and prevents damage to devices. It also saves space and makes design easier.
| Power Distribution Component | Description |
|---|---|
| Power Pads | Entry points for power supply into the chip or device |
| Trunks | Thick metal lines that carry power from pads to core rings |
| Core Rings | Rings of power distribution around the core logic of the chip |
| Power Stripes | Parallel metal lines that distribute power from the core rings to the power rails |
| Power Rails | Horizontal metal lines that provide power to the standard cells and IO pads |
Essential Inputs for Power Planning Process
To make a strong power plan for a VLSI chip design, you need a lot of important information. This info tells you about the design’s layout, timing needs, and power use. It helps in making accurate power plans and doing detailed analysis. The main inputs for power planning are:
- Netlist (.v): This file shows how the design’s parts are connected and what logic gates are used. It’s the base for power analysis.
- SDC (Synopsys Design Constraints): The SDC file sets the timing rules. These rules are key to making sure the design works well and is reliable.
- Physical Libraries (.lef): The LEF file has the layout of the VLSI chip. It includes rules for cells and how they’re simplified.
- Logical Libraries (.lib): The Liberty (.lib) file gives details on the standard cells’ logic and power use in the design.
- TLU+ (Table Look-Up) Files: These files have the data on resistance and capacitance needed for power analysis and IR drop calculations.
- UPF (Unified Power Format) or CPF (Common Power Format): These files outline the power intent, domains, and control methods for designs with different voltages.
Using these key inputs, designers can make a detailed power plan. This plan ensures power is distributed well, power use is low, signals are clear, and the design meets its performance goals. The power planning process includes simulating power use, checking for power changes, and using methods like power gating and clock gating to boost efficiency.
| Input | Description |
|---|---|
| Netlist (.v) | Describes the interconnections and logic gates within the design |
| SDC (Synopsys Design Constraints) | Specifies the timing constraints for the design |
| Physical Libraries (.lef) | Contains the physical design layout and design rules for cells |
| Logical Libraries (.lib) | Provides information about the logical characteristics and power consumption of standard cells |
| TLU+ (Table Look-Up) Files | Contain the parasitic resistance and capacitance data for power analysis and IR drop calculations |
| UPF (Unified Power Format) or CPF (Common Power Format) | Define the power intent, power domains, and control strategies for designs with multiple voltage levels |
Creating an Effective Power Plan Structure
Building a strong power distribution network is key for VLSI chips with billions of transistors. As chips shrink, power density grows, making power planning essential for smooth chip operation. A good power plan includes core ring design, power grid architecture, and strategic stripe placement.
Core Ring Design Principles
The chip’s core is surrounded by core rings for power and ground. These rings help reduce voltage drop and current density, ensuring a stable power supply. The design of these rings depends on the chip’s power needs and metal layers available.
Power Grid Architecture
The chip’s power network is a grid of power mesh stripes. These stripes are like highways for current flow, powering the chip’s components. The stripes’ spacing and width are set based on power needs, focusing on high current density areas to keep performance up.
Stripe Placement Strategy
Where to place power and ground stripes is key for a good power plan. The number and spacing of stripes depend on the chip’s power use. As power needs grow, stripes get closer to cut down voltage drop and boost performance. Macro power and ground rings might also be added for extra power to critical parts.
| Parameter | Considerations |
|---|---|
| Core Rings | Number, width, and spacing based on chip power consumption and available metal layers |
| Power Grid Architecture | Vertical and horizontal metal stripes for efficient current flow, optimized based on power requirements |
| Stripe Placement Strategy | Number and spacing of power and ground stripes determined by ASIC core power consumption, with additional macro rings for critical components |
Power Consumption and Distribution Challenges
Understanding power consumption in ASIC designs is key to solving distribution challenges. It helps in optimizing the power plan. Power consumption falls into two main types: static and dynamic.
Static power dissipation happens when the circuit isn’t switching. It’s mainly due to leakage currents in MOS transistors. This power is present even when the device is idle. Dynamic power dissipation occurs during switching. It includes both switching power and short circuit power.
Managing these power mechanisms well is crucial for efficient power distribution. Some main challenges are:
- Balancing static and dynamic power dissipation to reduce overall power use
- Reducing the impact of leakage current, a big contributor to static power
- Optimizing switching power by lowering circuit transition frequency and capacitance
- Addressing short circuit power, which happens during logic state transitions
By understanding these power dynamics and using targeted optimization strategies, designers can make more efficient power distribution networks. These networks meet the power and performance needs of their ASIC designs.
| Power Consumption Type | Definition | Factors Affecting |
|---|---|---|
| Static Power Dissipation | Power consumed when the circuit is not switching, mainly due to leakage currents in MOS transistors | Transistor technology, operating voltage, temperature, gate oxide thickness |
| Dynamic Power Dissipation | Power consumed during circuit switching, including switching power and short circuit power | Switching frequency, load capacitance, supply voltage, short circuit current |
By tackling these power consumption and distribution challenges, designers can make more efficient and reliable ASIC designs. These designs meet the growing needs of modern electronic systems.
Implementing Power Rings and Stripes
Creating a good power distribution network is key in making integrated circuits (ICs). It’s important to use power rings and stripes right. This helps with current density, IR drop, and electromigration. Let’s look at what matters most in this process.
Ring Width Calculations
The size of power rings depends on a few things. These include the total current needed and the metal layer’s current limit. We need to calculate carefully to get the right size. This ensures enough current flow without too much voltage drop or reliability issues.
Stripe Spacing Guidelines
Where we place power stripes is very important. It helps spread power evenly across the chip. We consider things like block current and stripe width to keep power distribution balanced. This helps avoid big voltage changes.
Metal Layer Selection Criteria
Choosing the right metal layers for power paths is critical. Higher layers usually have less resistance and can carry more current. We look at metal layer features like resistance and current limits. This helps improve power flow and reduce electromigration risks.
By sticking to these rules and best practices, designers can make a strong and efficient power network. This ensures the IC works well and performs at its best.
Managing IR Drop and Electromigration
In power planning, two big challenges are voltage drop (IR drop) and electromigration (EM). IR drop happens because metal wires resist, lowering power supply voltage. This can cause delays and timing issues. Electromigration is when high currents move metal atoms, creating open and short circuits over time.
To tackle these problems, teams use several methods. They increase wire width, add more vias, and use decoupling capacitors (decaps). They also work on the power grid design. Tools like Redhawk and Voltage Storm help analyze IR drop and check power integrity, making sure designs are reliable.
As technology gets smaller, metal wires get thinner. This makes IR drop and EM worse. In newer technology, metal resistance and current density are higher. So, careful planning and analysis are needed to keep the power integrity and reliability of the design.
Managing IR drop and electromigration is key for long-term voltage drop and current density compliance. This helps ensure the power integrity and reliability of the integrated circuit.
| Mitigation Technique | Benefits |
|---|---|
| Increasing Wire Width | Reduces metal resistance, improving IR drop and EM performance |
| Adding More Vias | Provides additional current paths, mitigating EM issues |
| Using Decoupling Capacitors | Reduces supply noise and improves power integrity |
| Optimizing Power Grid Design | Ensures efficient power distribution and minimizes IR drop |
Conclusion
Making a good power plan is key in modern ASIC design. It involves understanding power distribution, considering important inputs, and designing the best power structure. This helps engineers tackle power consumption and distribution issues. It also ensures IR drop and electromigration management, leading to better power planning.
The power planning process is detailed and complex. It includes steps like using power rings and stripes and choosing the right metal layers. Each step is crucial for the chip’s power integrity and reliability. By following this method, designers can improve their ASIC designs’ performance, efficiency, and lifespan.
The role of power planning in the semiconductor industry is vital. Using the knowledge from this article helps ASIC designers face power-related challenges. They can create strong, high-performance solutions that meet today’s application needs.
