As the semiconductor industry has progressed, the need for more advanced and comprehensive timing analysis has become increasingly crucial. Signoff static timing analysis (Signoff STA) is an evolved method of static timing analysis that provides a thorough and precise validation of timing in integrated circuit (IC) design. Unlike earlier STA techniques, signoff STA offers a more detailed and exhaustive approach to timing verification, ensuring that the design meets all timing constraints and requirements.
One of the key differences between signoff STA and earlier STA analysis is the depth of the timing validation process. Signoff STA breaks down the design into various timing paths, meticulously calculating signal propagation delays and checking for violations of timing constraints, such as setup and hold times. This comprehensive analysis ensures that all timing conditions are thoroughly tested, unlike dynamic simulation, which can only verify the logical conditions exercised by the test vectors.
Moreover, signoff STA is generally faster and more efficient compared to dynamic simulation, which can become increasingly slow and computationally intensive as the design complexity increases. Signoff STA, on the other hand, can analyze the entire design, checking all timing paths rather than just the ones sensitized by the test vectors. However, it’s important to note that while signoff STA provides a robust timing validation, it does not verify the functionality of the design, which is the primary focus of dynamic simulation.
In summary, signoff STA represents a more advanced and comprehensive approach to timing analysis in IC design, offering a higher degree of accuracy and thoroughness compared to earlier STA methods. By breaking down the design, calculating delays, and checking for timing violations, signoff STA ensures that the design meets the necessary timing constraints and is ready for the final signoff process before tape-out.
Table of Contents
Understanding Static Timing Analysis Fundamentals
Static timing analysis (STA) is a powerful tool used in integrated circuit (IC) design to ensure the timing integrity of a circuit. It differs from earlier approaches by providing a comprehensive analysis of all timing paths within a design, rather than relying on dynamic simulation. STA breaks down the design into individual timing paths, each consisting of a startpoint, a combinational logic network, and an endpoint.
Breaking Down Timing Paths and Components
Startpoints in STA are typically input ports or register clock pins, while endpoints are register data input pins or output ports. The combinational logic network between the startpoint and endpoint is responsible for processing the data. STA calculates both the maximum and minimum delays along these timing paths, ensuring that the design meets its timing constraints.
Setup and Hold Time Concepts
A crucial aspect of STA is the analysis of setup and hold time constraints. Setup time specifies the minimum duration that data must be available before a clock edge, while hold time indicates the minimum duration that data must remain stable after a clock edge. Timing violations occur when these constraints are not met, potentially leading to circuit malfunctions.
Cell Delay and Net Delay Analysis
STA considers two primary sources of delay: cell delay and net delay. Cell delay is the propagation delay from the input to the output of a logic gate, calculated from delay tables in the library. Net delay, on the other hand, is the delay caused by the interconnect between cells, influenced by factors such as parasitic capacitance, net resistance, and limited drive strength.
By understanding these fundamental concepts of STA, designers can effectively analyze and optimize the timing of their circuits, ensuring their designs meet the required performance and reliability standards.
The Evolution to Signoff STA
As the demands of modern IC design have evolved, the field of static timing analysis (STA) has undergone a significant transformation. The emergence of signoff STA has been a game-changer, offering enhanced accuracy, reliability, and efficiency in timing validation. This evolution has been driven by the need for more precise timing analysis in increasingly complex chip designs, ensuring first-pass silicon success and reducing schedule risks.

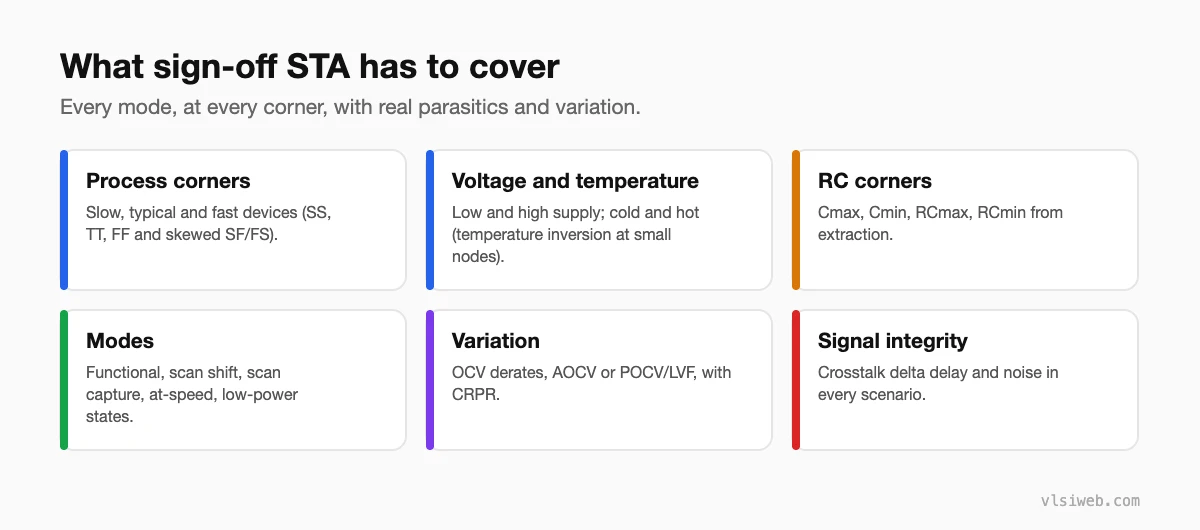

Signoff STA incorporates a range of advanced features that address the challenges posed by modern IC design. It now includes variation-aware analysis, which considers the impact of process variations on circuit timing behavior. This is crucial as process variations can significantly influence circuit timing, requiring STA to account for worst-case process corners to achieve timing closure.
Additionally, signoff STA has expanded its scope to include signal integrity checks, ensuring that power and signal integrity issues do not lead to timing violations. Clock tree synthesis, which can introduce timing skew and jitter, is also meticulously analyzed to optimize overall timing performance.
The evolution of signoff STA has also been influenced by the need for more accurate timing constraints specification. Precise constraints are essential to avoid false violations or missed violations during the analysis, enabling a more streamlined and efficient timing closure process.
Furthermore, the computational demands of STA have increased exponentially due to the growing complexity of chip designs. Signoff STA now leverages advanced parallelization techniques, such as Synopsys’ PrimeTime HyperGrid technology, to enhance performance and reduce the time spent on timing analysis. This has led to significant gains in efficiency, with users reporting up to a 44% reduction in the time spent on STA in their project schedules.
As technology continues to advance, the evolution of signoff STA will remain a crucial aspect of modern IC design. By incorporating these advancements, designers can achieve more accurate and reliable timing validation, ensuring first-pass silicon success and meeting the ever-increasing demands of the industry.
Key Components of Modern Timing Analysis
As integrated circuit (IC) design has evolved, the complexity of timing analysis has grown exponentially. Today’s modern timing analysis encompasses several crucial components that ensure reliable chip performance and on-time delivery. Among these key elements are timing constraints and exceptions, clock network analysis, and signal integrity considerations.
Timing Constraints and Exceptions
Accurate timing constraints are essential for signoff static timing analysis (STA). This includes not only basic setup and hold time requirements, but also more advanced timing exceptions such as false paths, multicycle paths, and minimum or maximum delay paths. These exceptions allow designers to precisely model real-world circuit behavior and avoid over-constraining the design.
Clock Network Analysis
The clock network is the backbone of a synchronous digital system, and its analysis is critical for accurate timing validation. Factors like clock gating, multiple clock domains, and clock skew must be carefully considered to ensure the design functions as intended. Comprehensive clock network analysis helps identify potential timing issues early in the design process.
Signal Integrity Considerations
With the continued scaling of integrated circuits, signal integrity issues like crosstalk and noise have become increasingly important. Timing analysis must account for these effects to ensure reliable chip performance. Advanced signoff tools can perform detailed crosstalk and noise analysis, helping designers mitigate potential issues before tapeout.
By addressing these key components of modern timing analysis, design teams can achieve signoff-quality results and deliver high-performance, power-efficient integrated circuits on time and on budget.
| Feature | Benefit |
|---|---|
| Timing Exceptions | Accurately model real-world circuit behavior and avoid over-constraining the design |
| Clock Network Analysis | Ensure clock network integrity and identify potential timing issues early in the design process |
| Signal Integrity Analysis | Mitigate crosstalk and noise to ensure reliable chip performance |
Advanced Features in Timing Validation
As semiconductor technology continues to push the boundaries, the challenges in timing validation have become increasingly complex. To address these complexities, modern signoff static timing analysis (STA) tools have incorporated a range of advanced features that help designers ensure the reliability and performance of their designs.
One key feature is variation-aware analysis, which accounts for process, voltage, and temperature (PVT) variations that can significantly impact timing at advanced nodes. By accurately modeling these variations, designers can ensure their designs are robust and not susceptible to potential silicon failures. Integrated power analysis capabilities also enable optimization of both timing and power consumption, crucial for power-sensitive applications.
Additionally, HSPICE-accurate signoff analysis helps designers identify and resolve timing issues early in the design cycle, reducing schedule risk and ensuring design integrity. The ability to perform ECO (Engineering Change Order) insertion further allows for last-minute design modifications to address any remaining timing concerns, providing a seamless path to tapeout.
These advanced features in timing validation play a crucial role in enabling designers to achieve timing closure and deliver high-performance, power-efficient integrated circuits. By leveraging the latest tools and techniques, designers can navigate the complexities of modern design with confidence, ensuring their designs meet or exceed stringent performance and reliability requirements.
| Feature | Description |
|---|---|
| Variation-aware Analysis | Accounts for process, voltage, and temperature (PVT) variations to ensure robust designs. |
| Power Analysis | Integrates power optimization with timing analysis for power-sensitive applications. |
| HSPICE-accurate Signoff | Provides high-fidelity signoff analysis to identify and resolve timing issues early in the design cycle. |
| ECO Insertion | Enables last-minute design modifications to address timing concerns prior to tapeout. |
Industry Applications and Tool Implementation
The success of modern integrated circuit (IC) design hinges on the effective implementation of static timing analysis (STA) tools. Leading industry-standard solutions like Synopsys’ PrimeTime suite offer a comprehensive platform for timing, signal integrity, power, and variation-aware analysis. These tools are essential throughout the VLSI design flow, from initial timing checks to final signoff.
PrimeTime is renowned for its fast, memory-efficient computing capabilities, utilizing scalar and multicore processing to deliver reliable signoff solutions. The tool’s scalable architecture can handle even the largest chip designs, with features like crosstalk delay and signal integrity analysis, constraint consistency checking, and advanced on-chip variation analysis.
Beyond Synopsys’ offerings, open-source alternatives like OpenSTA and OpenTimer also provide timing analysis capabilities. These tools are valuable resources for engineers seeking flexible and cost-effective STA solutions. Implementing STA tools, whether industry-standard or open-source, requires a deep understanding of Liberty files, SPEF parsing, and timing report interpretation.
The integration of STA tools like PrimeTime with design automation solutions, such as Cadence’s Innovus, has led to improved correlation and reduced iterations during the timing closure process. This synergistic approach enables designers to achieve their desired performance targets more efficiently.
As the semiconductor industry continues to evolve, the demand for advanced STA capabilities, including layout-aware, thermal-aware, aging-aware, and IR-aware timing analysis, is on the rise. Manufacturers are increasingly adopting hierarchical timing signoff tools, such as those from Cadence, to manage complexity and improve overall timing closure.
The future of STA tools is also marked by the integration of machine learning-based techniques for enhanced statistical modeling, power recovery, and parametric analysis. Additionally, the availability of high-performance computing resources can significantly accelerate STA runtimes, enabling designers to explore a wider design space and achieve optimal results.
The implementation of industry-leading STA tools, such as PrimeTime, OpenSTA, and OpenTimer, has become an integral part of the modern VLSI design landscape. By leveraging these advanced solutions, engineers can ensure the reliability, performance, and power efficiency of their IC designs, paving the way for groundbreaking innovations in the semiconductor industry.
The Future of Signoff STA in IC Design
As the semiconductor industry continues to push the boundaries of chip design and integration, the future of signoff Static Timing Analysis (STA) is poised to undergo a transformative evolution. We foresee a growing integration of artificial intelligence (AI) and machine learning (ML) techniques to enhance the accuracy, efficiency, and versatility of signoff STA methodologies.
The relentless march towards advanced node technologies and the increasing complexity of chip designs pose new challenges that traditional STA approaches may struggle to address. Signoff STA will need to evolve to handle the timing analysis requirements of 3D-IC architectures, high-speed die-to-die interfaces, and the thermal considerations associated with vertically stacked dies. AI-driven STA tools and ML-based approaches can play a pivotal role in streamlining the signoff process, improving first-pass success rates, and reducing the overall design turnaround time.
Machine learning in timing analysis can enhance corner selection, enable predictive modeling of circuit path delays, and optimize resource allocation for multi-mode, multi-corner timing verification. Furthermore, AI-based techniques can help address the limitations of STA in accurately modeling high-speed interfaces and inductance-dominated signal integrity considerations. As the industry embraces the shift left strategy, the integration of AI and ML into signoff STA will be crucial to unlock the full potential of early-stage verification and design optimization.
