Clock Network Overview
A clock network is a special type of interconnect that efficiently distributes the clock signal from a source to multiple destinations within a digital circuit. These destinations can include flip-flops, registers, memory elements, and other synchronous circuit components.
When designing a clock network, it is crucial to ensure that the clock signal reaches all destinations with low-skew, low-jitter, and low-power characteristics while meeting the setup and hold time constraints of the circuit design.
Low-skew refers to the minimal variation in arrival times of the clock signal at different destinations. This is particularly important as any significant skew can lead to timing violations and degrade circuit performance. Efficient clock network designs minimize the skew while facilitating synchronous operation across the entire circuit.
Low-jitter, on the other hand, pertains to the stability of the clock signal over time. Jitter can introduce uncertainty and unpredictability in the timing of events within the circuit. By reducing jitter in the clock network, designers can ensure reliable and accurate timing synchronization of circuit elements.
Moreover, a low-power clock network is essential for managing power consumption within a digital circuit. Clock power can have a significant impact on the overall power dissipation, and optimizing the clock network’s power efficiency can help improve the circuit’s energy consumption.
Various clock network design techniques are employed to achieve these requirements. These include H-tree, mesh, spine, or CTS (clock tree synthesis). These techniques enable the distribution of the clock signal while minimizing skew, controlling jitter, and optimizing power efficiency.
Benefits of Clock Network Design:
- Accurate and synchronized operation of circuit components
- Prevention of timing violations and performance degradation
- Improved circuit reliability and robustness
- Reduced power consumption
- Enhanced overall circuit performance
Factors to Consider in Clock Network Design:
- Frequency and timing requirements of the circuit
- Number and distribution of clock sinks
- Circuit topology and interconnect architecture
- Signal integrity and noise considerations
- Constraints such as setup and hold time requirements
In summary, the clock network is a critical component in digital circuit design as it ensures synchronous operation, minimizes timing violations, and optimizes power consumption. By employing appropriate clock network design techniques, designers can achieve reliable, low-skew, low-jitter, low-power clock distribution that meets setup and hold time constraints.
Timing Constraints and Margins
Timing constraints and margins play a critical role in ensuring the reliable operation of clock networks and meeting the desired circuit performance. These constraints, specified in SDC files, define the acceptable range of clock arrival times at various destinations within the design.
The main parameters included in timing constraints are the clock period, clock uncertainty, input/output delay, and false/multicycle paths. The clock period represents the desired time interval between consecutive clock edges. It determines the maximum frequency at which the circuit can operate reliably. Clock uncertainty defines the extent to which the actual clock arrival time can deviate from the specified clock period.
Furthermore, input/output delay represents the time taken for signals to propagate through the input/output paths, affecting the overall timing of the design. Additionally, the presence of false/multicycle paths can introduce timing violations, requiring careful consideration during the analysis process.
To ensure a robust design, timing margins are introduced. Timing margins account for the differences between the actual and required clock arrival times. These margins can be either positive or negative. A positive margin indicates that the clock arrives earlier than required, providing additional timing slack. Conversely, a negative margin suggests that the clock arrives later than required, potentially leading to timing violations.
By carefully defining timing constraints and considering timing margins, designers can optimize their clock networks and achieve the desired circuit performance.
Clock Skew Analysis

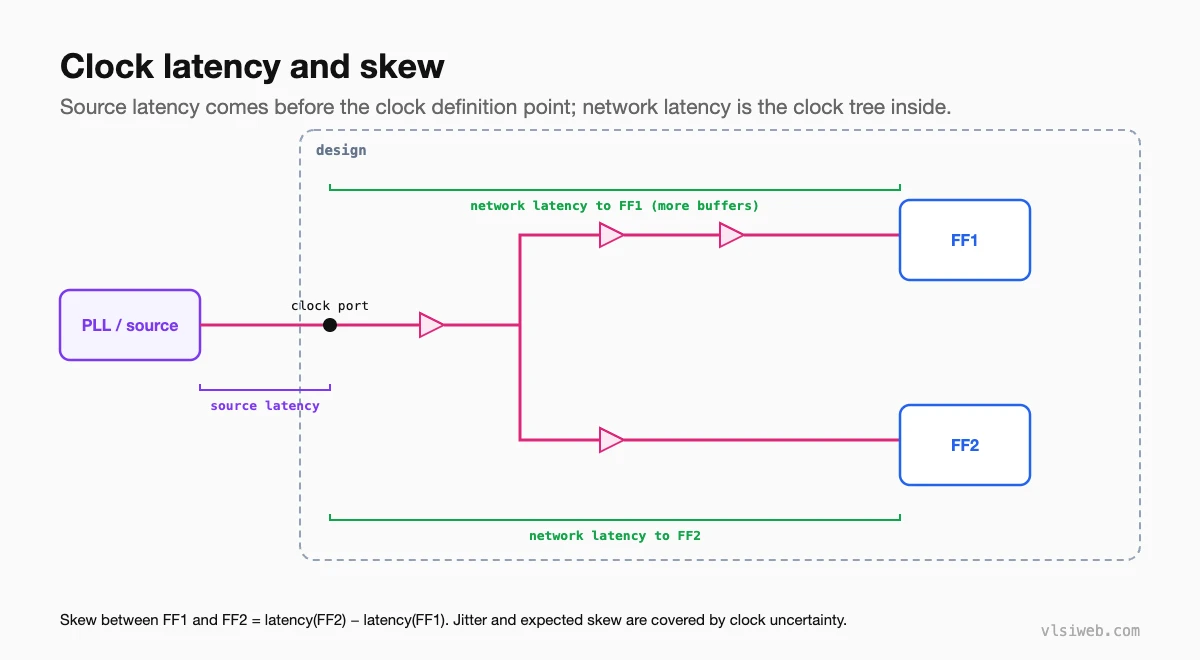

In the world of circuit design, clock skew is a critical aspect to consider. It refers to the variance in clock arrival times between two destinations within the same clock domain. Clock skew can significantly impact the performance and reliability of a design, potentially leading to reduced effective clock periods or setup and hold time violations.
There are several factors that can contribute to clock skew, including variations in process, voltage, temperature, wire length, load capacitance, and routing congestion. These variations introduce uncertainties in the clock signal, causing disparities in arrival times. Understanding and managing clock skew is essential for ensuring the proper functioning of a circuit.
One valuable tool for analyzing clock skew and identifying worst-case scenarios is PrimeTime. PrimeTime provides comprehensive analysis capabilities and allows designers to evaluate clock skew values for each clock pin or clock domain. By leveraging the power of PrimeTime, designers can gain valuable insights into the clock skew characteristics of their designs, helping them make informed decisions to optimize their circuits for improved performance and reliability.
Clock Jitter Analysis
In the realm of clock networks and timing analysis, clock jitter is a crucial factor that must be carefully evaluated. Clock jitter refers to the variation in the clock period or frequency over time, influencing the overall performance and reliability of the design.
The manifestation of clock jitter can be attributed to various noise sources, such as power supply noise, cross-talk, and electromagnetic interference. These factors introduce uncertainty in the clock arrival times, which can lead to signal degradation and timing margin issues.
Effectively analyzing clock jitter requires measurement and characterization of its different components, including random jitter, deterministic jitter, and total jitter. By understanding these elements, designers can gain valuable insights into the behavior and impact of clock jitter on the overall system performance.
One powerful tool that aids in clock jitter analysis is the JitterAnalyzer. This tool enables designers to measure and quantify the extent of clock jitter in their designs accurately. With the assistance of the JitterAnalyzer, designers can extract crucial data and metrics to optimize their clock networks and minimize the negative effects of clock jitter.
Components of clock jitter analyzed by JitterAnalyzer:
Component | Description |
---|---|
Random Jitter | Unpredictable variations in the clock period or frequency caused by statistical phenomena. |
Deterministic Jitter | Regular and predictable variations in the clock signal due to various factors like periodic noise sources. |
Total Jitter | The combined effect of random jitter and deterministic jitter, representing the overall level of clock jitter. |
By leveraging the JitterAnalyzer and understanding the various components of clock jitter, designers can make informed decisions to address and mitigate the adverse effects of clock jitter. Through thorough analysis and optimization, designers can enhance the timing margin and overall performance of their clock networks.
Clock Power Analysis
In order to ensure the performance and efficiency of a design, it is crucial to analyze the power consumption of the clock network. Clock power refers to the amount of power consumed by the clock network, and it can significantly contribute to the total power dissipation of the design.
The power consumption of the clock network is influenced by various factors, including clock frequency, clock load, clock switching activity, and clock network topology. Clock frequency determines how many clock cycles occur per unit of time, and higher frequencies typically result in increased power consumption. Clock load represents the capacitive load seen by the clock network, which affects the power consumed during clock signal propagation.
Clock switching activity is another important factor that impacts power consumption. It refers to the frequency of transitions in the clock signal, and higher switching activity leads to increased power dissipation due to the charging and discharging of capacitances along the clock path.
The clock network topology also plays a significant role in determining power consumption. The way the clock signals are distributed and routed throughout the design can impact power dissipation. Different clock network topologies, such as clock tree structures like H-tree, mesh, spine, or clock tree synthesis (CTS), can offer varying levels of power efficiency.
To accurately analyze and optimize clock power consumption, designers can utilize tools like PowerArtist. PowerArtist is a power analysis tool that provides detailed insights into the power consumption of the clock network at different design stages. It allows designers to estimate and optimize power consumption by identifying power-hungry portions of the clock network and implementing targeted power reduction techniques.
PowerArtist Features:
- Power estimation and optimization for clock networks
- Identification of power-hungry areas in the clock network
- Power reduction techniques for optimizing clock power consumption
- Analysis of clock frequency, load, switching activity, and network topology
By leveraging PowerArtist, designers can gain valuable insights into the power characteristics of the clock network and make informed decisions to optimize power consumption without sacrificing design performance and efficiency.
Factors | Impact on Clock Power |
---|---|
Clock Frequency | Higher frequencies result in increased power consumption. |
Clock Load | Higher load capacitance increases power dissipation. |
Clock Switching Activity | Higher switching activity leads to increased power consumption. |
Clock Network Topology | Different topologies offer varying levels of power efficiency. |
With advanced tools like PowerArtist, designers can optimize the clock power consumption of their designs, resulting in improved power efficiency and overall performance.
Conclusion
In summary, Clock Networks play a crucial role in Static Timing Analysis (STA) for circuit performance and design optimization. By understanding and analyzing the timing constraints, clock skew, clock jitter, and clock power of the clock network, we can ensure the robustness and reliability of the design. Through the utilization of the appropriate tools and techniques, we can optimize the clock network to achieve improved performance, reduced power consumption, and overall design efficiency.
