Welcome to our article on timing paths in static timing analysis (STA). As chip designers, we understand the importance of validating timing performance to ensure the proper functionality of a design. STA plays a critical role in this process by checking all possible paths for timing violations under worst-case conditions.
In STA, timing paths are divided and analyzed, including data paths, clock paths, clock gating paths, and asynchronous paths. By calculating the delay along each path, designers can identify any timing violations such as setup and hold violations that may impact the design’s operation.
In this article, we will explore the different types of timing paths and how static timing analysis works to validate timing constraints. By understanding timing paths in detail, designers can optimize their chip designs and ensure excellent performance and reliability.
Table of Contents
Types of Timing Paths
In static timing analysis (STA), there are different types of timing paths to consider. Understanding these paths is crucial for accurately analyzing and resolving timing violations. The main types of timing paths in STA are data paths, clock paths, clock gating paths, and asynchronous paths.
Data Paths
Data paths are the paths through which data is launched from an input port and propagated through combinational logic to be captured at an output port. These paths play a critical role in the flow of information within a design. By analyzing data paths, we can ensure that data flows correctly and meets timing requirements.
Clock Paths
Clock paths, on the other hand, involve the propagation of the clock signal through buffers or inverters. Clock paths are responsible for maintaining synchronization and timing consistency throughout the design. Analyzing clock paths helps us understand and mitigate clock-related timing issues.
Clock Gating Paths
Clock gating paths are a special type of path where the clock signal passes through a gated element. These paths vary from regular clock paths, as they involve the gating of the clock signal, which provides power-saving benefits. Analyzing clock gating paths enables us to optimize power consumption and ensure the proper functioning of clock gating circuitry.
Asynchronous Paths
Asynchronous paths arise when data is transferred between different clock domains or when an input port is connected to an asynchronous set or clear pin of a sequential element. Analyzing asynchronous paths is essential for understanding and addressing timing anomalies that can occur at the interface of asynchronous components.
To effectively perform timing analysis, we need to determine the start and end points of each timing path and comprehend the nuances specific to each path type. By doing so, we can identify and resolve timing violations, ensuring the design’s proper functionality and meeting timing requirements.
How STA Works
In static timing analysis (STA), we break down a design into timing paths to analyze and validate its timing performance. In this section, we will explore how STA works and the key components involved.
Timing Paths
Timing paths are a fundamental concept in STA. They represent the paths that signals traverse within a design, such as data paths, clock paths, and clock gating paths. By examining timing paths, we can assess the delays and interactions that affect the overall timing behavior of the design.
Delay Calculation
To determine the timing characteristics of a design, we calculate the delay along each timing path. This involves analyzing the delays introduced by logic gates and the interconnections between them. The delay calculation accounts for both the cell delay, which is the delay from the input to the output of a logic gate, and the net delay, which arises from the interconnections between cells.
Timing Constraints and Violations
Timing constraints are an integral part of STA. These constraints define the required timing specifications for the design, such as setup and hold requirements. During the analysis, we compare the delays along the timing paths against these constraints to identify any timing violations. Timing violations occur when the timing requirements are not satisfied, indicating potential issues that may affect the functionality and performance of the design.
STA Tool Analysis
To perform the analysis efficiently, we utilize specialized STA tools. These tools analyze the timing paths in the design, examining the delays and comparing them against the defined timing constraints. By evaluating all the paths from start points to end points, the STA tool provides insights into potential timing violations and helps us optimize the design to ensure proper timing behavior.
Now that we have understood the basics of how STA works, let’s delve deeper into specific types of timing paths and their implications in the subsequent sections.
Timing Paths in Clock Paths
In the world of static timing analysis (STA), clock paths play a crucial role in ensuring the proper functioning of integrated circuits. Clock paths are the routes through which the clock signal propagates, delivering the synchronized timing necessary for the seamless operation of sequential elements.
At its core, a clock path comprises the clock input port or cell pin, buffers or inverters that amplify or invert the clock signal, and finally, the clock pin of a sequential element where the clock signal is received. It is along these clock paths that the timing of the sequential elements is determined.
The delay along a clock path is calculated by considering the individual delays introduced by the clock inverters and buffers. These elements are responsible for shaping the clock signal and ensuring that it arrives at sequential elements within the specified time frame. By accurately measuring the delays, we can determine the maximum and minimum delay of the clock signal, which is crucial for setup and hold checks.
Setup and hold checks verify that the data is properly captured by the sequential elements during each clock cycle. By understanding the timing paths within the clock paths, we can ensure that the proper data capture occurs and avoid timing violations that could compromise the overall functionality of the design.
Optimizing Clock Paths with Clock Inverters and Buffers
One of the key considerations in optimizing clock paths is the careful placement of clock inverters and buffers. These components are strategically inserted along the clock paths to control and shape the clock signal, mitigating issues such as skew and jitter that can negatively impact the reliability and performance of a design.
Clock inverters, as the name suggests, invert the clock signal, allowing for fine-tuning of the clock path delay. By strategically placing clock inverters, we can balance the delays and ensure proper timing across the design.
On the other hand, clock buffers amplify the clock signal, enhancing its strength and stability as it propagates along the clock path. These buffers help overcome parasitic effects, such as capacitive loading, that can cause delays and distortions in the clock signal.
By optimizing the placement of clock inverters and buffers, we can minimize the clock path delay and achieve tighter control over the timing of sequential elements. This optimization enhances the overall performance and reliability of the design.
Clock Paths and Sequential Element Synchronization
Sequential elements, such as flip-flops and registers, rely on the clock signal to operate synchronously. Clock paths play a critical role in ensuring that the data presented to these sequential elements is captured reliably and at the right time.
During the process of static timing analysis, we analyze the clock paths to identify any timing violations that could occur due to the delay of the clock signal. By accurately calculating and optimizing the clock path delay, we can ensure that the setup and hold requirements of sequential elements are met, preventing potential data corruption or loss.
Understanding the intricacies of clock paths is essential for designing robust and efficient integrated circuits. By carefully analyzing and optimizing these timing paths, we can guarantee the accurate and reliable synchronization of sequential elements and maintain the integrity of the entire chip design.
Timing Paths in Data Paths
Data paths in Static Timing Analysis (STA) play a critical role in chip design by launching data from an input port, traversing through combinational logic, and ultimately being captured at an output port or the data input of a sequential element such as a register. These data paths are essential for the proper functioning and timing performance of the design.

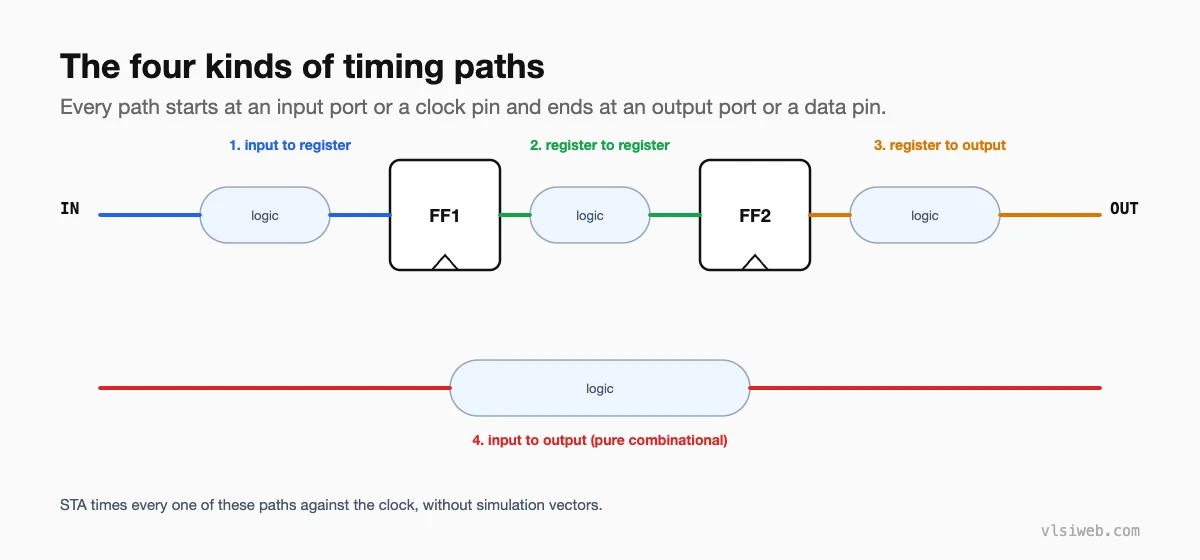

When analyzing data paths, it is important to consider the different types based on their start and end points. Let’s explore some of these types:
1. Input to Register Paths
In this type of data path, data is launched from an input port and captured at the data input of a register. It involves traversing through combinational logic before reaching the register. Timing analysis of this path is crucial to ensure that data reaches the register before the next clock edge arrives.
2. Input to Output Paths
Data paths from an input port to an output port are essential for transferring data within the design. It is important to analyze the timing characteristics of these paths to ensure that data reaches the output port within the required timing constraints.
3. Register to Register Paths
Register-to-register data paths involve the transfer of data from one register to another through combinational logic. Analyzing the timing performance of these paths is crucial to ensure proper data transfer between registers and to avoid any setup or hold violations.
4. Register to Output Paths
In this type of data path, data is launched from a register and captured at an output port. Analyzing the timing characteristics of these paths is essential to ensure that data is available at the register’s output when needed and meets the required timing requirements.
Understanding the different types of data paths is vital for identifying and resolving timing violations in a design. By properly analyzing and optimizing these paths, designers can achieve efficient chip designs with excellent performance and reliability.
| Data Path Type | Description |
|---|---|
| Input to Register | Data launched from an input port and captured at the data input of a register. |
| Input to Output | Data transferred from an input port to an output port. |
| Register to Register | Data transfer between two registers through combinational logic. |
| Register to Output | Data launched from a register and captured at an output port. |
Timing Paths in Clock Gating Paths
In chip design, clock gating paths play a crucial role in optimizing power consumption and ensuring proper clock gating functionality. These paths involve the gating of the clock signal, allowing for added advantages such as power saving. Clock gating paths have their own considerations for setup and hold checks, making them different from regular clock paths and data paths.
When examining clock gating paths, it’s essential to understand their unique start and end points. These paths begin at an input port of the design, where the clock signal is initially received. From there, the clock gating path extends to the input port of a clock-gating element, which controls the gating of the clock signal.
Setup and hold checks for clock gating paths are tailored to the specific requirements of these paths. Designers must carefully evaluate the timing constraints to ensure that the clock signal is properly gated and reaches the intended destination within the specified timing window.
Compared to other types of timing paths, clock gating paths offer distinct challenges and considerations. They involve the gating of the clock signal, which adds an additional layer of complexity to the timing analysis process. Understanding the intricacies of clock gating paths is crucial for optimizing power consumption and designing efficient clock gating circuits.
By examining the timing paths in clock gating circuits, designers can gain valuable insights into power optimization opportunities and ensure the reliable functionality of clock gating elements. The analysis of clock gating paths is an important aspect of static timing analysis that contributes to the overall success of chip design.
Conclusion
In conclusion, understanding the different types of timing paths is crucial for successful static timing analysis (STA) in chip design. By thoroughly analyzing timing paths, calculating delays, and checking for timing violations, we can ensure that our designs meet their timing requirements and function correctly.
Timing paths encompass data paths, clock paths, clock gating paths, and asynchronous paths, each with their own characteristics and considerations. By properly analyzing and optimizing these timing paths, we can achieve efficient chip designs with excellent performance and reliability.
Static timing analysis is an essential part of chip design, as it helps us identify and fix timing violations that could lead to improper functionality or failure of the design. By understanding timing paths and employing STA techniques, we can ensure the successful implementation of our chip designs and meet the stringent timing constraints of modern electronic systems.
