What is electromigration (EM), and how does it affect design?

Raju GorlaBy Raju Gorla24 December 2024No Comments9 Mins Read
Electromigration in PD
Share
Facebook Twitter LinkedIn Email Telegram WhatsApp

Electromigration (EM) is a key issue in modern electronics. It affects the reliability and performance of integrated circuits (ICs). This happens when electrons move through metal paths, causing atoms to shift. This can lead to serious failures in devices.

The need to understand and fight electromigration grows as technology advances. It’s vital for keeping electronic devices working well for a long time. Designers must pay close attention to this to ensure devices last and function as expected.

We’ll look into what electromigration is and how it works. We’ll also talk about its big impact on semiconductor reliability. And we’ll cover important design tips to handle EM’s challenges. This will help keep integrated circuits stable and effective over time.

Table of Contents

  • Understanding the Fundamentals of Electromigration
    • Physical Mechanisms Behind EM
    • Key Factors Influencing Electromigration
    • Temperature and Current Density Effects
  • The Impact of Electromigration on Semiconductor Reliability
  • Electromigration in PD: Critical Considerations for Design
    • Current Density Limitations
    • Material Selection Guidelines
    • Layout Optimization Strategies
  • Common Failure Mechanisms Caused by Electromigration
  • Prevention Strategies and Design Guidelines
    • Layout Best Practices
    • Current Density Management
    • Temperature Control Methods
  • Testing and Verification Methods for EM Reliability
    • Accelerated Life Testing
    • EM Models and Simulation Tools
    • Reliability Analysis
  • Future Trends in Electromigration Management

Understanding the Fundamentals of Electromigration

Electromigration (EM) is a key issue for electronic devices’ reliability and performance. We’ll look into what causes EM, the main factors that affect it, and how temperature and current density interact.

Physical Mechanisms Behind EM

At the atomic level, EM happens because of electron flow. This flow can move atoms in metal interconnects. This movement, called atomic drift, is due to electrons hitting atoms and pushing them out of place.

This can create voids and hillocks. These can cause circuit failure.

Key Factors Influencing Electromigration

  • Electron flow: The movement of electrons through the metal interconnects is a crucial factor in EM, as it drives the atomic transport.
  • Joule heating: The heat generated by the electrical resistance of the interconnects, known as Joule heating, can exacerbate the EM process by increasing atomic mobility.
  • Activation energy: The energy required to initiate the EM process, known as the activation energy, is a critical parameter that determines the rate of atomic transport.

Temperature and Current Density Effects

Black’s equation explains how temperature, current density, and EM are connected. It shows that the mean time to failure (MTTF) of a metal interconnect depends on current density and temperature. Knowing this helps in making reliable electronic devices.

Parameter Effect on Electromigration
Temperature Increased temperature accelerates atomic mobility and the EM process, leading to a higher failure rate.
Current Density Higher current densities increase the momentum transfer between electrons and atoms, exacerbating the EM phenomenon.

Understanding EM’s basics and key factors helps us tackle its challenges. We can then work on strategies to improve semiconductor reliability.

The Impact of Electromigration on Semiconductor Reliability

Electromigration (EM) is a big worry in the world of semiconductors. It can really hurt how long and well electronic circuits work. When EM happens, it slowly makes interconnects worse, leading to circuit failure. It’s key to know how EM affects reliability to make devices that last longer.

EM mainly affects how long a circuit lasts. As it goes on, it can cause interconnects to fail, leading to open or short circuits. This can make devices fail early, cutting down their mean time to failure (MTTF). It’s important to think about EM when designing to make sure devices can handle their job and last as long as expected.

Also, EM can make circuits perform worse, which is bad for reliability. As interconnects get more prone to EM, circuits might not work as well. This can cause problems like bad signal quality, more power use, and slower speeds. These issues can make the semiconductor device less useful, making EM a big deal for keeping systems reliable.

Reliability Parameter Impact of Electromigration
Circuit Lifespan Reduced due to interconnect failure
Performance Degradation Increased power consumption, reduced speed, and signal integrity issues
Mean Time to Failure (MTTF) Decreased as a result of EM-induced failures

To tackle EM challenges, designers need a solid plan that includes ways to fight EM. This might mean making circuit layouts better, picking the right materials, and using cooling methods to lessen EM’s effects. By tackling EM head-on, designers can make sure their semiconductor products stay reliable and perform well over time.

circuit lifespan

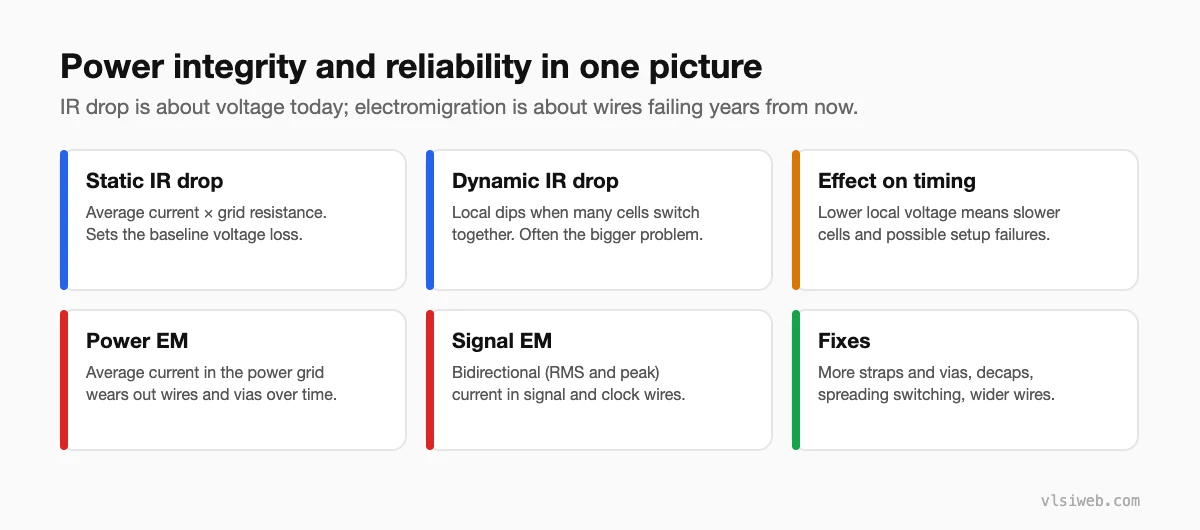

Electromigration in PD: Critical Considerations for Design

In the world of physical design (PD), electromigration (EM) is key. It affects how our designs work and last. EM moves metal atoms because of electron flow, impacting our interconnects’ reliability and performance.

Current Density Limitations

Managing current density in our interconnects is vital in PD. Higher current densities increase EM risks. By sizing our interconnects right, we can reduce these risks and ensure our designs last.

Material Selection Guidelines

The materials we choose for our interconnects matter a lot. Copper is popular because it conducts well but is prone to EM failures. Adding barrier layers and alloying elements can make copper interconnects more reliable.

Layout Optimization Strategies

How we lay out our interconnects affects EM risks. Smart placement of vias and resistance gradient management can help. This ensures even current flow and avoids hotspots that can cause failures.

By focusing on these PD aspects, we can tackle EM challenges. This leads to reliable, high-performance semiconductor devices that meet today’s tech needs.

interconnect sizing

Common Failure Mechanisms Caused by Electromigration

Electromigration (EM) is a big worry in the world of semiconductors. It can cause many failures that hurt the reliability and performance of electronic devices. We will look at the main failure mechanisms caused by EM, like void formation and hillock growth, and how they affect circuit integrity.

One major problem with EM is the creation of voids in metal interconnects. These voids happen when metal atoms move away, making the electrical resistivity go up. As voids get bigger, they can cause open circuits, leading to device failure.

Another issue with EM is hillock growth. Hillocks are bumps on the metal interconnects that form from metal atom buildup. These hillocks can cause short circuits, leading to bad electrical connections and possible damage to the device.

Failure Mechanism Impact on Circuit Potential Consequences
Void formation Increased resistivity, open circuits Complete device failure
Hillock growth Short circuits Unwanted electrical connections, device damage

The effects of EM failures get worse over time, with resistivity going up. This can lead to open or short circuits. It’s important to catch and stop these failures early to keep electronic devices working well for a long time.

Prevention Strategies and Design Guidelines

To fight electromigration (EM) in integrated circuits, we need to act early. We’ll look at ways to stop EM failures in your projects. This includes the best layout practices, managing current density, and keeping temperatures low.

Layout Best Practices

Good layout design is key to avoiding EM. Use redundant vias to offer extra paths for current and avoid crowding. Also, widen wires to make them bigger, which helps spread out current. Plus, add heat sinks and use thermal solutions to keep things cool.

Current Density Management

Keeping current density right is vital to avoid EM failures. Look at your design to find spots with too much current. Then, change the layout, use bigger wires, or add more vias to spread out the current.

Temperature Control Methods

Temperature plays a big role in EM, as high temps speed up metal atom movement. Use heat sinks, improve airflow, or add cooling solutions to keep your design cool. This helps prevent EM issues.

By using these strategies and guidelines, you can lower the chance of EM failures in your circuits. A proactive approach to EM is crucial for your circuits’ long-term reliability and performance.

Layout Best Practices Current Density Management Temperature Control Methods
  • Incorporate redundant vias
  • Employ wire widening techniques
  • Strategically place heat sinks
  • Analyze design for high current density areas
  • Adjust layout to distribute current evenly
  • Use wider interconnects to reduce density
  • Implement effective thermal management
  • Utilize heat sinks for heat dissipation
  • Improve airflow and cooling solutions

Testing and Verification Methods for EM Reliability

Ensuring the long-term reliability of integrated circuits is crucial. Understanding electromigration (EM) is essential in this process. We’ll explore the various testing and verification methods used to assess EM reliability, from accelerated life testing to simulation-based approaches.

Accelerated Life Testing

One of the primary methods for evaluating EM reliability is accelerated life testing (ALT). This technique involves subjecting test structures to elevated temperature and current conditions to rapidly induce EM failures. By analyzing the failure data obtained from these tests, we can extrapolate the expected lifespan of the interconnects under normal operating conditions.

EM Models and Simulation Tools

In addition to physical testing, advancements in EM modeling and simulation tools have become crucial for reliability analysis. These EM models and simulation tools allow us to predict the behavior of interconnects under various operating conditions, including temperature and current density. By running virtual experiments, we can identify potential EM-related failure points and optimize the design accordingly.

Reliability Analysis

Comprehensive reliability analysis is the final step in ensuring EM reliability. This involves combining the insights gained from accelerated life testing, EM modeling, and simulation tools to develop a thorough understanding of the EM-related failure mechanisms and their impact on the overall circuit reliability. This holistic approach enables us to make informed design decisions and minimize the risk of EM-induced failures.

Testing Method Advantages Limitations
Accelerated Life Testing (ALT)
  • Rapidly induces EM failures
  • Provides failure data for reliability extrapolation
  • Potential differences between test and real-world conditions
  • Time-consuming and resource-intensive
EM Modeling and Simulation
  • Enables virtual testing and optimization
  • Provides insights into EM behavior under various conditions
  • Accuracy depends on the fidelity of the EM models
  • Requires specialized expertise and computational resources
Reliability Analysis
  • Integrates test data and simulation insights
  • Enables comprehensive understanding of EM-related failures
  • Complexity increases with system scale and interconnect density
  • Requires cross-functional expertise in design, modeling, and testing

By leveraging a combination of accelerated life testing, EM models, simulation tools, and comprehensive reliability analysis, we can effectively assess and mitigate the impact of electromigration on the long-term reliability of integrated circuits.

Future Trends in Electromigration Management

The semiconductor industry is set for exciting changes in managing electromigration (EM) challenges. New materials, like advanced barrier and capping layers, will boost EM resistance in interconnects. Also, 3D integration, including through-silicon vias (TSVs) and die stacking, will need new solutions to tackle EM issues in complex structures.

Artificial intelligence (AI) and machine learning will bring AI-driven design approaches. These will optimize circuit layouts and interconnect routing to reduce EM failures. Smart design tools will analyze data, find EM hotspots, and suggest layout changes for better reliability.

Self-healing interconnects are also on the horizon, promising a big leap in EM management. These materials and structures can detect and fix EM-induced defects on their own. This will greatly improve the long-term reliability of integrated circuits. As we advance in semiconductor technology, these innovations will be key to reliable electronic devices.
