VHDL Interview Questions for VLSI Interviews

I’ve compiled 35 VHDL interview questions from synthesis, design, and verification roles over the past 15 years. If you’re interviewing for an RTL design role, a FPGA position, or a verification engineer spot at companies like Xilinx, Intel, Altera, Microsemi, or in-house ASIC teams, you’ll see variations of almost every question here. The key is understanding that VHDL is intentionally verbose—it forces you to be explicit about intent, which is both a strength and a pain point.

Quick Navigation

• Section 1: VHDL Basics (Q1–Q10)
• Section 2: Concurrent & Sequential Statements (Q11–Q20)
• Section 3: RTL Design in VHDL (Q21–Q28)
• Section 4: Advanced VHDL (Q29–Q35)
• Most-Asked Topics by Company

Section 1: VHDL Basics (Q1–Q10)

Q1. VHDL vs Verilog—which should I learn? Key differences?

Both synthesize to the same logic. VHDL is more verbose (type-safe, more explicit), Verilog is terser (C-like, faster to write). In my experience: if you’re in Europe or defense, VHDL dominates. If you’re in US tech, Verilog/SystemVerilog are more common. For interviews, knowing both is ideal; if forced to choose, Verilog is more marketable. Here’s a comparison:

Aspect	VHDL	Verilog
Type System	Strong (enforced)	Weak (implicit)
Testbench	Native, elegant	SystemVerilog needed
Syntax	Verbose (Ada-like)	Concise (C-like)
Adoption	Europe, defense	US, commercial

Q2. Entity and architecture—the fundamental VHDL design unit

An entity declares the interface (ports: in/out/inout, with types). An architecture implements the entity (contains the logic: processes, concurrent statements, component instantiations). One entity can have multiple architectures (behavioral, structural, etc.). This separation is unique to VHDL and forces good interface design.

Q3. What is std_logic vs std_ulogic vs bit?

bit is the most basic type: 0 or 1. std_ulogic (unresolved) adds 9 values: U (uninitialized), X (unknown), 0, 1, Z (high-impedance), W (weak unknown), L/H (weak 0/1), – (don’t care). std_logic resolves multiple drivers via a resolution function (for tri-state busses). For synthesis, all three work, but std_logic is the standard for RTL because it’s more informative in simulation and prevents accidental unresolved signals.

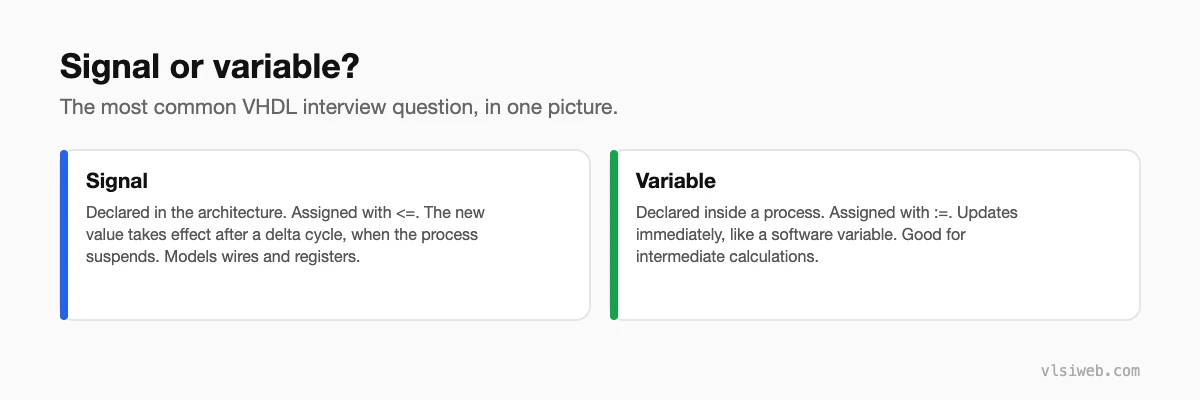

Q4. Signal vs variable—the most important VHDL concept

Signals represent wires/registers; they update after the process finishes (delta cycle delay). Variables are local to processes; they update immediately. Here’s the critical difference:

-- Process with SIGNAL (wire-like behavior):
process(clk) begin
  if rising_edge(clk) then
    sig <= sig + 1;  -- reads old value of sig, updates after process ends
  end if;
end process;
-- Result: sig increases by 1 each clock

-- Process with VARIABLE (immediate update):
process(clk) begin
  if rising_edge(clk) then
    var := var + 1;  -- reads current (updated) value of var
    var := var + 1;  -- reads updated var (increment twice in one cycle)
  end if;
end process;
-- Result: var increases by 2 each clock

Signals are for synthesizable RTL; variables are for local computation. Mixing them wrong causes synthesis mismatch (code works in sim, fails after synthesis).

Q5. IEEE libraries—what does each provide?

std_logic_1164: Defines std_logic, std_ulogic, logic vectors, logic tables. numeric_std: Provides signed/unsigned types with arithmetic operations (modern standard). std_logic_arith: Older library with similar functionality (avoid, use numeric_std instead). Always use `use ieee.numeric_std.all;` in modern VHDL.

Q6. Concurrent signal assignment vs process (sensitivity list)

Concurrent: output <= input when condition else default; is always active, no sensitivity list needed. Process: must have sensitivity list (clk, reset, inputs), executes when any listed signal changes. Concurrent is clearer for combinational logic; process is necessary for sequential/clocked logic.

Q7. VHDL editions—VHDL-93 vs VHDL-2008 key improvements

VHDL-93 was the baseline for most synthesis. VHDL-2008 added: unconstrained port widths (no need to match exactly), `process(all)` (auto-sensitivity), better `case` statements, functions in generate statements. Most tools support VHDL-2008, but legacy designs use VHDL-93.

Q8. Component declaration and instantiation

A component mimics an entity's interface, allowing you to instantiate sub-designs. You declare the component, then instantiate with port maps. Direct entity instantiation (VHDL-2002+) is simpler: just instantiate the entity directly without declaring a component first.

Q9. Generic map and port map—parameterized modules

Generics are parameters (widths, constants). Port map connects signals to ports. Example: `generic map (WIDTH => 32)` sets WIDTH parameter; `port map (clk => sys_clk, ...)` connects ports.

Q10. Package and package body

Package declares interfaces (types, functions, constants). Package body defines function implementations. You can share custom types and helper functions across modules via packages.

Section 2: Concurrent & Sequential Statements (Q11–Q20)

Q11. when-else vs with-select-when—what's the difference?

when-else is a priority encoder (top condition wins). with-select-when is a multiplexer (all choices must be covered, each value once).

-- when-else: priority (if multiple conditions true, first wins)
output <= a when (sel = "00") else
          b when (sel = "01") else
          c when (sel = "10") else
          d;  -- default

-- with-select-when: mux (all choices covered, 'others' optional)
with sel select
  output <= a when "00",
            b when "01",
            c when "10",
            d when others;

Q12. Process sensitivity list—what belongs in it?

List all signals you read in the process (not ones you write). Missing a signal causes incomplete sensitivity, which works in simulation but may fail after synthesis or in RTL simulation with optimizations enabled.

Q13. Wait statement variants

wait on signal; pauses until signal changes. wait until condition; pauses until condition is true. wait for time; pauses for time (simulation-only, doesn't synthesize). Most synthesizable code avoids wait; use clk sensitivity instead.

Q14. If-elsif-else in a process vs when-else concurrently

Functionally equivalent for combinational logic. Process form synthesizes to the same mux as when-else. Process is better for sequential (clocked) logic; when-else is better for simple combinational.

Q15. Case statement—handling "others" branch

case sel is when "00" => ... when others => ... catches any unspecified values. Synthesis prefers exhaustive cases with others to avoid latches.

Q16. Loop statement—for loop, while loop, next, exit

for i in 0 to N-1 loop unrolls N iterations at compile time (used for generate-like loops, width expansion). while is rarely used in synthesizable code. next skips to next iteration; exit breaks out of loop.

Q17. Delta cycles—what are they and why do they matter?

A delta cycle is an infinitesimal time step where signals update after a process. Simulation uses delta cycles to resolve signal dependencies without advancing time. Example: if process A updates signal X, and process B is sensitive to X, process B executes in the next delta cycle. Understanding delta cycles helps debug sim-vs-synth mismatches.

Q18. Inertial vs transport delay

Inertial: signal <= value after 10 ns; (default) rejects pulses shorter than 10 ns. Transport: signal <= transport value after 10 ns; (all pulses pass). Synthesis ignores both; they're simulation-only.

Q19. Assert statement in VHDL

assert condition report "message" severity error; fails the simulation if condition is false. Synthesis ignores asserts. Use them extensively in testbenches for self-checking.

Q20. VHDL attributes—'event, 'stable, 'last_value, 'range, 'length

signal'event is true if signal just changed (used in `if rising_edge(clk) then`). 'stable(time) is true if signal unchanged for time. 'last_value is the previous value. 'range returns vector bounds. 'length returns vector width.

Section 3: RTL Design in VHDL (Q21–Q28)

Q21. How do you code a synchronous D flip-flop with async reset?

process(clk, rst_n) begin
  if rst_n = '0' then
    q <= '0';
  elsif rising_edge(clk) then
    q <= d;
  end if;
end process;

Key: reset is asynchronous (checked first, outside the rising_edge check), so it takes priority. Always use asynchronous active-low reset in synthesis; avoid synchronous resets (they can cause issues with initialization).

Q22. How do you code an FSM in VHDL? 2-process vs 3-process style?

2-process: one process for state transitions (clocked), one for outputs (combinational). 3-process: separate clocked state register, combinational next-state logic, combinational outputs. 2-process is simpler; 3-process is more modular.

-- 2-process FSM
type state_t is (IDLE, READ, WRITE);
signal state : state_t := IDLE;

process(clk, rst_n) begin
  if rst_n = '0' then state <= IDLE;
  elsif rising_edge(clk) then
    case state is
      when IDLE => if start then state <= READ; end if;
      when READ => state <= WRITE;
      when WRITE => state <= IDLE;
    end case;
  end if;
end process;

process(state) begin
  output <= '0';
  case state is
    when IDLE => output <= '0';
    when READ => output <= '1';
    when WRITE => output <= '0';
  end case;
end process;

Q23. How do you write a parameterized counter?

entity counter is
  generic (WIDTH : positive := 8);
  port (clk, rst_n : in std_logic;
        q : out std_logic_vector(WIDTH-1 downto 0));
end entity;

architecture rtl of counter is
  signal count : unsigned(WIDTH-1 downto 0) := (others => '0');
begin
  process(clk, rst_n) begin
    if rst_n = '0' then count <= (others => '0');
    elsif rising_edge(clk) then
      count <= count + 1;
    end if;
  end process;
  q <= std_logic_vector(count);
end architecture;

Q24. What are VHDL records? When are they synthesizable?

Records are bundles of fields (like structs in C). They're synthesizable if fields are synthesizable types (std_logic, integers with defined ranges). Use them to group related signals (e.g., AXI request bundle).

Q25. Arrays in VHDL—constrained vs unconstrained, 2D arrays

Constrained: `signal mem : std_logic_vector(7 downto 0);` (fixed width). Unconstrained: `function(x : std_logic_vector) return std_logic_vector;` (parameter can be any width). 2D arrays: `signal ram : mem_array(0 to 127, 7 downto 0);` (128 words × 8 bits).

Q26. Generate statement—for-generate and if-generate

-- for-generate: instantiate WIDTH copies of a module
gen_bits: for i in 0 to WIDTH-1 generate
  bit_slice: full_adder port map (
    a => a(i), b => b(i), cin => carry(i),
    sum => sum(i), cout => carry(i+1)
  );
end generate;

-- if-generate: conditionally instantiate
gen_fifo: if DEPTH > 0 generate
  fifo_inst: fifo generic map (WIDTH => WIDTH) port map (...);
end generate;

Q27. How do you implement a FIFO in VHDL?

Use a circular buffer (array + read/write pointers). Full condition: next_write_ptr == read_ptr. Empty condition: write_ptr == read_ptr. Clock read and write pointers separately; synchronize across clock domains if needed (Gray counter).

Q28. How do you instantiate Verilog inside VHDL (mixed-language)?

Wrap Verilog module in a VHDL component (declare interface), then instantiate. Tool flow handles the linking (Synopsys, Vivado support this). Careful with type mismatches (Verilog is weakly-typed).

Section 4: Advanced VHDL (Q29–Q35)

Q29. VHDL-2008 improvements—unconstrained ports, process(all), enhanced case

process(all) auto-includes all reads (safer, less prone to forgot sensitivity). Unconstrained port widths: `port (x : in std_logic_vector)` (no need to match caller exactly). Enhanced case: `case x is when 1 to 10 => ...` (ranges allowed).

Q30. Protected types in VHDL-2008—what problem do they solve?

Protected types encapsulate state and methods (like OOP classes). They're useful for complex testbenches (scoreboard, constraint objects) but not synthesizable. Example: a FIFO checker that maintains internal state without exposing details.

Q31. File I/O in VHDL testbenches

use ieee.std_logic_textio.all;
use std.textio.all;

process begin
  variable f : text open write_mode is "output.txt";
  variable line_buf : line;
  write(line_buf, string'("Test result: "));
  write(line_buf, signal_value);
  writeline(f, line_buf);
  file_close(f);
  wait;
end process;

Q32. Textio library—printf-style debugging

textio.write() outputs to text files or console. Combine with std_logic_textio for std_logic values. Use in testbenches for logging, waveform-free debugging.

Q33. Configuration declarations

Config maps entity/architecture pairs for simulation. Useful to swap implementations (behavioral vs RTL) without recompiling. Ignored in synthesis. Rarely used in practice.

Q34. How do you write a self-checking testbench?

Compute expected output, compare to actual, assert equality. Use generics to parameterize test vectors. Use `severity error` or `failure` to stop simulation on mismatch. This is the gold standard for verification.

Q35. VHDL vs Verilog for a senior interview—which is asked more?

Honestly: Verilog/SystemVerilog in US/Asia, VHDL in Europe/defense. If interviewing for a large US tech company (Intel, AMD, Xilinx), expect Verilog. If interviewing for Airbus, Thales, Rolls-Royce, VHDL is standard. Both are equally valid; knowing one deeply and understanding the other is ideal.

Most-Asked Topics by Company

Company	Focus Areas
Xilinx, Intel, Altera	FPGA synthesis, parameterized designs, testbenches, VHDL-2008
Airbus, Thales, Rolls-Royce	Standards compliance, self-checking tests, formal verification readiness
AMD, Intel, Broadcom (ASIC)	Verilog-first, but VHDL understanding respected. Focus on RTL quality.
Microsemi, Lattice	FPGA design, IP integration, mixed-language projects

Resources & Further Reading

• Standards: IEEE 1076 (VHDL-2008 is the latest, 2019 amendment in progress)
• Books: "VHDL Cookbook" (Ashenden), "RTL Hardware Design Using VHDL" (Yalamanchili)
• Tools: ModelSim, GHDL (free), Vivado, Quartus
• Practice: Write FSMs, counters, FIFOs. Simulate, synth, and validate RTL vs post-synth behavior.
• Interview Prep: Code a simple state machine on the board, explain signal vs variable behavior, draw timing diagrams for clocked logic.

Last updated: 2026. VHDL is mature and stable. The focus in modern interviews is less on syntax and more on understanding synthesizable vs non-synthesizable constructs, testbench methodology, and debug skills.
