Top 100 Digital Electronics Interview Questions

I’ve pulled together 40 digital electronics interview questions spanning logic gates, combinational/sequential circuits, memory systems, and logic families. These questions show up across semiconductor companies — from interviews at Qualcomm’s logic design team to board-level firmware engineers at networking startups. The questions bridge theoretical understanding (why does a latch hold state?) with practical silicon reality (how do you size transistors for speed vs. power?).

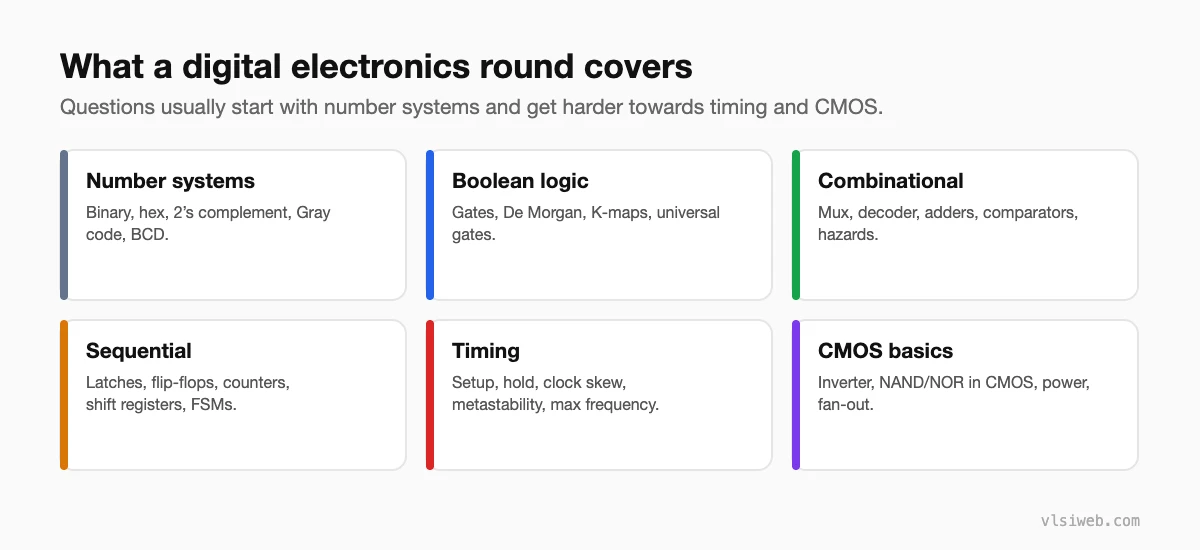

Quick Navigation

• Section 1: Logic Gates & Boolean Algebra (Q1–Q10)
• Section 2: Combinational Circuits (Q11–Q20)
• Section 3: Sequential Circuits (Q21–Q30)
• Section 4: Memory, Arithmetic, Logic Families (Q31–Q40)
• Core Concepts Cheatsheet

Section 1: Logic Gates & Boolean Algebra (Q1–Q10)

Q1. De Morgan’s Theorem — What Is It, and Why Does It Matter in Gate Design?

Direct answer: De Morgan’s theorem states: NOT(A AND B) = (NOT A) OR (NOT B), and NOT(A OR B) = (NOT A) AND (NOT B). This is fundamental for converting between AND-OR and NAND-NOR logic.

In real silicon, this matters because NAND gates are often smaller and faster than AND gates (especially in CMOS, where NAND is a basic pull-down stack). De Morgan lets you rewrite a design to use NAND/NOR instead of AND/OR, saving area and improving timing. I’ve seen entire designs restructured just to reduce NAND gate count.

Truth Table Proof:
A | B | A AND B | NOT(A AND B) | NOT A | NOT B | (NOT A) OR (NOT B)
--|---|---------|--------------|-------|-------|-------------------
0 | 0 |    0    |      1       |   1   |   1   |        1
0 | 1 |    0    |      1       |   1   |   0   |        1
1 | 0 |    0    |      1       |   0   |   1   |        1
1 | 1 |    1    |      0       |   0   |   0   |        0
         (same)

Boolean Algebra:
NOT(A AND B) = (NOT A) OR (NOT B)
NOT(A OR B) = (NOT A) AND (NOT B)

Gate Design Impact:
Original:  Y = NOT(A AND B)      (NOT gate + AND gate = 2 gates)
Optimized: Y = (NOT A) OR (NOT B)  (2 NOT gates + 1 OR gate = 3 gates)
In NAND logic: Y = NAND(A, B)    (1 NAND gate, cheaper!)

Q2. Universal Gates — Implement AND, OR, NOT Using Only NAND Gates

Direct answer: All three functions can be built from NAND gates because NAND is “universal” (any combinational logic can be realized using only NAND). NOT is NAND with one input tied high; AND is NAND followed by NOT.

This is more than academic: historically, NAND gates were cheaper and faster, so designers often built everything from NAND cells. Modern PDKs offer both, but understanding this shows you grasp gate-level optimization.

NOT gate from NAND:
  A ----+
        |
        NAND ---- Y
        |
  A ----+
  (Both inputs same, so Y = NOT A)

AND gate from NAND:
  A ----+
        | NAND ----+
  B ----+          |
                   NAND ---- Y
                   |
                1 -+
  (NAND output inverted by NOT = AND)

OR gate from NAND (using De Morgan):
  NOT(A AND B) = (NOT A) OR (NOT B)
  So: OR = NAND( NOT(A), NOT(B) )

  A ----+
        | NAND ----+
  A ----+          |
                   | NAND ---- Y
  B ----+          |
        | NAND ----+
  B ----+

Q3. Karnaugh Map Simplification — Reduce a 4-Variable Function

Direct answer: A Karnaugh map (K-map) is a visual way to group adjacent 1s and 0s, reducing Boolean expressions. Group 1s in powers of 2 (2, 4, 8, 16), each group eliminating one variable.

Here’s a 4-variable example. Suppose we have minterms {0, 1, 4, 5, 12, 13, 14, 15}:

     AB
     00  01  11  10
CD +----+----+----+----+
00 | 1  | 1  | 0  | 0  |  Minterms 0, 1
   +----+----+----+----+
01 | 1  | 1  | 0  | 0  |  Minterms 4, 5
   +----+----+----+----+
11 | 1  | 1  | 1  | 1  |  Minterms 12, 13, 14, 15
   +----+----+----+----+
10 | 0  | 0  | 0  | 0  |
   +----+----+----+----+

Group 1 (red): Minterms 0, 1, 4, 5 (top-left 2x2 square)
  In group: A=0 (constant), C=0 (constant), B varies, D varies
  Simplified term: NOT(A) AND NOT(C)

Group 2 (blue): Minterms 12, 13, 14, 15 (bottom-right 2x2 square)
  In group: C=1 (constant), D=1 (constant), A varies, B varies
  Simplified term: C AND D

Final expression: Y = (NOT A AND NOT C) OR (C AND D)
Without K-map: Y = 0̅1̅0̅0̅ + 0̅1̅0̅1̅ + 1̅0̅1̅0̅ + 1̅0̅1̅1̅ + 1̅1̅0̅0̅ + 1̅1̅0̅1̅ + 1̅1̅1̅0̅ + 1̅1̅1̅1̅
                (8 terms!) → (simplified to 2 terms)

Q4. SOP vs. POS Forms — When Is Each Preferred?

Direct answer: SOP (Sum of Products) = ORs of ANDs; POS (Product of Sums) = ANDs of ORs. SOP is preferred for circuits with fewer 1s in the truth table; POS for fewer 0s.

In gate count: if your truth table has 2 ones and 14 zeros, build from the ones using SOP (short expressions). If it has 14 ones and 2 zeros, build from the zeros using POS (fewer terms). Synthesis tools apply both and pick the smaller.

Example: 2-input AND

Truth table:
A | B | Y
--|---|---
0 | 0 | 0
0 | 1 | 0
1 | 0 | 0
1 | 1 | 1

SOP (1 one): Y = A AND B          (1 AND gate)
POS (3 zeros): Y = (A OR 0) AND (B OR 0) AND ... (more complex)

→ SOP is preferred (simpler)

Example: 2-input NOR (opposite case)

Truth table:
A | B | Y
--|---|---
0 | 0 | 1
0 | 1 | 0
1 | 0 | 0
1 | 1 | 0

SOP (1 one): Y = (NOT A) AND (NOT B)   (2 NOTs + 1 AND)
POS (3 zeros): Y = NOT(A OR B)          (1 NOR gate)

→ POS is preferred (1 gate vs. 3)

Q5. XOR Properties and Applications — Why Is It Special?

Direct answer: XOR (A XOR B) is true when inputs differ. Key properties: it’s self-inverse (A XOR A = 0), associative, and commutative. Used in parity checking, comparators, and half-adders.

Practically: XOR is slower than AND/OR (requires more transistors in CMOS), but essential for arithmetic and error detection. A parity bit computed with cascaded XOR gates catches single-bit errors in transmission.

XOR Truth Table:
A | B | A XOR B
--|---|--------
0 | 0 |   0
0 | 1 |   1
1 | 0 |   1
1 | 1 |   0

Key Properties:
A XOR 0 = A           (identity)
A XOR A = 0           (self-inverse)
A XOR NOT(A) = 1      (opposite)
(A XOR B) XOR C = A XOR (B XOR C)  (associative)

Applications:
Parity generator: parity = A XOR B XOR C XOR D  (even parity)
Half adder sum: Sum = A XOR B
Comparator: out = NOT(A XOR B)  (1 if A=B)
Magnitude comparator: (A > B) uses XOR for borrow logic

Q6. Canonical Forms — What Are Minterms and Maxterms?

Direct answer: A minterm is a product (AND) of all variables in true or complemented form, with exactly one minterm true for each input combination. A maxterm is a sum (OR) of all variables. Canonical SOP uses minterms; canonical POS uses maxterms.

More than naming: canonical forms are the “complete” representation before optimization. Any truth table can be written as a sum (OR) of minterms or a product (AND) of maxterms. Simplification reduces these to fewer terms.

3-variable example: A, B, C

Minterms (all variables, AND form):
m0 = NOT(A) AND NOT(B) AND NOT(C)  (ABC=000)
m1 = NOT(A) AND NOT(B) AND C       (ABC=001)
m2 = NOT(A) AND B AND NOT(C)       (ABC=010)
...
m7 = A AND B AND C                 (ABC=111)

Maxterms (all variables, OR form):
M0 = A OR B OR C                   (ABC=000)
M1 = A OR B OR NOT(C)              (ABC=001)
M2 = A OR NOT(B) OR C              (ABC=010)
...
M7 = NOT(A) OR NOT(B) OR NOT(C)    (ABC=111)

Canonical SOP (sum of minterms):
Y = m1 + m3 + m5 + m7  = Σm(1,3,5,7)

Canonical POS (product of maxterms):
Y = M0 · M2 · M4 · M6  = ΠM(0,2,4,6)

Note: SOP minterms are indices where Y=1; POS maxterms are indices where Y=0

Q7. Don’t-Care Conditions in Logic Minimization

Direct answer: A don’t-care (X) is an input combination where the output is undefined (you don’t care). In K-maps, treat don’t-cares as 1 if grouping them reduces gate count, or 0 if it doesn’t.

Real scenario: your circuit receives binary-coded decimal (BCD) inputs. BCD uses only 0–9 (10 values), so inputs 10–15 are impossible. Mark those as don’t-cares, and simplification will leverage them to reduce gates.

BCD-to-Decimal decoder (first 4 outputs):
Input (BCD) | Out0 | Out1 | Out2 | Out3
    0000    |  1   |  0   |  0   |  0
    0001    |  0   |  1   |  0   |  0
    0010    |  0   |  0   |  1   |  0
    0011    |  0   |  0   |  0   |  1
    0100    |  0   |  0   |  0   |  0
    ...
    1010    |  X   |  X   |  X   |  X   (don't-care: impossible input)
    1011    |  X   |  X   |  X   |  X
    ...
    1111    |  X   |  X   |  X   |  X

By treating X as 1 in K-map groupings, you reduce the expression significantly.
Without don't-cares: Out0 = expensive expression
With don't-cares: Out0 = simpler expression

Q8. Hazards in Combinational Logic — Static and Dynamic

Direct answer: A hazard is a transient (glitch) where output changes unexpectedly during transitions. Static hazard: output should stay constant but momentarily flips. Dynamic hazard: output changes multiple times instead of once.

Why it matters: glitches can corrupt state in edge-sensitive circuits or trigger false clock pulses. In clock dividers or counters, a single glitch causes metastability or illegal state transitions. Hazard-free design uses overlapping groups in K-maps or adds consensus logic.

Static-1 Hazard Example:
Y = AB + NOT(A)C
When A transitions 1→0 with B=1, C=1:
  t0: A=1, B=1, C=1 → AB=1, Y=1
  t1: A→0 (transition) → AB falls, but NOT(A)C not yet high → Y glitches to 0
  t2: NOT(A)C=1 → Y returns to 1
  Expected: Y stays 1; Actual: Y=1 → 0 → 1 (glitch!)

Timing diagram:
A:    ‾‾‾|___________
B:    ‾‾‾‾‾‾‾‾‾‾‾‾‾
C:    ‾‾‾‾‾‾‾‾‾‾‾‾‾
AB:   ‾‾‾|_________  (falls when A→0)
~AC:  ___|‾‾‾‾‾‾‾‾  (rises after A→0 transitioning)
Y:    ‾‾‾|_|‾‾‾‾‾   (glitch: momentary 0)

Fix: Add consensus term AC to bridge the gap
Y_fixed = AB + NOT(A)C + BC  (BC is consensus; no glitch)

Q9. Number Systems — Convert 0xAF to Decimal, Binary, BCD

Direct answer: 0xAF is hex. A=10, F=15 in decimal. 0xAF = 10×16 + 15 = 175 (decimal). In binary: 1010_1111. In BCD: 175 = “1” “7” “5” in decimal digits, encoded as 0001_0111_0101.

Interviewers ask this to check your number base fluency. Most people get binary/decimal/hex; BCD trips them up because it’s decimal digits encoded in binary (not pure binary).

0xAF conversion:

Hex to Decimal:
0xAF = A×16^1 + F×16^0 = 10×16 + 15×1 = 160 + 15 = 175

Hex to Binary:
A = 1010, F = 1111
0xAF = 1010_1111

Binary to Decimal verification:
1010_1111 = 128 + 32 + 8 + 4 + 2 + 1 = 175 ✓

Decimal to BCD:
175 in decimal = digits 1, 7, 5
BCD(1) = 0001
BCD(7) = 0111
BCD(5) = 0101
175 in BCD = 0001_0111_0101

Key difference:
Binary 175: 10101111 (efficient, uses 8 bits)
BCD 175: 0001_0111_0101 (12 bits, but each digit is 4-bit decimal)

Q10. Two’s Complement — Represent -25 in 8-Bit, Detect Overflow

Direct answer: Two’s complement: flip all bits, add 1. For -25 in 8-bit: 25 = 0001_1001, flip = 1110_0110, add 1 = 1110_0111. To detect overflow in addition: if both operands are positive and result is negative (or both negative and result is positive), overflow occurred.

This is crucial for signed arithmetic. In an 8-bit signed system, range is -128 to +127. If you add 100 + 50, result is 150, which can’t fit in 8-bit signed (overflows to negative). Overflow detection checks the carry-out of the sign bit.

25 to two's complement (-25) in 8-bit:
Positive 25: 0001_1001
Invert:      1110_0110
Add 1:       1110_0111  = -25 in 8-bit two's complement

Verify: -25 + 25 should = 0
  1110_0111 (+)
  0001_1001 (=)
  ---------
 1 0000_0000  (carry out ignored in signed; result = 0 ✓)

Overflow detection in addition:
A + B, both n-bit signed

Rule: Overflow = (A[n-1] AND B[n-1] AND NOT(Sum[n-1])) OR
                 (NOT(A[n-1]) AND NOT(B[n-1]) AND Sum[n-1])
         (If signs of A, B same but result sign differs, overflow)

Example: 100 + 50 in 8-bit signed:
  0110_0100 (100)
+ 0011_0010 (50)
  ---------
  1001_0110 (146 as unsigned, but -110 as signed!)
  Overflow: both inputs positive, result shows negative (MSB=1)

Section 2: Combinational Circuits (Q11–Q20)

Q11. Full Adder Design — Truth Table, Boolean Expressions, and Gate Implementation

Direct answer: A full adder sums two bits plus a carry-in, producing a sum bit and carry-out. Truth table has 8 rows (3 inputs); sum and carry are expressed as Boolean functions.

The “why” for interviews: a full adder is the building block of larger adders. Understanding its derivation shows you can go from spec → truth table → Boolean → gates → layout. This is the designer’s workflow.

Full Adder Truth Table:
A | B | Cin | Sum | Cout
--|---|-----|-----|-----
0 | 0 |  0  |  0  |  0
0 | 0 |  1  |  1  |  0
0 | 1 |  0  |  1  |  0
0 | 1 |  1  |  0  |  1
1 | 0 |  0  |  1  |  0
1 | 0 |  1  |  0  |  1
1 | 1 |  0  |  0  |  1
1 | 1 |  1  |  1  |  1

Canonical SOP:
Sum = m1 + m2 + m4 + m7
    = NOT(A)NOT(B)Cin + NOT(A)B·NOT(Cin) + A·NOT(B)·NOT(Cin) + ABC
    = (Optimized) A XOR B XOR Cin

Cout = m3 + m5 + m6 + m7
     = NOT(A)B·Cin + A·NOT(B)Cin + AB·NOT(Cin) + ABCin
     = AB + ACin + BCin
     = AB + (A XOR B)Cin

Gate-level implementation:
Sum = (A XOR B) XOR Cin
Cout = AB + (A XOR B)Cin

Circuit diagram:
    A ---+
         | XOR ---+
    B ---+        | XOR --- Sum
              Cin-+

    A ---+
         | AND ----+
    B ---+         | OR --- Cout
         | AND ----+
    Cin--+
  (A XOR B) AND Cin

Q12. Carry-Lookahead Adder vs. Ripple-Carry — Why CLA Is Faster

Direct answer: Ripple-carry: carry propagates sequentially (bit 0 → bit 1 → bit 2…), so delay is O(n). Carry-lookahead: predict carries in advance using generate/propagate signals, reducing delay to O(log n) for 4-bit groups.

Trade-off: CLA is faster but uses more gates (silicon area). For a 32-bit adder in a CPU, CLA (or prefix adders) is mandatory; for a simple 4-bit counter, ripple is fine.

CLA Logic:
Define for each bit position:
  Generate (G_i) = A_i AND B_i       (always produces carry)
  Propagate (P_i) = A_i XOR B_i     (propagates incoming carry)

Then carry signals:
  C0 = carry_in
  C1 = G0 + P0·C0
  C2 = G1 + P1·G0 + P1·P0·C0
  C3 = G2 + P2·G1 + P2·P1·G0 + P2·P1·P0·C0
  C4 = G3 + P3·G2 + P3·P2·G1 + P3·P2·P1·G0 + P3·P2·P1·P0·C0

These are computed in parallel (logic depth ~O(log n)),
avoiding the ripple delay of waiting for each carry sequentially.

Q13. 4:1 Multiplexer — Structural Implementation Using 2:1 Muxes

Direct answer: A 4:1 mux selects 1 of 4 inputs based on 2 select lines. Build it from three 2:1 muxes: two muxes select from the four inputs (based on S0), one mux selects between the two results (based on S1).

This shows you understand hierarchy and don’t just memorize gate-level designs. Larger muxes (8:1, 16:1) scale the same way.

4:1 Mux schematic (S1 S0 = select):
    I0 ----+
    I1 ----|
           | 2:1 Mux (selected by S0) ----+
    I2 ----|                              |
    I3 ----+                              | 2:1 Mux (selected by S1) --- Y
           +                              |
                                          |
                     (or simplified:)   --+

Functional truth table:
S1 | S0 | Output
---|----|---------
0  | 0  | I0
0  | 1  | I1
1  | 0  | I2
1  | 1  | I3

Boolean expression (canonical SOP):
Y = NOT(S1)·NOT(S0)·I0 + NOT(S1)·S0·I1 + S1·NOT(S0)·I2 + S1·S0·I3
  = (NOT(S1)·NOT(S0))·I0 + (NOT(S1)·S0)·I1 + (S1·NOT(S0))·I2 + (S1·S0)·I3

Gate-level (using 2:1 muxes):
Mux1_out = (NOT(S0)·I0) + (S0·I1)
Mux2_out = (NOT(S0)·I2) + (S0·I3)
Y = (NOT(S1)·Mux1_out) + (S1·Mux2_out)

Q14. Decoder vs. Demultiplexer — What’s the Difference?

Direct answer: A decoder has n inputs and 2^n outputs; exactly one output is high (active) based on input combination. A demultiplexer (demux) has n select lines, 1 data input, and 2^n data outputs; the data input is routed to the selected output.

In practice, they’re almost identical in hardware (same gates), but conceptually different: decoder activates (selects), demux routes data. Decoder used for address decoding in memory; demux used for routing data streams.

Q15. Priority Encoder — Design an 8:3 with Enable

Direct answer: A priority encoder converts an 8-bit input into a 3-bit binary code representing the highest-priority set bit. Enable input activates the encoder; priority usually favors higher bit positions (MSB = highest).

Practical use: interrupt controllers prioritize multiple requests; only the highest is serviced. A priority encoder solves this combinationally.

8:3 Priority Encoder (MSB = highest priority):
Input (I7 I6 ... I0) | Output (Y2 Y1 Y0) | Valid
---------------------|------------------|-------
1???????             |        111        |   1
01??????             |        110        |   1
001?????             |        101        |   1
0001????             |        100        |   1
00001???             |        011        |   1
000001??             |        010        |   1
0000001?             |        001        |   1
00000001             |        000        |   1
00000000             |        xxx        |   0  (no input set)

Truth table shows: if I7=1, output is 111 (binary 7) regardless of others.
If I7=0 and I6=1, output is 110 (binary 6), etc.

Boolean (from K-map):
Y2 = I7 + I6 + I5 + I4
Y1 = I7 + I6 + NOT(I5)·NOT(I4)·(I3 + I2)
Y0 = I7 + NOT(I6)·(I5 + I3 + I1)
Valid = I7 OR I6 OR I5 OR I4 OR I3 OR I2 OR I1 OR I0

Q16. Magnitude Comparator — Design a 2-Bit Version

Direct answer: A magnitude comparator outputs flags for A > B, A = B, A < B. A 2-bit version compares two 2-bit numbers, producing three output bits.

2-Bit Magnitude Comparator:
A1 A0 vs. B1 B0

Truth table (abbreviated):
A | B | A>B | A=B | AB: (A1·NOT(B1)) + (A1·A0·NOT(B1)) + (NOT(A1)·A1·B1) + ... (complex)
A=B: (A1 XNOR B1) AND (A0 XNOR B0)
AB) AND NOT(A=B)

Or cascaded approach:
If A1 > B1, then A > B (regardless of A0, B0)
If A1 = B1, compare A0 vs. B0
If A1 < B1, then A < B

Gray Code Sequence (3-bit):
Decimal | Binary | Gray Code
--------|--------|----------
0       | 000    | 000
1       | 001    | 001
2       | 010    | 011
3       | 011    | 010
4       | 100    | 110
5       | 101    | 111
6       | 110    | 101
7       | 111    | 100

Notice: each row differs from previous by exactly 1 bit in Gray column.

Binary to Gray conversion:
Gray = Binary XOR (Binary >> 1)
Example: Binary = 0101 (decimal 5)
         0101 XOR (0101 >> 1) = 0101 XOR 0010 = 0111 (Gray for 5)

Gray to Binary conversion:
Binary = Gray
For each bit position i (left to right):
  Binary[i] = Gray[i] XOR Binary[i-1]
Example: Gray = 0111 (decimal 5 in Gray)
         Binary[0] = 0 (MSB, no prior bit)
         Binary[1] = 1 XOR 0 = 1
         Binary[2] = 1 XOR 1 = 0
         Binary[3] = 1 XOR 0 = 1
         Result: Binary = 0101 ✓

BCD Addition: 5 + 6
  5 = 0101 (BCD)
+ 6 = 0110 (BCD)
  -----------
    = 1011 (invalid BCD, > 9)

Correction: Add 6 (0110)
  1011 + 0110 = 10001

Result: Carry=1, digit=0001, which represents 11 (decimal) ✓

Another example: 8 + 7 = 15
  8 = 1000 (BCD)
+ 7 = 0111 (BCD)
  -----------
    = 1111 (invalid, =15)

Add 6:
  1111 + 0110 = 10101
  Result: Carry=1 (1 in next digit), digit=0101 (5)
  So: 15 = 1 (tens) and 5 (ones) ✓

BCD Adder logic:
Sum_binary = A + B
If Sum_binary > 1001 (9 decimal):
  Sum_BCD = Sum_binary + 0110 (add 6)
  Carry_out = 1
Else:
  Sum_BCD = Sum_binary
  Carry_out = 0

SR FF truth table:
S | R | Q+ | Function
--|---|----|---------
0 | 0 | Q  | Hold
0 | 1 | 0  | Reset
1 | 0 | 1  | Set
1 | 1 | ?  | Invalid (ambiguous)

JK FF truth table:
J | K | Q+ | Function
--|---|----|---------
0 | 0 | Q  | Hold
0 | 1 | 0  | Reset
1 | 0 | 1  | Set
1 | 1 | Q̄  | Toggle

T FF truth table:
T | Q+ | Function
--|----|---------
0 | Q  | Hold
1 | Q̄  | Toggle

Timing Diagram: D Flip-Flop

CLK:     ___|‾‾‾‾|_|‾‾‾‾|_|‾‾‾‾|_

D:       ----|‾‾|____|‾‾‾‾|____|‾‾|-----
            ↑     ↑              ↑    ↑
        (hold_time before ↓ edge) (setup_time before ↓ edge)

             ← hold time → ← setup time →
             (after rising edge) (before rising edge)

Q:       -------|‾‾‾‾‾‾‾|_____|‾‾‾‾‾‾
             ↑
         (clk-to-Q delay from rising edge)

Timings:
Setup time: D must be stable ≥ 0.5ns before rising CLK edge
Hold time: D must remain stable ≥ 0.2ns after rising CLK edge
Clock-to-Q: Q reflects D input ≤ 1.5ns after rising CLK edge

Violation example:
If D changes 0.1ns before clock (< setup_time), metastability occurs.
Q oscillates for ~nanoseconds before settling.

Latch (SR latch with gating):
EN:  ---|‾‾‾‾‾‾|___|‾‾‾‾‾‾|___

D:   _|‾‾|_|‾‾‾‾‾|_|‾‾|_____

Q:   _|‾‾‾‾|_|‾‾‾‾‾‾|_|‾‾|___
        (Q follows D while EN=1)
        (transparent: real-time tracking)

Flip-Flop (D FF with clock):
CLK: _|‾|_|‾|_|‾|_|‾|_|‾|_

D:   _|‾‾|_|‾‾‾‾‾|_|‾‾|_____

Q:   _|‾‾‾‾|___|‾‾‾‾|___|‾‾__
         (Q captures D on ↑ CLK edge only)
         (edge-triggered: synchronous, no oscillation risk)

Key insight:
Latch: Q changes immediately when input changes (if EN=1)
       → faster but more complex to debug, risk of glitches
FF:    Q changes only on clock edge
       → slower but predictable, easier to verify timing

Mod-6 Counter (counts 0,1,2,3,4,5, then reset):
State | Q2 | Q1 | Q0 | Next
------|----|----|----|-----
  0   | 0  | 0  | 0  | 1
  1   | 0  | 0  | 1  | 2
  2   | 0  | 1  | 0  | 3
  3   | 0  | 1  | 1  | 4
  4   | 1  | 0  | 0  | 5
  5   | 1  | 0  | 1  | 0 (reset)
  6   | 1  | 1  | 0  | X (invalid, force reset)
  7   | 1  | 1  | 1  | X (invalid, force reset)

JK truth table recap:
J K | Q+
----|----
0 0 | Q (hold)
0 1 | 0 (reset)
1 0 | 1 (set)
1 1 | Q̄ (toggle)

Excitation table (for JK FF to transition from Q→Q+):
Q | Q+ | J | K
--|----|----|----
0 | 0  | 0 | X (hold: J=0, K=0 or 1)
0 | 1  | 1 | X (set: J=1, K=0 or 1)
1 | 0  | X | 1 (reset: J=0 or 1, K=1)
1 | 1  | X | 0 (hold: J=0 or 1, K=0)

K-map each J and K input vs. current state (Q2, Q1, Q0):
J0 = 1 (always toggle Q0)
J1 = Q0 (toggle Q1 when Q0=1)
J2 = Q0·Q1 (toggle Q2 when Q1,Q0 both set)
K0 = 1 (always toggle Q0)
K1 = Q0 (toggle Q1 when Q0=1)
K2 = Q0·Q1 (toggle Q2 when Q1,Q0 both set)

Example: 10 - 3 in 4-bit
10 = 1010
3 = 0011

Two's complement of 3:
NOT(0011) = 1100
1100 + 1 = 1101 (-3 in two's complement)

10 + (-3):
  1010
+ 1101
------
 10111 (5-bit result, drop MSB)
 = 0111 = 7 (decimal) ✓

Circuit: Use adder with:
  A = 1010 (10)
  B_inverted = NOT(0011) = 1100
  Cin = 1
  Result = A + B_inverted + Cin = 10 - 3 = 7

PAL architecture:
Inputs: A, B, C (and complements)

AND matrix (programmable):
     A Ā B B̄ C C̄
P0:  1 0 1 0 0 0  → outputs AB
P1:  1 0 0 1 1 0  → outputs AC
P2:  0 1 1 0 1 0  → outputs BC

OR matrix (fixed):
Y = P0 + P1 + P2
  = AB + AC + BC ✓

The user sets fuses in the AND matrix;
OR gates are hardwired.
