In this article, we will delve into the distinctions between design verification, pre-silicon validation, and post-silicon validation in the context of semiconductor development. We will explore the purposes, processes, and significance of each stage, highlighting their role in ensuring the robustness and functionality of semiconductor designs.
Design verification is a critical stage in semiconductor development, wherein the design’s functional correctness is thoroughly tested. It involves an exhaustive process of validating the design against specifications to identify and rectify any design flaws.
Before fabrication, pre-silicon validation plays a crucial role in evaluating the design’s behavior using simulations and hardware prototypes. This phase is essential to uncover any potential issues before manufacturing the semiconductor.
Once the silicon chip is manufactured, post-silicon validation comes into play, ensuring the chip’s functionality and performance align with the design intent. This stage involves comprehensive testing to identify and resolve any post-manufacturing defects.
In the following sections, we will compare these stages, as well as delve into the significance of design verification and validation in semiconductor development. Through our exploration, we aim to provide a comprehensive understanding of the semiconductor development process and its key components.
Table of Contents
Understanding Design Verification
Design verification is a critical stage in semiconductor development, wherein we thoroughly test the design’s functional correctness. This process involves validating the design against specifications to identify and rectify any design flaws. By ensuring the design meets the intended functionality, design verification plays a key role in ensuring the reliability and performance of semiconductor products.
At its core, the verification process focuses on ensuring that the design functions as intended and meets the desired specifications. This involves testing various aspects of the design, including its inputs, outputs, and internal behavior. Through a combination of simulation, formal methods, and emulation, we aim to uncover any design flaws or mismatches between the intended behavior and the actual implementation.
Functional correctness is of paramount importance in design verification. By rigorously testing the design against a wide range of test cases, we can identify and address any functional defects or errors. This process helps us ensure that the design performs its intended tasks accurately and reliably.
The Verification Process
Design verification typically follows a systematic approach that includes several key steps:
- Specification Analysis: We thoroughly analyze the design specifications to develop a deep understanding of the required functionality and performance expectations.
- Testbench Development: We create a testbench, which includes a set of test cases, stimuli, and expected outcomes, to thoroughly exercise the design and verify its behavior.
- Simulation: We simulate the design using the testbench, observing its behavior and comparing it against the expected outcomes. This allows us to identify any discrepancies or design flaws.
- Debugging and Bug Fixing: When design flaws are identified, we enter a debugging phase to isolate and resolve the issues. This may involve working closely with the design team to understand the root cause of the problems and implement appropriate fixes.
- Coverage Analysis: We analyze the coverage achieved during the verification process to ensure that the design has been adequately tested. This helps us assess the completeness and effectiveness of our verification efforts.
Challenges in Design Verification
Design verification presents several challenges due to the complexity of modern semiconductor designs. As designs become more intricate and interdependent, verifying their functional correctness becomes increasingly difficult.
One of the challenges is testbench development. Creating comprehensive testbenches that cover all possible scenarios and corner cases can be a time-consuming and resource-intensive task. It requires a deep understanding of the design and its intended behavior to develop effective test cases.
Another challenge lies in managing the complexity of the design itself. Verification engineers must handle the vast number of signals, interfaces, and interactions within the design. This complexity can make it challenging to identify and isolate design flaws when they arise.
Furthermore, the ever-increasing time-to-market pressures in the semiconductor industry pose a challenge for design verification. Engineers must balance the need for thorough verification with the need to meet tight project deadlines, ensuring that sufficient time is allocated for thorough testing and bug fixing.
| Design Verification Benefits | Design Verification Challenges |
|---|---|
| 1. Ensures functional correctness | 1. Testbench development |
| 2. Identifies and rectifies design flaws | 2. Managing design complexity |
| 3. Verifies design against specifications | 3. Time-to-market pressures |
| 4. Enhances reliability of semiconductor designs |
Unveiling Pre-silicon Validation
Before fabrication, pre-silicon validation plays a crucial role in evaluating the design’s behavior using simulations and hardware prototypes. This phase is essential to uncover any potential issues before manufacturing the semiconductor.
During pre-silicon validation, simulation tools are used to mimic the behavior of the design under various conditions and test its functionality. This allows us to identify any design flaws or errors that may arise in different scenarios. By simulating real-world conditions, we can assess the performance and functionality of the design before investing in the costly manufacturing process.
Hardware prototypes are also utilized in pre-silicon validation. These prototypes help validate the functionality of the design on actual hardware rather than relying solely on simulation models. By testing the design on prototypes, we can gain more accurate insights into its behavior and potential issues.
One of the key objectives of pre-silicon validation is to ensure the functionality and reliability of the design. By subjecting the design to rigorous functionality testing, we can identify any deficiencies in its performance or behavior. This helps us make necessary adjustments and improvements to enhance the overall quality of the design.
It’s important to note that while pre-silicon validation is a crucial step in the semiconductor development process, it does have its limitations. Simulation models may not always perfectly replicate real-world conditions, and hardware prototypes may not capture all possible scenarios. However, despite these limitations, pre-silicon validation remains an invaluable tool for uncovering design problems early on, mitigating the risks associated with manufacturing faulty semiconductors.
Benefits of Pre-silicon Validation:
- Identifies design flaws and errors before manufacturing
- Ensures functionality and reliability of the design
- Reduces the risk of manufacturing faulty semiconductors
- Helps make necessary adjustments and improvements to enhance design quality
By leveraging the power of simulations and hardware prototypes, pre-silicon validation acts as a critical gatekeeper in semiconductor development. It enables us to catch design issues early on and refine the design before moving forward with manufacturing. This helps save time, resources, and ultimately ensures the creation of robust and reliable semiconductor products.
Decoding Post-silicon Validation
Once the silicon chip is manufactured, post-silicon validation becomes crucial to ensure the chip’s functionality and performance are aligned with the design intent. This stage involves comprehensive testing to identify and resolve any manufacturing defects that may arise after the fabrication process.
Post-silicon validation plays a critical role in guaranteeing the quality of the final product. By meticulously evaluating the chip’s performance and functionality, any potential issues can be addressed, ensuring optimal operation and customer satisfaction.
Strategies and Test Methodologies
Post-silicon validation employs various strategies and test methodologies to thoroughly assess the silicon chip’s performance. This includes functional testing, performance testing, and stress testing.
Functional testing involves verifying that the chip performs its intended functions accurately. It ensures that all the features and capabilities designed into the chip are working as expected. Through a comprehensive set of test cases, the chip’s functional correctness is evaluated.
Performance testing focuses on assessing the chip’s speed, power consumption, and efficiency. This type of testing determines whether the chip is meeting its performance targets, ensuring it performs optimally under different operating conditions.
Stress testing involves subjecting the chip to extreme conditions, such as high temperature or voltage fluctuations, to assess its resilience and stability. This type of testing helps identify potential weaknesses or limitations in the chip’s design.
Test methodologies in post-silicon validation may include using hardware debuggers, test vectors, and simulators. These tools enable engineers to analyze and evaluate the chip’s behavior, identify potential issues, and troubleshoot any problems that may arise.
Key Considerations in Post-silicon Validation
During the post-silicon validation phase, there are several key considerations that engineers must take into account to ensure thorough testing and accurate results.
First and foremost, it is crucial to have a clear understanding of the chip’s design specifications and intended functionality. This knowledge provides a basis for designing appropriate test cases and scenarios that accurately reflect real-world usage scenarios.
Another important consideration is the duration of the validation process. Post-silicon validation typically requires a significant amount of time and resources due to the complexity and scale of modern semiconductor designs. Proper planning and allocation of resources are vital to ensure efficient and effective testing.
Additionally, collaboration and communication among different teams and stakeholders are essential for successful post-silicon validation. This ensures that all aspects of the chip’s performance and functionality are thoroughly evaluated and any potential issues are addressed collaboratively.
Overall, post-silicon validation plays a critical role in guaranteeing the quality and reliability of semiconductor products. Through comprehensive testing and evaluation, potential manufacturing defects can be identified and resolved, ensuring optimal chip performance and customer satisfaction.

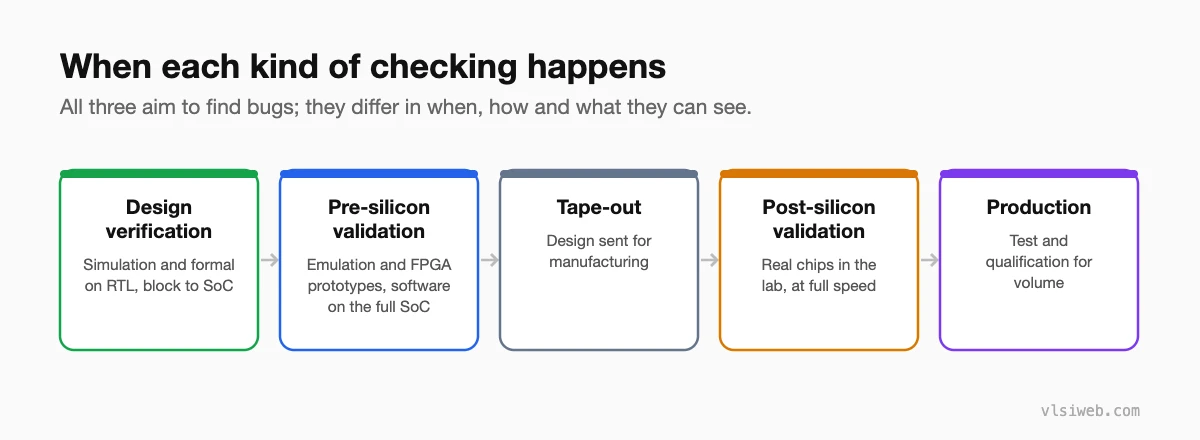

Comparing Design Verification, Pre-silicon Validation and Post-silicon Validation
In this section, we will undertake a comparative analysis of design verification, pre-silicon validation, and post-silicon validation. By exploring the similarities and key differences in terms of goals, methodologies, and outputs, we can gain a clearer understanding of how these stages complement each other and contribute to the overall semiconductor development process.
Similarities
Despite their distinct roles, design verification, pre-silicon validation, and post-silicon validation share some commonalities:
- They are essential stages in semiconductor development, ensuring the integrity and functionality of the designs.
- They involve rigorous testing and validation processes to identify and rectify any design flaws or manufacturing defects.
- They play a crucial role in achieving high-quality and reliable semiconductor products.
Differences
While these stages have similarities, they also have notable differences:
| Stage | Goals | Methodologies | Outputs |
|---|---|---|---|
| Design Verification | Verify functional correctness, identify design flaws | Simulation-based testing, formal verification, coverage analysis | Verified design, identified design flaws |
| Pre-silicon Validation | Identify issues before manufacturing, ensure functionality | Simulation, emulation, hardware prototyping | Evaluated design behavior, validated functionality |
| Post-silicon Validation | Ensure chip functionality and performance | Functional testing, performance testing, debug analysis | Validated chip functionality, resolved defects |
As the table illustrates, each stage has specific goals, methodologies, and outputs that are tailored to address the unique challenges and requirements of the respective phases.
By understanding the similarities and differences between design verification, pre-silicon validation, and post-silicon validation, semiconductor developers can construct comprehensive validation strategies that ensure robust and reliable semiconductor designs.
Significance of Design Verification and Validation in Semiconductor Development
In semiconductor development, design verification and validation are crucial stages that ensure the functionality, integrity, and quality of semiconductor designs. These processes play a critical role in achieving high-quality and reliable semiconductor products. Let us explore the significance of design verification and validation, along with their benefits, challenges, and best practices.
Design Verification
Design verification involves the comprehensive testing of semiconductor designs to validate their functional correctness and identify any design flaws. By rigorously verifying the design against specifications and requirements, design verification ensures that the final product meets the desired functionality standards. The process involves various techniques such as simulation, formal verification, and hardware emulation to thoroughly assess the design’s performance and identify any potential issues.
The key goal of design verification is to uncover and rectify design flaws early on in the development process, preventing costly and time-consuming modifications later. By validating the design’s functionality, design verification helps ensure that the semiconductor design meets the desired performance criteria, reliability standards, and customer expectations.
Design Validation
Design validation, on the other hand, focuses on assessing the overall design’s quality, robustness, and suitability for manufacturing. This stage involves rigorous testing to evaluate the design’s performance, power consumption, manufacturability, and reliability. Design validation is crucial in identifying and resolving any potential issues that may arise during manufacturing or deployment.
Through design validation, semiconductor developers can ensure that the final product meets the required quality standards and can withstand real-world operating conditions. This stage involves various tests, such as power analysis, timing analysis, and functional verification, to verify that the design is robust, reliable, and manufacturable.
Benefits and Challenges
The significance of design verification and validation in semiconductor development cannot be overstated. These stages offer several benefits:
- Ensuring functional correctness and reliability of semiconductor designs
- Reducing the risk of design flaws and manufacturing defects
- Improving product quality and customer satisfaction
- Reducing time-to-market by identifying and resolving issues early in the development process
- Enhancing the overall competitiveness of semiconductor products
Despite their importance, design verification and validation also come with their fair share of challenges. The complexity of semiconductor designs, evolving technology, and stringent quality standards can make the verification and validation process time-consuming and resource-intensive. Additionally, ensuring accurate and exhaustive testing in the presence of ever-increasing design complexity can be challenging.
Best Practices
To overcome these challenges and maximize the effectiveness of design verification and validation, semiconductor developers should follow best practices:
- Establish clear design specifications and requirements
- Adopt a systematic approach to design verification and validation
- Utilize a combination of simulation, formal verification, and hardware emulation
- Leverage industry-standard tools and methodologies
- Implement robust error-handling mechanisms and feedback loops
By implementing these best practices, semiconductor developers can streamline the design verification and validation process, improve overall efficiency, and ensure the delivery of high-quality semiconductor products.
| Design Verification | Design Validation |
|---|---|
| Ensures functional correctness | Evaluates overall design quality |
| Identifies and rectifies design flaws | Tests performance, power consumption, and manufacturability |
| Validates against specifications | Verifies robustness and reliability |
| Prevents costly modifications | Ensures product meets quality standards |
By combining design verification and validation, semiconductor developers can achieve a holistic approach to semiconductor development, ensuring both functional correctness and overall design quality. These stages serve as pillars of quality assurance in semiconductor development, contributing to the advancement and reliability of the industry.
Conclusion
After a comprehensive exploration of design verification, pre-silicon validation, and post-silicon validation in the context of semiconductor development, we have gained valuable insights into their significance and contributions. These stages play a vital role in ensuring the robustness, reliability, and functionality of semiconductor designs.
Design verification acts as a critical step in the semiconductor development process, validating the design’s functional correctness and identifying any potential design flaws. Pre-silicon validation allows for early detection and resolution of issues through simulations and hardware prototypes before the manufacturing stage. Post-silicon validation, on the other hand, focuses on performance testing and rectifying any manufacturing defects after the silicon chip is fabricated.
By understanding the differences and unique contributions of design verification, pre-silicon validation, and post-silicon validation, we can foster continuous advancements in the semiconductor industry. These stages collectively ensure high-quality and reliable semiconductor products, paving the way for innovation and progress in the field of semiconductor development.
