Welcome to our guide on conditional statements in Verilog! In the realm of digital design, efficient coding techniques are crucial for achieving optimal design outcomes. Understanding and effectively utilizing Verilog conditional statements can greatly enhance the logic synthesis process. In this article, we will explore the concept of conditional statements in Verilog, delve into their syntax and purpose, discuss conditional operators, and provide best practices for their usage. We will also showcase practical examples to illustrate their application in different digital design scenarios. So let’s dive in and discover how Verilog conditional statements can revolutionize your digital designs!
Table of Contents
Understanding Conditional Statements
In Verilog, conditional statements play a crucial role in designing digital circuits with logic and decision-making abilities. Two commonly used conditional statements in Verilog are the if-else and case statements. These statements allow us to create logic that executes different blocks of code based on specific conditions.
The syntax of an if-else statement is as follows:
if (condition) begin
// Code block to be executed if the condition is true
end
else begin
// Code block to be executed if the condition is false
end
The if-else statement evaluates a condition and executes the code inside the begin and end blocks depending on whether the condition is true or false. This allows us to implement decision-making logic in our Verilog designs.
The case statement, on the other hand, provides a way to evaluate multiple conditions and execute different code blocks based on the value of a particular variable. The syntax of a case statement is as follows:
case (expression)
value1: begin
// Code block to be executed when expression matches value1
end
value2: begin
// Code block to be executed when expression matches value2
end
...
default: begin
// Code block to be executed when no matches are found
end
endcase
The case statement evaluates the expression and compares it against the specified values. If a match is found, the corresponding code block is executed. The default block is optional and is executed when none of the specified values match the expression.
These conditional statements are powerful tools that allow us to create complex decision-making logic within our Verilog designs. We can use the if-else statement for simple conditional checks, while the case statement is helpful when we need to evaluate multiple conditions with specific values.
Let’s take a look at an example to further illustrate how these conditional statements work in Verilog:
reg [7:0] value;
always @(*) begin
if (value > 5) begin
// Code block executed when the value is greater than 5
end
else if (value
In this example, the if-else statement is used to check the value of the variable value. Depending on the value, the corresponding code block is executed.
Understanding conditional statements like if-else and case statements in Verilog is essential for designing efficient and flexible digital circuits. These statements enable us to implement decision-making logic and create designs that can respond to different conditions and inputs.

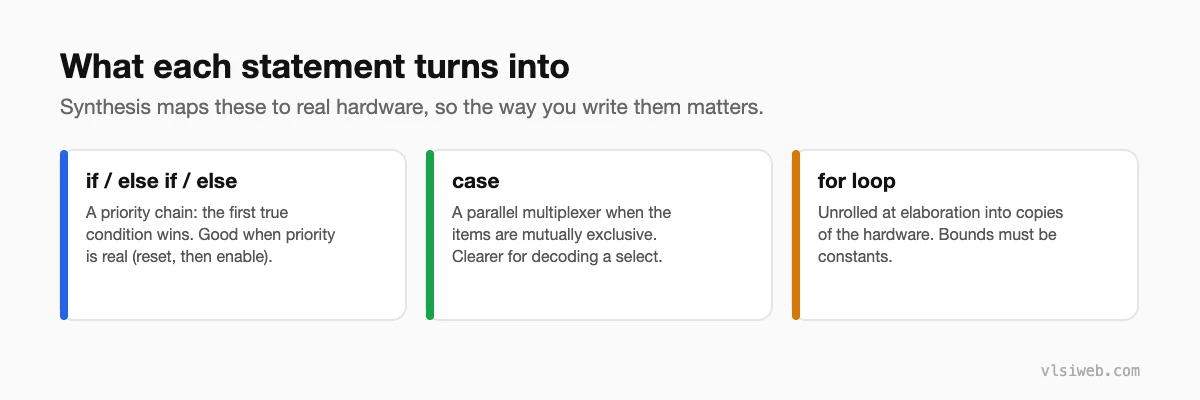

Comparison of if-else and case statements
| Statement | Syntax | Purpose |
|---|---|---|
| if-else | if (condition) begin // Code block executed if the condition is true end else begin // Code block executed if the condition is false end |
To perform a simple conditional check and execute different code based on the condition |
| case | case (expression) value1: begin // Code block executed when expression matches value1 end value2: begin // Code block executed when expression matches value2 end … default: begin // Code block executed when no matches are found end endcase |
To evaluate multiple conditions and execute code based on the value of a variable |
By utilizing these powerful conditional statements effectively, we can create Verilog designs that can make intelligent decisions based on specific conditions, leading to more efficient and optimized digital circuits.
Conditional Operators in Verilog
Conditional operators play a crucial role in Verilog, allowing designers to evaluate conditions and control the flow of execution in their designs. In this section, we will explore the different types of conditional operators, including logical operators and equality operators, and understand how they can be effectively utilized in Verilog programming.
Logical Operators
Verilog provides several logical operators that can be used to perform logical operations on boolean variables. These operators include:
- AND (&): Performs a bitwise AND operation between two operands.
- OR (|): Performs a bitwise OR operation between two operands.
- NOT (!): Negates a single operand.
Logical operators are used to combine conditions and determine the overall outcome based on the evaluated results. For example, the AND operator can be used to ensure that multiple conditions are satisfied before executing a certain block of code.
Equality Operators
Verilog also provides equality operators that are used to compare the equality or inequality of two operands. The equality operators include:
- Equal to (==): Returns true if the operands are equal.
- Not equal to (!=): Returns true if the operands are not equal.
These operators are particularly useful when comparing values or making decisions based on specific conditions. They allow designers to implement intricate logic that depends on the equality or inequality of different elements within their Verilog designs.
Let’s take a look at an example that utilizes conditional and logical operators in Verilog:
| A | B | Output |
|---|---|---|
| 0 | 0 | 0 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 1 |
In the above example, the output is 1 if either A or B is 1. This logic is implemented using the OR operator, which combines the conditions and outputs the desired result.
By understanding and leveraging Verilog conditional operators, designers can create complex and efficient digital designs that effectively respond to different conditions, leading to improved functionality and performance.
Combining Conditional Statements
In Verilog, combining multiple conditional statements allows us to create more complex decision-making processes in our designs. By utilizing various techniques such as nested if-else statements and cascaded if-else statements, we can handle multiple conditions with ease.
Nested if-else Statements
One way to combine conditional statements is through nested if-else statements. These statements allow us to check for additional conditions within the if or else block of another conditional statement.
Here’s an example:
if (condition1) begin
// Block of code to be executed if condition1 is true
if (condition2) begin
// Block of code to be executed if condition1 and condition2 are true
end else begin
// Block of code to be executed if condition1 is true and condition2 is false
end
end else begin
// Block of code to be executed if condition1 is false
end
In this example, we have an outer if-else statement with condition1. Within the if block, there is a nested if-else statement with condition2. Depending on the combination of conditions, different blocks of code will be executed.
Cascaded if-else Statements
Another way to combine conditional statements is through cascaded if-else statements. In cascaded if-else statements, multiple conditions are evaluated in sequence, and the first condition that evaluates to true triggers the corresponding block of code.
Here’s an example:
if (condition1) begin
// Block of code to be executed if condition1 is true
end else if (condition2) begin
// Block of code to be executed if condition1 is false and condition2 is true
end else begin
// Block of code to be executed if both condition1 and condition2 are false
end
In this example, we have multiple conditions evaluated using if-else if-else statements. The first condition that evaluates to true will execute its corresponding block of code, and the remaining conditions will be skipped.
By applying these techniques, we can handle multiple conditions effectively in Verilog designs, allowing for more intricate decision-making in our digital circuits.
Let’s dive deeper into this topic with an example:
Example: Combining Conditional Statements in a Counter Design
Consider a digital design where we need to implement a counter that operates in different modes based on certain conditions. We can use combined conditional statements to achieve this:
| Condition | Mode |
|---|---|
| condition1 | Mode A |
| condition2 | Mode B |
| condition3 | Mode C |
In this table, each condition corresponds to a specific mode of operation for the counter. By combining conditional statements, we can switch between modes based on the current condition. This allows for a flexible and dynamic counter design that adapts to different scenarios.
Best Practices for Using Conditional Statements
When working with Verilog, incorporating efficient coding techniques and optimizing the use of conditional statements can greatly improve the overall design efficiency. In this section, we will discuss some best practices for utilizing conditional statements in Verilog that will help you maximize the effectiveness of your code.
Coding Techniques for Verilog
When writing Verilog code, it’s important to use coding techniques that promote readability, modularity, and reusability. By following these guidelines, you can enhance the maintainability and efficiency of your design.
- Modular Design: Break down your code into smaller modules that perform specific tasks. This promotes reusability and makes it easier to debug and modify your code.
- Clear Naming Conventions: Use descriptive names for variables, modules, and signals to improve code readability. Avoid using ambiguous or generic names that may cause confusion.
- Meaningful Comments: Document your code using comments that explain the purpose and functionality of different sections. Well-commented code is easier to understand and maintain.
Optimizing Conditional Statements
Conditional statements play a crucial role in Verilog designs, and optimizing their use can lead to significant improvements in performance and efficiency. Consider the following techniques:
- Minimize Conditional Statements: Avoid unnecessary conditional statements by simplifying your code. Analyze the logic and eliminate any redundant or overlapping conditions.
- Use Case Statements: Instead of using multiple if-else statements, consider utilizing case statements when dealing with multiple conditions. Case statements provide a cleaner and more structured approach to handling complex conditions.
- Optimize Conditional Operators: Choose the appropriate conditional operators for your design requirements. Logical operators, such as AND, OR, and NOT, can simplify complex conditional expressions and improve code efficiency.
Design Efficiency
Design efficiency should be a primary consideration when working with conditional statements in Verilog. Here are some additional best practices to enhance the efficiency of your digital designs:
- Reduce Signal Assignments: Minimize the number of signal assignments within your conditional statements. Excessive assignments can lead to increased hardware complexity and longer synthesis times.
- Optimize Resource Usage: Carefully evaluate your logic design and eliminate any unnecessary hardware usage. This includes avoiding redundant gates, reducing the number of inputs to sequential elements, and optimizing the placement of your design components.
- Perform Timing Analysis: Conducting thorough timing analysis ensures that your design meets its performance requirements. Identify any potential timing violations and make the necessary adjustments to optimize your design.
By implementing these best practices, you can unlock the full potential of conditional statements in Verilog, resulting in more efficient and effective digital designs.
Examples of Conditional Statements in Verilog
In this section, we will provide practical examples of conditional statements in Verilog. These examples will demonstrate the application of conditional statements in different digital design scenarios, showcasing their versatility and usefulness in programming logic. Let’s explore some Verilog code samples that illustrate the power of conditional statements:
1. If-Else Statements
The if-else statement is a fundamental construct in Verilog that allows you to make decisions based on certain conditions. Consider the following code snippet:
module ExampleModule(input condition, output reg result);
always @(condition)
if (condition)
result = 1'b1;
else
result = 1'b0;
endmodule
In this example, if the input condition is true, the output result is set to logic ‘1’; otherwise, it is set to logic ‘0’.
2. Case Statements
Case statements provide a way to handle multiple conditions in Verilog. The following code snippet demonstrates an example of a case statement:
module ExampleModule(input [1:0] condition, output reg result);
always @(condition)
case (condition)
2'b00: result = 1'b0;
2'b01: result = 1'b1;
2'b10: result = 1'b1;
default: result = 1'b0;
endcase
endmodule
In this case statement, different conditions are matched using specific patterns defined by the case syntax, allowing the result to be set accordingly.
These examples provide just a glimpse into the possibilities of conditional statements in Verilog. By leveraging these concepts, you can create complex decision-making structures and implement logic-driven designs.
3. Combination of Conditional Statements
Conditional statements can also be combined to handle more intricate scenarios. Let’s consider the following code snippet:
module ExampleModule(input [1:0] condition, output reg result);
always @(condition)
if (condition == 2'b01)
result = 1'b1;
else if (condition == 2'b10)
result = 1'b0;
else
result = 1'b0;
endmodule
In this example, we have combined if-else statements to handle specific conditions based on the input value. By using the equality operator (==) and cascading the statements, we can precisely control the behavior of the output result.
These examples highlight the flexibility and expressiveness of conditional statements in Verilog. By mastering the art of using conditional statements effectively, you can design and implement sophisticated digital circuits that meet your specific requirements.
| Verilog Code Example | Description |
|---|---|
| if (condition) result = 1’b1; else result = 1’b0; |
Assigns logic ‘1’ to the result if the condition is true; otherwise, assigns logic ‘0’. |
| case (condition) 2’b00: result = 1’b0; 2’b01: result = 1’b1; 2’b10: result = 1’b1; default: result = 1’b0; endcase |
Sets the result based on the condition value, using specific patterns defined in the case statement. |
| if (condition == 2’b01) result = 1’b1; else if (condition == 2’b10) result = 1’b0; else result = 1’b0; |
Handles different conditions using a combination of if-else statements and the equality operator. |
Conclusion
In this article, we have conducted a comprehensive exploration of conditional statements in Verilog. By gaining a thorough understanding of these statements and implementing efficient coding techniques, digital designers can greatly improve their logic synthesis process and achieve optimal design outcomes.
Conditional statements, such as if-else and case statements, play a crucial role in digital design by allowing designers to make decisions based on specific conditions. We have discussed the syntax and purpose of these statements, as well as how they can be utilized to control the flow of execution in a Verilog design.
Furthermore, we have delved into the realm of conditional operators in Verilog, including logical and equality operators, which enable designers to evaluate conditions and perform comparisons. By mastering these operators, designers can enhance the flexibility and efficiency of their Verilog designs.
Ultimately, by following the best practices outlined in this article, designers can optimize their use of conditional statements and develop highly efficient and reliable digital designs. Whether it’s utilizing nested and cascaded if-else statements or combining multiple conditions, designers can leverage the power of conditional statements to create robust and adaptable Verilog designs.
