When it comes to ASIC verification, simulation accuracy and efficiency are of utmost importance. At the heart of the verification process, UVM agents play a crucial role in streamlining these processes and ensuring the seamless flow of data to and from the Design Under Test (DUT).
UVM agents encapsulate sequencers, drivers, and monitors into a single entity, offering configuration options and enhancing the accuracy of simulations. By combining these components, agents facilitate the generation and analysis of transactions, enabling robust verification of the DUT.
To ensure maximum efficiency, there are two types of UVM agents: active agents and passive agents. Active agents instantiate all three components – sequencer, driver, and monitor – while passive agents only instantiate the monitor. This distinction allows for flexibility in managing the agent’s role within the verification environment.
In the following sections, we will delve into the various aspects of UVM agents, including their types, creation, functionality, configuration, and best practices for implementation. By understanding the importance and intricacies of UVM agents, we can optimize the ASIC verification process, ensuring both accuracy and efficiency in our simulations.
Table of Contents
Types of Agents
When it comes to UVM agents, there are two main types: active agents and passive agents. These agent types serve different purposes and play a crucial role in the verification process.
Active Agents
Active agents are responsible for driving data to the Design Under Test (DUT) in the ASIC verification flow. They instantiate all three components: sequencer, driver, and monitor. The sequencer generates transactions, the driver converts these transactions into pin-level signals, and the monitor collects the outputs from the DUT. Active agents are essential for transferring data and ensuring the proper functioning of the DUT.
Passive Agents
On the other hand, passive agents focus on checking and coverage purposes. They only instantiate the monitor component. Passive agents are utilized when there is no data item to be driven to the DUT. By monitoring the outputs from the DUT, passive agents are able to perform checks and collect functional coverage information to enhance the verification process.
To summarize, active agents handle the active transfer of data, while passive agents are used for checking and coverage purposes. Both types of agents contribute to the successful verification of ASIC designs.
Throughout the verification process, a combination of active and passive agents may be used depending on the specific requirements of the project.
Types of UVM Agents – Summary
| Agent Type | Description |
|---|---|
| Active Agents | Instantiate sequencer, driver, and monitor components |
| Passive Agents | Instantiate only the monitor component |
Having a clear understanding of the different types of UVM agents is essential for developing an effective verification environment. Active agents handle data transfer, while passive agents focus on checks and coverage. By utilizing both types strategically, verification engineers can ensure comprehensive and efficient verification of ASIC designs.
Creating a UVM Agent
To create a UVM agent, we follow a structured process that involves creating custom classes inheriting from the uvm_agent base class. This approach allows us to build agents tailored to our specific verification needs.
The first step is to create a custom agent class derived from the uvm_agent base class. This class will serve as the foundation for our agent’s functionality. By leveraging inheritance, we can extend the capabilities of the base class to meet the requirements of our verification environment.
The next step is to register our custom agent class with the factory using the `uvm_component_utils macro. This step ensures that our agent can be dynamically created and controlled by the UVM framework, making it easily configurable and reusable.
Once our agent class is defined and registered, we proceed with the instantiation of agent components. These components include the sequencer, driver, and monitor, which work together to drive data to and from the DUT.
After instantiation, we build and connect the agent components. This involves configuring the connections between the sequencer, driver, and monitor to ensure proper data flow and synchronization. The agent’s class hierarchy facilitates these connections, allowing for efficient interaction between the components.
Creating a UVM Agent – Class Hierarchy Example:
Below is an example of a class hierarchy for a UVM agent:
| Class | Description |
|---|---|
| uvm_agent | The base class for all UVM agents. |
| custom_agent | A user-defined agent class derived from uvm_agent. |
In this example, the uvm_agent class serves as the foundation for our custom_agent class. Our custom_agent class inherits all the capabilities and functionalities of the uvm_agent class, allowing us to tailor it to our specific needs.
By creating custom classes and leveraging the class hierarchy, we can build powerful and adaptable UVM agents that enhance our verification processes.
UVM Agent Functionality
In the world of ASIC verification, UVM agents play a crucial role in ensuring the smooth execution of verification processes. These agents are responsible for performing various protocol-specific tasks, generating transactions, checking results, and collecting valuable functional coverage information.
Let’s take, for example, a UVM agent designed for the WishBone protocol. This agent consists of three key components: a sequencer, a driver, and a monitor.
The sequencer plays a vital role in the generation of data items that need to be sent to the driver. It converts these items into pin-level signals and drives them to the Design Under Test (DUT).
The driver acts as an interface between the sequencer and the DUT. Its primary function is to convert the pin-level signals from the sequencer into a format that the DUT can understand and process.
Additionally, the monitor is responsible for collecting outputs from the DUT. It then converts these outputs back into data item objects and distributes them among the various components in the testbench.
Overall, UVM agents are an integral part of the verification process, ensuring the efficient flow of data and the accurate validation of the DUT’s behavior. These agents not only generate and check transactions but also provide valuable insights into the functional coverage of the verification environment.
The image above illustrates the role of a UVM agent in facilitating the flow of data and transactions within a verification environment.
| UVM Agent Functionality | Protocol-Specific Tasks |
|---|---|
| Generating Transactions | Driving data items to the DUT through the sequencer and driver. |
| Checking Results | Validating the behavior of the DUT by monitoring outputs. |
| Functional Coverage | Collecting and reporting valuable coverage information. |
Configuring a UVM Agent
When working with UVM agents, it is essential to understand how to configure them to suit your specific needs. UVM agents can be configured as either active or passive, depending on the requirements of your verification environment. The configuration process involves setting the “is_active” variable of the agent class to determine its mode of operation.
To configure a UVM agent as active or passive, you have two options:
- Environment-level configuration:
- Configuration object and uvm_config_db:
In this approach, you can configure the agent’s mode of operation at the environment level. By setting the “is_active” variable in the environment configuration file, you can determine whether the agent should be active or passive.
Alternatively, you can use the uvm_config_db utility to configure the agent dynamically. This method involves creating a configuration object and retrieving it from the resource database. The configuration object holds the relevant data, including the “is_active” parameter, which specifies whether the agent should be active or passive.
By employing the uvm_config_db utility, you can easily modify and manage the configuration of your UVM agents during runtime, providing flexibility in adapting to various scenarios and requirements.
Example Configuration using the uvm_config_db:
Consider the following example:
| Component | Agent | Configuration |
|---|---|---|
| Agent A | Active | is_active = 1 |
| Agent B | Passive | is_active = 0 |
In this example, we have two agents: Agent A and Agent B. Using the uvm_config_db utility, we can configure Agent A as an active agent by setting “is_active = 1”. On the other hand, Agent B can be configured as a passive agent by setting “is_active = 0”. This configuration allows us to control the behavior and mode of operation for each agent individually.
The uvm_config_db utility simplifies the process of configuring UVM agents, offering a versatile and efficient approach to adapt to various verification requirements.
Summary
Configuring UVM agents as active or passive is a crucial aspect of developing flexible and efficient verification environments. By setting the “is_active” variable of the agent class at the environment level or using the uvm_config_db utility, you can easily define the mode of operation for each agent. This level of configurability enhances the versatility of UVM agents, allowing you to adapt to changing verification needs and optimize your simulations.
Example of a UVM Agent
An example UVM agent serves as a practical demonstration of the best practice of deriving custom agents from the uvm_agent base class. This example provides valuable insights into the effective implementation of UVM agents in verification environments.
The example UVM agent consists of essential components such as a driver, monitor, and sequencer. These components work together to facilitate the flow of data between the testbench and the DUT. The driver is responsible for driving data transactions to the DUT, while the monitor collects information from the DUT to ensure proper functionality and behavior.
Furthermore, the example UVM agent includes an agent configuration object, which plays a crucial role in controlling the behavior and customization of the agent. The agent configuration object provides a reference to a virtual interface, enabling seamless communication with the testbench and the DUT.
Functional Coverage Monitor and Scoreboard
In addition to the basic components, the example UVM agent can incorporate advanced functionalities such as a functional coverage monitor and a scoreboard. The functional coverage monitor tracks the coverage of specific features or scenarios, enabling comprehensive verification analysis. The scoreboard compares the expected results with the received results, ensuring accurate and reliable verification.
By including these advanced features, the example UVM agent enhances the verification process by providing valuable information about the verification progress, uncovering potential issues, and aiding in meeting verification goals.
API Sequences
Moreover, the example UVM agent can utilize API sequences to streamline the development of test scenarios and ensure efficient coverage. API sequences allow verification engineers to define complex test scenarios using a high-level interface, reducing the development time and improving the overall verification process.
The use of API sequences in the example UVM agent enhances code reusability and maintainability, as well as enables effective collaboration within the verification team.
Recommended Practice for UVM Agents
When it comes to developing UVM agents, following best practices is essential for ensuring efficient and future-proof verification processes. One of the key recommendations is to derive user-defined agents from the uvm_agent base class.
Deriving agents from the uvm_agent class allows for clear identification and organization of agents within the verification environment. By establishing a clear inheritance hierarchy, agents can be easily distinguished from other component types, facilitating better code readability and maintainability.
Moreover, deriving agents from the uvm_agent class future-proofs the verification environment against potential updates or changes to the base class. As the uvm_agent class evolves, derived agents automatically inherit the updates, ensuring compatibility and reducing the effort required for adapting the code.
One of the notable advantages of deriving agents from the uvm_agent base class is access to the convenient get_is_active() method. This method allows developers to determine the state of an agent, whether it is active or passive, enhancing flexibility in configuring and customizing agent behavior.
A recommended practice for UVM agents is to leverage the power of inheritance by deriving user-defined agents from the uvm_agent base class. This approach not only improves code organization and maintainability but also future-proofs the verification environment, enabling seamless adaptation to potential updates or changes.
The Base UVM Agent Class
The uvm_agent class serves as the foundation for creating user-defined agents. By inheriting from this uvm_agent base class, we can easily distinguish agents from other component types with the help of a clear inheritance hierarchy. This approach ensures that any future additions or modifications to the base uvm_agent class are automatically incorporated into derived classes.
When designing a verification environment, it is crucial to have a structured and organized hierarchy for agents. The uvm_agent class provides a solid starting point for constructing this hierarchy, enabling verification engineers to build effective testbenches that improve simulation accuracy and efficiency.
By utilizing inheritance, the uvm_agent class allows for the creation of custom agents that inherit all the properties, methods, and functionalities from the base class. This inheritance mechanism not only simplifies the development process but also ensures that the derived classes maintain a consistent structure and behavior.
The use of a base class also facilitates code reusability and extensibility. By defining common attributes and behaviors in the uvm_agent class, we can easily reuse these features across multiple derived classes. Additionally, when updates or enhancements are made to the base class, they are automatically propagated to all derived classes, eliminating the need for manual modifications and reducing maintenance efforts.
Let’s consider an example scenario where we have different types of agents, such as DMA agents, network protocol agents, and memory interface agents. By inheriting from the uvm_agent base class, we can create distinct derived classes for each type of agent, incorporating protocol-specific functionalities and configurations.
The following table provides a summary of the key attributes and methods available in the uvm_agent base class:
| Attribute/Method | Description |
|---|---|
| is_active | A boolean attribute that indicates whether the agent is active or passive. |
| get_is_active() | A method that returns the state of the agent (UVM_ACTIVE or UVM_PASSIVE). |
| build_phase() | A method that is called during the build phase of the agent and is used for constructing and configuring the agent’s components. |
| connect_phase() | A method that is called during the connect phase of the agent and is used for connecting the agent’s components together. |
| run_phase() | A method that is called during the run phase of the agent and is used for executing the agent’s behavior and handling the simulation flow. |
By leveraging the capabilities of the uvm_agent base class and its inheritance mechanism, we can create robust and flexible UVM agents that meet the specific requirements of our verification environment. This approach not only enhances code clarity and maintainability but also fosters a modular and scalable design.
Advantages of the Base UVM Agent Class:
- Clear distinction and identification of agents within the verification environment.
- Enables easy incorporation of future updates or changes to the base class.
- Promotes code reusability and extensibility across multiple derived classes.
- Facilitates the development of structured agent hierarchies for efficient testbench architecture.
By building upon the uvm_agent base class, we can harness the power of inheritance to create well-structured and adaptable UVM agents that contribute to the success of our ASIC verification projects.
Class Hierarchy of UVM Agents
When designing UVM agents for ASIC verification, understanding the class hierarchy is essential. At the top of the hierarchy is the base class, uvm_agent, which serves as the foundation for all user-defined agent classes. This hierarchical structure allows for a clear organization and distinction between different types of agents within a verification environment.
By inheriting from the uvm_agent class, engineers can create specialized agents tailored to specific verification requirements. These derived agent classes can inherit the functionality and properties of the base class while adding additional features as needed. This inheritable structure promotes code reuse and simplifies the development of complex testbenches.
In addition to the base class and derived classes, the class hierarchy can also include intermediate classes that provide a level of abstraction between the base class and the user-defined agent classes. This allows for further customization and refinement of agent functionality.
Advantages of a Clear Class Hierarchy
A clear class hierarchy for UVM agents offers several advantages. First, it provides a logical organization of code, making it easier to navigate and understand the structure of the testbench. This is especially beneficial when multiple agents are involved in the verification process.
Furthermore, the class hierarchy allows for well-defined interfaces and interactions between different agents. By adhering to a consistent structure, engineers can ensure proper communication and data flow between agents, improving overall simulation accuracy and efficiency.
Choosing the Right Agent Class
When designing a verification environment, it’s important to choose the right agent class based on the specific requirements of the design and the protocol being verified. The class hierarchy facilitates this process by providing a range of options to suit different scenarios.
For example, if the verification task requires a comprehensive monitoring of the design signals without actively driving any data, a derived class from uvm_agent may only need to instantiate the monitor component. On the other hand, for tasks that involve driving data and verifying responses, a derived class can instantiate all three components: sequencer, driver, and monitor.
Describing the UVM Agent Class
The uvm_agent class serves as the foundation for user-defined agents in the UVM methodology. It is declared as a virtual class, allowing it to be extended and customized to meet specific verification requirements. This versatile class encapsulates the core functionality and features necessary for effective agent implementation.
When creating an agent, the new method is utilized to instantiate and initialize instances of the uvm_agent class. This method ensures that all necessary components and resources are properly set up, enabling seamless integration and interaction within the testbench environment.
One of the key methods provided by the uvm_agent class is get_is_active. This method allows verification engineers to determine the state of an agent, whether it is an active agent that instantiates and manages all three components (sequencer, driver, and monitor), or a passive agent that focuses solely on monitoring and analysis.
In summary, the uvm_agent class declaration as a virtual class provides the basis for creating customizable and efficient agents in the UVM methodology. By utilizing the new method and get_is_active method, we can effectively instantiate agents and determine their mode of operation.
Agent Structured Hierarchy
In the realm of UVM agents, a fundamental concept is the structured hierarchy that governs their design and functionality. An agent serves as a container that holds and connects the vital components of the verification process, namely the drivers, monitors, and sequencers. This structured hierarchy is meticulously crafted to cater to the unique requirements of the protocol or interface being verified, ensuring an efficient and streamlined testbench architecture.
The agent’s structured hierarchy plays a pivotal role in orchestrating the flow of data within the verification environment. By organizing these components within the agent, we achieve a clear and well-defined representation of the verification infrastructure that accurately reflects the system under test.

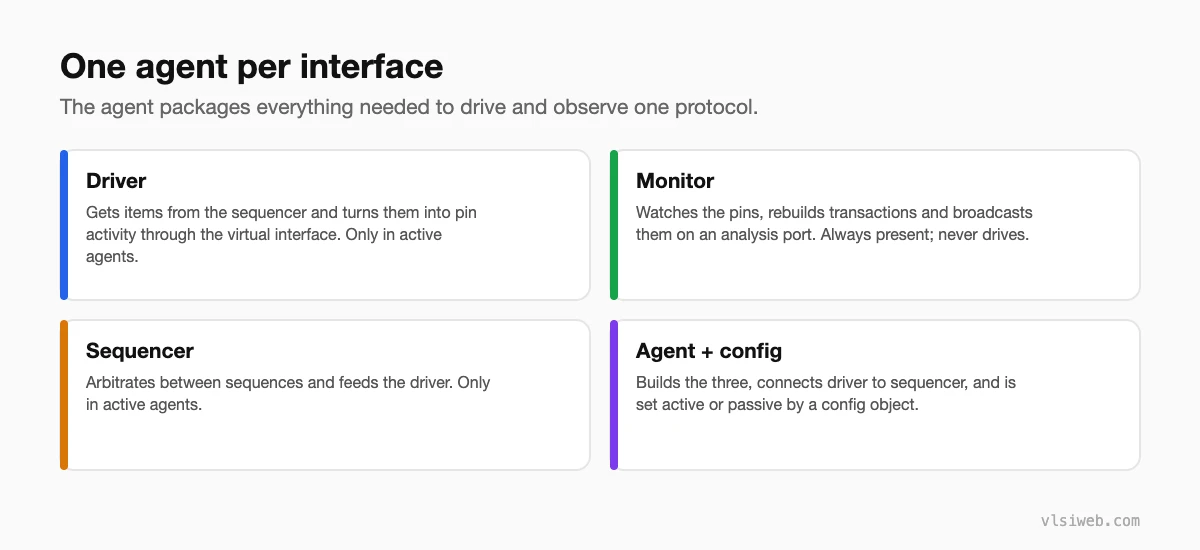

1. Container for Drivers, Monitors, and Sequencers
An agent acts as a centralized hub by encapsulating the essential elements of the verification process. These elements include drivers, which are responsible for driving data from the testbench to the DUT (Design Under Test); monitors, which collect and analyze the output signals from the DUT; and sequencers, which generate and manage transaction flow. Together, these components form a holistic system that enables efficient and accurate verification.
Within the agent’s structured hierarchy, these components are connected in a coordinated manner, ensuring seamless communication and data exchange. The agent serves as a bridge between the testbench and the DUT, facilitating the transfer of information and enabling comprehensive verification of the design.
| Components | Description |
|---|---|
| Drivers | Responsible for driving data from the testbench to the DUT. |
| Monitors | Collect and analyze output signals from the DUT. |
| Sequencers | Generate and manage transaction flow. |
The structured hierarchy of the agent ensures that these components operate in harmony, enabling efficient data transfer, extensive checking, and seamless coverage collection. It establishes a robust and modular framework that enhances the effectiveness of the verification process, contributing to overall design reliability and integrity.
By embracing this well-structured architecture, verification engineers can create testbenches that are not only highly efficient but also highly scalable, adaptable to evolving design requirements. The agent’s structured hierarchy provides a solid foundation for building powerful and comprehensive verification environments that enable accurate and reliable verification of complex designs.
Conclusion
In conclusion, UVM agents are integral to the ASIC verification process, playing a vital role in streamlining the simulation of designs. By encapsulating sequencers, drivers, and monitors into a single entity, these agents efficiently drive data to and from the DUT, enhancing simulation accuracy and improving efficiency.
To ensure the effectiveness of UVM agents, it is crucial to follow best practices and derive custom agents from the uvm_agent base class. This approach allows verification engineers to build testbenches that are not only effective but also future-proof against potential updates to the uvm_agent class.
By implementing UVM agents and adopting best practices, verification engineers can build testbenches that improve simulation accuracy and efficiency, ultimately leading to more reliable and robust ASIC designs.
