What Does an Application Engineer in VLSI Do? Role, Skills and How to Start

The short answer: an application engineer (AE) in VLSI helps customers use a company’s EDA tools, IP or chips successfully. At an EDA or IP company, that means setting up flows, debugging customer problems, running evaluations and training engineers. At a chip company, it means helping customers design your chips into their products. It is a deeply technical role with a lot of people contact.

Application engineering is a role many students have never heard of, but it is a great fit for engineers who are technically strong and also enjoy explaining things to people. You see how many different companies design chips, which teaches you a lot very quickly. Here is what it is like.

1. What an application engineer actually does
2. A typical week
3. The skills you need
4. Tools you will use
5. How I would get started
6. Where the role leads

Part 1: What an application engineer actually does

At an EDA company like Synopsys, Cadence or Siemens EDA, an AE is the expert who sits between the customer and the R&D team. You help chip teams set up and tune flows, debug tool problems, run benchmarks against competing tools, and pass bugs and feature requests back to R&D.

At a chip or IP company, a field application engineer (FAE) helps customers integrate your product: reviewing their schematics or SoC integration, answering technical questions and helping debug their boards or designs.

Part 2: A typical week

A typical week as an AE looks something like this:

• Debugging a customer issue, often from logs and partial test cases
• Running an evaluation or benchmark for a prospective customer
• Setting up or tuning a flow for a customer project
• Writing an internal bug report or feature request for R&D
• Running a training session or technical workshop
• Travelling to, or calling, customer sites to review progress

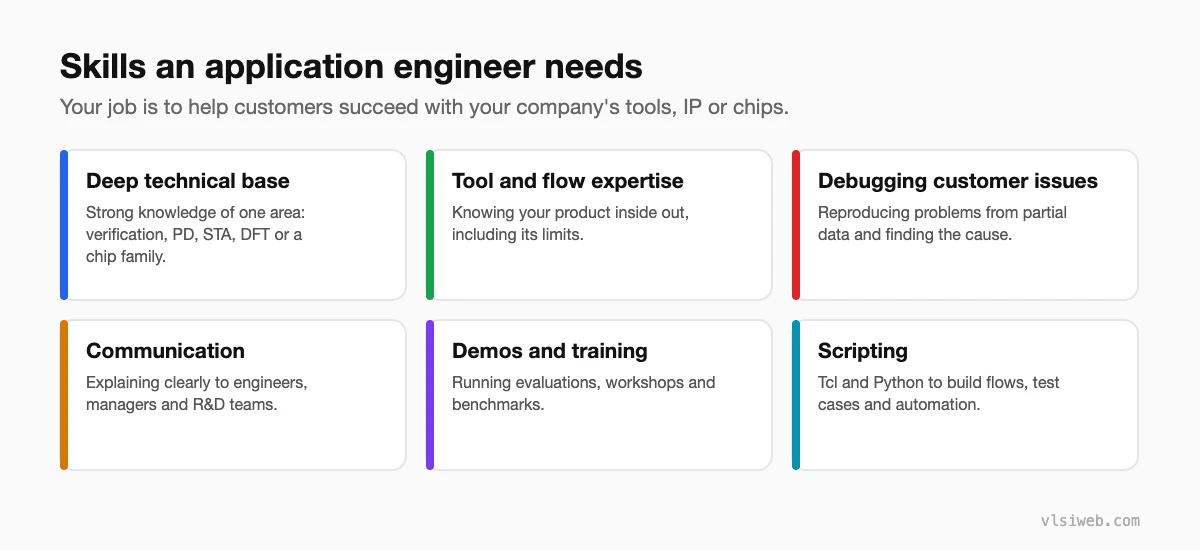

Part 3: The skills you need

The AEs I would want on my side are the ones who are deep in one area, say PD or verification, and calm when a customer is stressed about a deadline. Depth earns the customer’s trust; calm keeps it.

It also helps a lot to like variety. You see many designs, many teams and many ways of working, and the fastest learners turn that into broad, practical expertise.

Part 4: Tools you will use

You will use whatever your company makes, very deeply: for example simulators and formal tools, synthesis and place-and-route tools, STA tools or IP configuration flows, plus scripting in Tcl and Python. A solid base in one area of the chip flow is the real prerequisite.

Part 5: How I would get started

1. Build strong fundamentals in one area: verification, PD, STA, DFT or design.
2. Learn the related tools as deeply as you can, including open-source ones like Verilator, Yosys and OpenROAD.
3. Practise explaining technical topics simply, for example by writing short blog posts or teaching friends.
4. Learn Tcl and Python scripting.
5. Apply to graduate AE roles at EDA and IP companies, or move into AE after a few years in a design role.

Part 6: Where the role leads

AEs grow into senior or principal AEs, technical account leads, product engineering or product management roles. Many also move back into design teams later, bringing a wide view of how different companies work.

Because you meet so many teams, it is also one of the best roles for building a strong professional network.

FAQ

Is application engineering a sales job?

No. It is a technical job that works closely with sales. Your value comes from solving technical problems, not from selling.

Can freshers become application engineers?

Yes, many EDA companies hire graduates into AE roles. Others prefer a few years of design experience first.

Does an AE travel a lot?

It depends on the company and region. Some roles involve regular customer visits; others are mostly remote or office-based.

Is it hard to move back into design from AE?

No. Many AEs move back into design, verification or PD roles, and their broad experience is valued.
