Think about this: every time you open Instagram, ask your phone for directions, or watch a YouTube video, there’s a tiny chip working nonstop behind the scenes. Someone designed that chip. Someone verified its logic. Someone ensured it could perform billions of operations without failure.
That “someone” could be you.
But if you’re a fresher right now, the VLSI world probably feels massive and confusing. Front-end, back-end, verification, FPGA, DFT – where do you even begin?
That’s exactly the problem this roadmap solves.
This guide begins with the basics of choosing a career direction and then gradually introduces you to the VLSI domain – what it is, the roles available, the required skills, and how to become job-ready step by step.
It’s not just another article – it’s a practical roadmap built exactly for beginners who want clarity, confidence, and a way into the semiconductor world.
Table of Contents
1. Before Choosing Any Domain: A Career Roadmap for All Freshers
Whether you pick VLSI, Software, Data Science, or Embedded, every engineering student should follow these phases.
Phase 1 – Self-Awareness & Direction (Month 0–1)
The first step of any career is understanding your interests and strengths.
Ask yourself:
- Do you enjoy digital logic, circuits, hardware, timing, and low-level systems?
- Or do you prefer coding applications, websites, or data?
- Do you like building things or analysing things?
- What type of work makes you lose track of time?
This clarity helps you avoid the “I’m confused” phase and builds direction.
Remember: The first 5 years define your direction, not your destination.
Phase 2 – Build Strong Fundamentals (Month 1–4)
These fundamentals help you in ANY technical domain:
Technical Foundations
- Mathematics (algebra, Boolean logic, probability basics)
- One programming language (C/C++ recommended)
- One scripting language (Python)
- Computer basics (architecture, OS fundamentals)
- Debugging and problem-solving mindset
Communication Foundations
- Clear spoken English
- Crisp written English
- Ability to explain technical concepts
These skills differentiate great engineers from average ones.
Phase 3 – Explore Multiple Domains (Month 3–6)
Before committing to VLSI, try out small projects in 2–3 areas:
- Digital design (simple Verilog/FPGA projects)
- Embedded systems (Arduino/ESP32)
- Software/Web (simple website or API)
- Data/ML (basic Python projects)
After exploration, choose based on what excites you—not what everyone else is doing.
Phase 4 – Pick a Domain & Go Deep (Month 6–18)
Once you feel aligned with a field, focus on:
- Consistent learning
- Deep understanding
- Project portfolio
- Domain-specific skills
- Resume + LinkedIn branding
If you’re someone who loves hardware, timing, logic design, chip architecture, and electronics, VLSI becomes a natural and powerful career path.
And now will get into the real roadmap.
2. Why VLSI Is One of the Best Career Choices Today
2.1 The Semiconductor Boom
The world is undergoing a massive chip demand explosion:
- AI accelerators (NVIDIA, Google TPUs)
- 5G infrastructure
- Electric vehicles & ADAS
- IoT devices
- Consumer electronics
- Aerospace & defence electronics
Every sector needs high-performance, low-power chips, and this is creating unprecedented demand for skilled VLSI engineers.
2.2 India’s Semiconductor Rise
India is investing billions in semiconductor design and manufacturing:
- Semicon India Program
- PLI (Production-Linked Incentives)
- Chips-to-Startup (C2S)
- DLI Scheme for Chip Design
This is leading to:
- More startups in semiconductor design
- More global companies are hiring in India
- Higher fresher salaries compared to regular IT roles
For the next 10–20 years, VLSI will be one of India’s fastest-growing engineering domains.
2.3 What VLSI Actually Is (Simple Explanation)
VLSI = designing integrated circuits (chips) that contain millions/billions of transistors.
These chips power everything from smartphones and GPUs to satellites and medical devices.
There are two major categories:
ASIC (Application-Specific Integrated Circuit)
- Custom-designed chips
- Used in high-volume products
- Examples: Apple A-series, NVIDIA GPUs, Qualcomm modems
FPGA (Field Programmable Gate Array)
- Reconfigurable hardware
- Used for prototyping, niche products, and fast development
- Great for beginners to learn real hardware behavior
3. VLSI Job Roles for Freshers (2025)
This is where many students get confused. VLSI is NOT one job—it’s a collection of specialized roles.
Here are the top domains:
3.1 RTL / Digital Design Engineer
Designs hardware logic at the RTL (Register Transfer Level) using Verilog/SystemVerilog.
3.2 Verification Engineer (Most In-Demand)
Creates testbenches to verify the correctness of RTL using SystemVerilog + UVM.
3.3 Physical Design Engineer (Back-End)
Works on floorplanning, placement, clock tree, routing, and timing closure.
3.4 DFT Engineer (Design for Test)
Ensures chip can be tested using scan chains, ATPG, and BIST.
3.5 FPGA Engineer
Implements systems on FPGAs for prototyping or production.
3.6 Analog / Mixed-Signal Engineer
Design analog components like ADC/DAC, PLL, LDO, and amplifiers.
3.7 ASIC Layout Engineer
Creates physical layouts at the transistor level.
3.8 SoC / Integration / Low-Power / AI Hardware
Fast-growing roles in companies designing complex SoCs.
Tip: As a fresher, pick ONE main role to target, instead of learning everything.

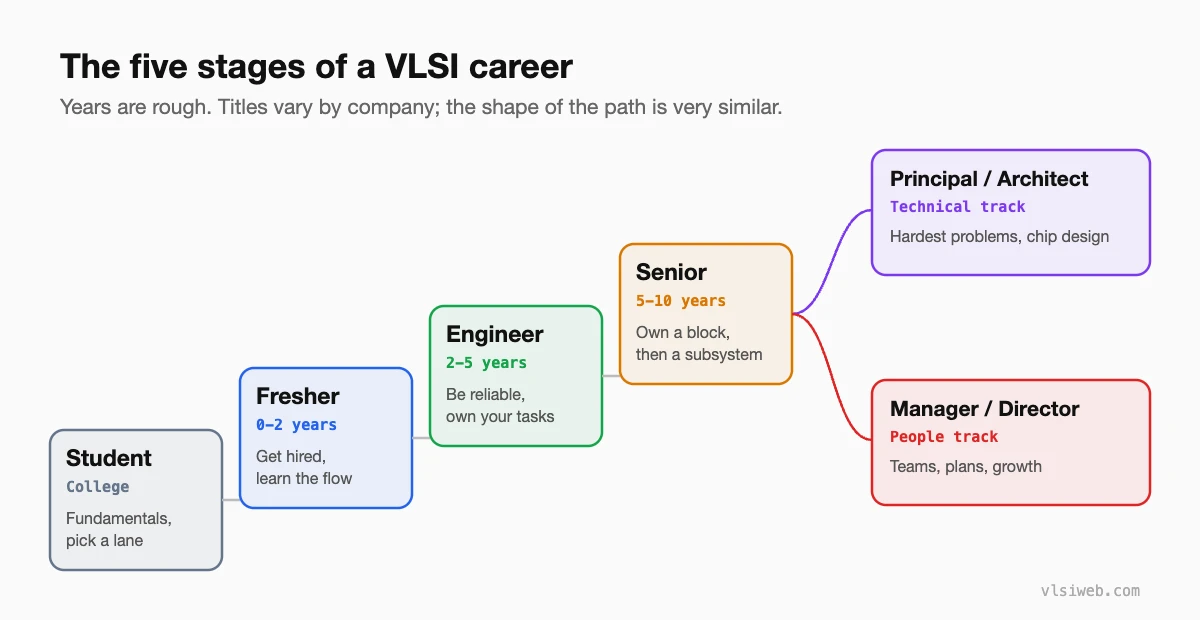

4. The Complete VLSI Career Roadmap for Freshers (0–3 Years)
Here’s the step-by-step progression you should follow.
Stage 0 – Eligibility & Mindset (Month 0)
Good Candidates Come From:
- ECE, EEE, EIE, Instrumentation
- CSE with hardware interest
- M.Tech VLSI, Embedded, Microsystems
Right Mindset:
- Ready to learn deeply
- Patience for debugging & long simulations
- Focus on fundamentals and hands-on work
- Consistency > intensity
Stage 1 – Core Electronics & Digital Design (Month 1–3)
Topics to Master:
- Number systems, Boolean algebra
- Combinational circuits (decoders, adders, multipliers)
- Sequential circuits (flip-flops, counters, FSMs)
- Synchronous vs asynchronous design
- Setup/hold times and metastability
- Pipelining and basic low-power concepts
Device Basics:
- MOSFETs
- CMOS logic
- Noise margins
- Power–performance trade-offs
This is your foundation for everything in VLSI.
Stage 2 – HDL & RTL Design (Month 2–5)
Learn Verilog First
Understand:
- Always blocks
- Blocking vs non-blocking
- Synthesizable code
- Testbenches
- Waveform debugging
Then Learn SystemVerilog (Gradually)
- Interfaces
- Enums
- Modports
- OOP basics (useful for verification)
Mini Projects:
- ALU
- UART Tx/Rx
- SPI / I2C controller
- FIFO
- FSM-based designs (traffic light, vending machine)
Stage 3 – Understand the VLSI Design Flow (Month 3–6)
Every VLSI engineer must know these:
ASIC Flow
Specification → RTL → Verification → Synthesis → Netlist → Physical design → STA → Signoff → Tape-out
FPGA Flow
RTL → Synthesis → Implementation → Bitstream → Board testing
Key Topics:
- CDC (Clock Domain Crossing)
- Reset strategies
- Timing constraints
- Backend awareness (even if front-end)
Recruiters love candidates who understand the full flow.

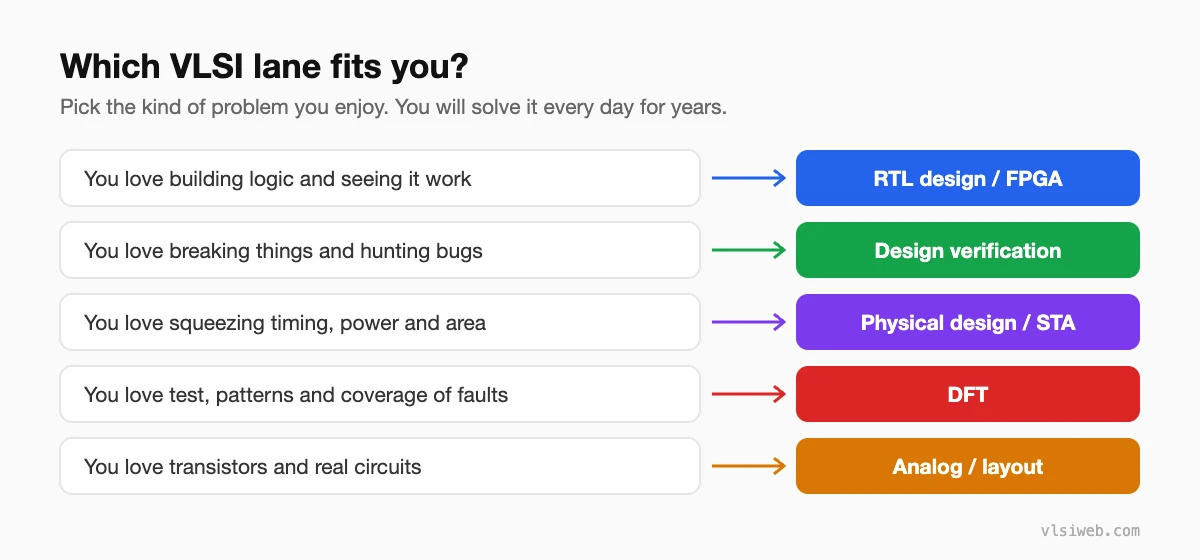

Stage 4 – Choose Your Specialisation (Month 4–8)
Use this simple guide:
- Love coding + debugging? → Verification
- Love circuits + logic + architecture? → RTL Design / FPGA
- Love timing + optimization? → Physical Design
- Love math + patterns? → DFT
- Love analog behavior? → AMS / Layout
Confused about where you can find resources to learn the basics? Then check out this guide: VLSI Resources
5. Detailed Skill Tracks for Freshers
Below are two major tracks: RTL/FPGA and Verification (most common for freshers).
Track A: RTL / FPGA Engineer Roadmap (0–12 Months)
Month 0–3 – Fundamentals
- Digital + Verilog
- Basic FPGA architecture (LUT/FF/BRAM/DSP)
Month 3–6 – RTL Projects
Build:
- UART
- SPI/I2C controllers
- FIFOs
- Arbiter
- CRC generator
- Parameterizable ALU
Month 6–9 – FPGA Toolchain
Learn:
- Synthesis
- Place & route
- Timing reports
- Clock constraints
- IO planning
Month 9–12 – Portfolio + Job Prep
- Clean GitHub repository
- 2–3 complete projects with architecture notes
- Resume focused on RTL/FPGA
- Start applying to startups + FPGA companies + design service firms
Track B: VLSI Verification Engineer Roadmap (0–12 Months)
Month 0–3 – Basics
- Verilog
- Basic testbench writing
Month 3–6 – SystemVerilog
Learn:
- Classes, randomization
- Constraints
- Covergroups
- Assertions
Month 6–9 – UVM Methodology
Master:
- Driver, monitor, scoreboard
- Agent, environment
- Sequences & sequencers
- Coverage-driven verification
- Regressions
Month 9–12 – Real Verification Projects
Verify:
- UART/SPI/I2C
- FIFO/Memory subsystem
- AXI/AMBA-lite protocols
- Small RISC core (advanced)
Build a UVM environment and showcase it on GitHub.
6. EDA Tools & Industry Exposure (Parallel 6–12 Months)
You don’t need expert-level tool experience, but you must understand categories:
Front-End Tools
- Simulation (Questa, VCS, Xcelium)
- Linting (SpyGlass)
- Formal tools
Back-End Tools
- Synthesis (Design Compiler)
- P&R (ICC2, Innovus)
- STA (PrimeTime)
Open-Source Tools (Easy to Start)
- Verilator
- Icarus Verilog
- Yosys
- OpenROAD
Even basic familiarity makes your profile stand out.
7. Resume, LinkedIn, GitHub & Job Strategy
This is where 90% of candidates fail.
Resume Tips
- Keep it 1 page
- Add: Skills → Tools → Concepts → Projects
- Highlight: Verilog/SystemVerilog, projects, GitHub links
- Avoid writing irrelevant subjects
LinkedIn Tips
- Use a professional banner
- Headline: Aspiring VLSI (RTL/Verification) Engineer | Verilog | SV | UVM (Learning)
- Post your learning journey weekly
GitHub Portfolio
- Upload all projects
- Clean folder structures
- Add README + architecture diagrams + waveforms
Job Application Strategy
- Apply to:
- Chip design startups
- FPGA companies
- Semiconductor service companies
- Training programs (with placement)
- Attend online VLSI events, workshops, and hackathons
Networking is as important as technical skills.
8. Future Trends in VLSI (2025–2030)
- Chiplets & multi-die architecture
- 3D-IC stacking
- AI-driven EDA tools
- RISC-V adoption
- Hardware security
- Automotive safety (ASIL standards)
- Advanced nodes (3nm → 2nm → 1.4nm)
These will create new job roles and opportunities.
9. Action Plans
3-Month Beginner Plan
- Master digital + Verilog
- Build 4–5 small projects
- Start SystemVerilog basics
6-Month Student Plan
- Learn SV + UVM
- Build one major project (UART/SPI/AXI)
- Create polished resume + LinkedIn
12-Month Serious Plan
- End-to-end ASIC/FPGA understanding
- 2–3 deep projects (RTL or Verification)
- Apply widely + network actively
Final Words
Reaching the end of this roadmap means you’ve already done something most students never do- you’ve taken the first real step toward your VLSI career.
That’s a huge achievement by itself.
The VLSI domain is deep, technical, and sometimes challenging, but it’s also incredibly rewarding. You’ll be building the chips that power the future: AI hardware, smart devices, EVs, satellites, and technologies we haven’t even imagined yet.
If you stay consistent for a few months, you will be far ahead of most freshers who are still “figuring things out.”
And if you stick with it for a year, you’ll have everything you need to enter the semiconductor industry with a strong foundation.
Whenever you feel lost, come back to this roadmap.
Every step you need is right here.
You’re not just preparing for a job – you’re preparing for a high-impact career.
The semiconductor world needs people like you. All the Best.
