Welcome to our new article on UVM TLM (Transaction Level Modeling) in chip design verification. In this article, we’ll explore how UVM TLM provides a highly efficient and flexible approach to chip design verification. By using TLM interfaces and transactions, developers can achieve a higher level of abstraction and encapsulation, simplifying the verification process and enhancing productivity.
Data representation is a critical aspect of chip design verification. With UVM TLM, data is represented as transactions, which are class objects that contain random, protocol-specific information. These transactions flow between components via TLM interfaces, allowing for a higher level of abstraction in the verification process. UVM (Universal Verification Methodology) provides a set of transaction-level communication interfaces that enable efficient and flexible verification processes.
Through UVM TLM, developers can represent data and changes in signals as transactions. This representation makes it easier to understand, debug, and verify different protocols. The use of UVM TLM in chip design verification brings several benefits, including high-level verification, reusability, and isolation of components from changes in other components.
In the sections to follow, we’ll delve deeper into the concepts of Transaction Level Modeling, the benefits it offers in chip design verification, the evolution of TLM versions, and the key concepts involved. We’ll also explain how TLM communication works, the use of FIFO for optimization, establishing TLM connections, handling speed mismatches, and the different types of connections—peer-to-peer and hierarchical. Finally, we’ll conclude with a summary of the advantages of UVM TLM in chip design verification.
Let’s get started with a detailed exploration of Transaction Level Modeling in chip design verification.
Table of Contents
Understanding Transaction Level Modeling
In Transaction Level Modeling (TLM), data is represented as transactions that flow between components via TLM interfaces. These interfaces provide a way to connect and transfer data packets between components, enabling efficient communication within a chip design verification process.
One of the main benefits of using TLM is the abstraction it provides. By abstracting the low-level details of signal connections, TLM allows developers to focus on the high-level behavior of the components. This abstraction makes the verification process more efficient, as it eliminates the need to deal with complex signal representation. Instead, developers can work with transactions, which provide a higher level of abstraction and encapsulation.
By representing data as transactions, TLM enables a more intuitive understanding of the design. The complexity of signal connections is hidden behind the simplicity of transactions, making it easier to debug and analyze different protocols. Furthermore, TLM promotes modularity by encapsulating components and isolating them from the complexities of other components. This modularity enhances code reuse and maintainability, ultimately improving development productivity.
Overall, understanding the concepts of TLM interfaces, abstraction, and signal representation is key to effectively harnessing the power of Transaction Level Modeling in chip design verification.
TLM interfaces
TLM interfaces provide a standardized way to connect and transfer data packets between components in a chip design verification process. They allow for seamless communication and enable the flow of transactions between components.
Abstraction
Abstraction in TLM involves hiding the low-level details of signal connections and focusing on the high-level behavior of components. This simplifies the verification process and helps in debugging and understanding the design.
Signal representation
In TLM, data is represented as transactions, which provide a more abstract and encapsulated view of the design. This abstraction makes it easier to work with different protocols and simplifies the verification process.
| TLM Concepts | Description |
|---|---|
| TLM interfaces | Interfaces that enable the flow of transactions between components. |
| Abstraction | Hiding low-level signal connection details to focus on high-level component behavior. |
| Signal representation | Representation of data as transactions for easier understanding and verification. |
Benefits of UVM TLM in Chip Design Verification
UVM TLM brings several benefits to the chip design verification process. One of the key advantages is the high-level verification it enables. By using TLM interfaces and transactions, we can verify components and systems at a higher level of abstraction, simplifying the verification process and reducing the complexity associated with different protocols.
High-level verification allows us to focus on the overall behavior of the components rather than getting bogged down in the details of signal connections. This approach enhances our understanding of the design and makes debugging and verification more efficient. With UVM TLM, we gain a broader perspective, ensuring that our verification efforts align with the system-level requirements.
Another significant benefit of UVM TLM is reusability. By isolating components from changes in other components, we can easily swap components without disrupting the overall design. This modularity and flexibility improve the efficiency of the design process and increase productivity. We can reuse verified, tested components in future projects, saving time and effort in the long run.
Moreover, UVM TLM promotes code reusability on a larger scale. By encapsulating the functionality and behavior of components into transactions, we can create highly reusable models that can be shared across multiple projects. This reuse not only saves time but also ensures consistency across designs and reduces the risk of errors.
In summary, UVM TLM offers high-level verification capabilities, reusability, and flexibility in chip design verification. By adopting this approach, we can streamline the verification process, increase productivity, and develop robust designs more efficiently.
| Benefits of UVM TLM in Chip Design Verification |
|---|
| High-level verification |
| Enhanced understanding of system-level behavior |
| Simplified verification process |
| Reduced complexity |
| Component reusability |
| Easy component swapping |
| Modularity and flexibility |
| Improved design efficiency |
| Code reusability |
| Consistency across designs |
| Reduced risk of errors |
Evolution of TLM Versions
In the realm of Transaction Level Modeling (TLM), the modeling style used in chip design verification, different versions of TLM have emerged over time. The initial version, TLM 1.0, was introduced in April 2005. It offered several noteworthy features including get, put, and transport request-response interfaces, providing a solid foundation for subsequent development.
Building on the success of TLM 1.0, TLM 2.0 was introduced as a draft in December 2006, followed by a second draft in November 2007, demonstrating the commitment to continuous improvement and refinement. In June 2008, the final version of TLM 2.0 was released, introducing unified interfaces and sockets that further enhanced the capabilities of TLM.
Recognizing the importance of fine-tuning and addressing minor concerns, TLM 2.0.1 was subsequently released in July 2009, incorporating additional refinements and enhancements to the TLM specification. These iterative updates demonstrated a commitment to continuous improvement and reinforcement of best practices within the TLM development community.
It is important to note that TLM, originally created for use with SystemC, was later incorporated into the Universal Verification Methodology (UVM) framework. While both SystemC and UVM versions of TLM share common foundational principles, there are some feature differences between the two, reflecting the specific needs and requirements of these distinct contexts.
| TLM Version | Release Date | Key Features |
|---|---|---|
| TLM 1.0 | April 2005 | get, put, and transport request-response interfaces |
| TLM 2.0 | June 2008 | Unified interfaces and sockets |
| TLM 2.0.1 | July 2009 | Minor additions to the TLM specification |
Key Concepts in TLM
Transaction Level Modeling encompasses several key concepts that contribute to its effectiveness in chip design verification. These concepts enable efficient data transfer and enhance modularity within the testbench.
Unidirectional Communication
In Transaction Level Modeling, components can communicate with each other in three ways: unidirectional, bidirectional, or broadcasting. Unidirectional communication allows for the transfer of data in a single direction, from a source component to a destination component. This type of communication is useful when data flows from one component to another without requiring a response. It offers simplicity and flexibility when establishing communication between components.
Broadcasting
Broadcasting is a powerful concept in TLM that facilitates the dissemination of information to multiple components simultaneously. It enables prompt and efficient communication in scenarios where multiple components need to receive the same data. Broadcasting eliminates the need for individual communication between the source component and each destination component, optimizing the transfer of information and reducing complexity in the testbench.
Modularity
Modularity is a fundamental principle of Transaction Level Modeling. It allows for the isolation of components, ensuring that changes in one component do not affect the functionality of others. This isolation is achieved through TLM connections established between TLM ports and exports. By modularizing the testbench, code reuse and maintainability are enhanced. Components can be individually developed, verified, and replaced without impacting the overall system, resulting in improved productivity and flexibility during the design and verification process.
Understanding TLM Communication
TLM communication plays a crucial role in the efficacy of transaction-level modeling. This form of communication follows a producer-consumer model, where one component functions as the producer, and another component acts as the consumer. The producer is responsible for sharing information, while the consumer receives and processes that information.
The producer initiates communication through the use of the put method. This method enables the producer to transfer information to the consumer. By invoking the put method, the producer encapsulates the relevant data in a transaction that is then passed to the consumer for further processing and analysis.
On the consumer side, communication is initiated through the get method. This method allows the consumer to request specific information from the producer. By invoking the get method, the consumer can access the desired data from the producer, enabling the consumer to perform any necessary computations, analysis, or validation.

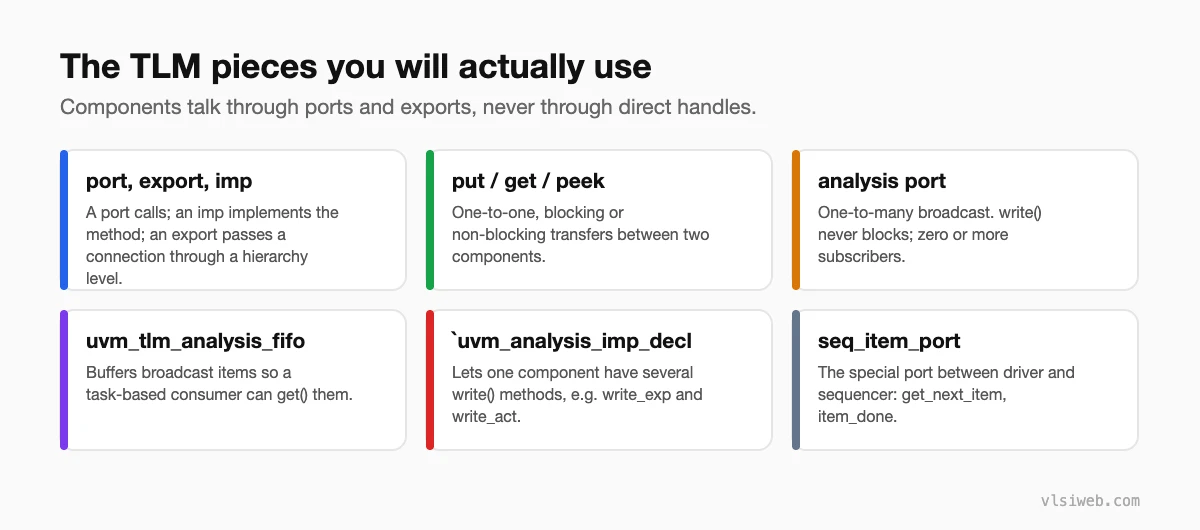

For effective communication to occur between components, TLM connections are established. These connections involve TLM ports and TLM exports, which facilitate the transfer of data and control between different components in the system.
Ports serve as the entry points for communication, defining the methods that can be called on a particular connection. They allow components to send and receive transactions, enabling the seamless flow of information within the system.
| Port | Purpose |
|---|---|
| Put port | Enables the component to initiate communication by using the put method to send transactions to the connected export. |
| Get port | Allows the component to request data from the connected export by utilizing the get method. |
Exports, on the other hand, define the implementation of those methods. They act as the counterpart to ports, receiving transactions from the connected port and providing the necessary functionality to respond to those requests.
By establishing TLM connections using ports and exports, the components in a system can communicate effectively, ensuring the seamless transfer of data and control throughout the system. This communication paradigm is crucial for complex designs, enabling efficient collaboration between various components and facilitating the verification process.
Using FIFO in TLM
TLM communication can be optimized using first-in-first-out (FIFO) mechanisms. We leverage the uvm_tlm_fifo, a built-in feature, which acts as a buffer between the producer and the consumer, facilitating efficient data transfer.
The FIFO operates according to the FIFO principle, where the producer uses the put method to insert transactions, and the consumer uses the get method to retrieve them. This ensures that transactions are processed in the order they were inserted, eliminating any data inconsistencies.
One of the main advantages of using a FIFO in TLM is its ability to handle speed mismatches between the producer and the consumer. In scenarios where the producer generates data at a high frequency while the consumer processes it at a lower frequency, the FIFO effectively manages the flow of information.
For instance, if the producer is producing data at a high frequency, but the consumer can only process it at a lower frequency, the producer is designed to wait for the previous transaction to be processed before inserting the next one into the FIFO. Similarly, if the consumer can process data at a higher frequency than the producer generates it, the consumer waits for the next transaction to be available in the FIFO.
The uvm_tlm_fifo also offers flexibility in communication methods. It provides both blocking and non-blocking methods, allowing developers to choose the optimal mechanism based on their specific requirements.
The blocking methods, such as put and get, ensure a synchronous operation, where the execution waits until the other process is ready. This method guarantees data integrity but may slow down the simulation if one process remains blocked for an extended period.
On the other hand, non-blocking methods like try_peek and try_put execute in zero simulation time, providing faster communication between the producer and the consumer. These methods allow the processes to continue without waiting for each other, which can be beneficial in situations where speed is a priority.
To summarize, using FIFO in TLM enhances the overall efficiency of the communication process by managing speed mismatches and providing flexibility through blocking and non-blocking methods.
| Advantages | Disadvantages |
|---|---|
| The FIFO ensures transactions are processed in the order they were inserted. | In some cases, blocking methods may slow down the simulation if one process remains blocked for an extended period. |
| The FIFO manages speed mismatches between the producer and the consumer. | Non-blocking methods may introduce potential data integrity issues if not handled carefully. |
| Flexibility in communication methods allows developers to choose the optimal mechanism. |
Establishing TLM Connections
TLM connections play a vital role in enabling effective communication between components in a chip design verification testbench. These connections are established using the connect method, which facilitates the linking of ports and exports of different components.
Peer-to-Peer Connections:
Peer-to-peer connections are typically used to connect components at the same hierarchical level. In this type of connection, the connect method is utilized to link the port of one component to the export of another component. This allows for direct communication between the connected components, facilitating data transfer and collaboration without the need for intermediary components.
Hierarchical Connections:
Hierarchical connections are employed when connecting ports to ports or exports to exports in components at different hierarchical levels. In this scenario, the connect method is called from the connect phase of the parent component. Hierarchical connections ensure seamless communication between components residing in distinct levels of the testbench hierarchy.
The syntax for establishing port-to-port and export-to-export connections is different, depending on the connection type. The connect method provides the flexibility and modularity required to create a well-structured and organized testbench.
Here’s an example of the syntax for establishing TLM connections:
“`
..connect(.)
“`
The above syntax links a port of the parent component to an export of the child component, establishing a hierarchical connection.
When establishing peer-to-peer connections, the syntax differs slightly:
“`
..connect(.)
“`
| Connection Type | Syntax |
|---|---|
| Peer-to-Peer | <component_instance_1>.<port_name>.connect(<component_instance_2>.<port_name>) |
| Hierarchical | <parent_component_instance>.<port_name>.connect(<child_component_instance>.<export_name>) |
TLM connections are essential for establishing clear communication pathways between components in a testbench. Whether it’s a peer-to-peer connection to facilitate collaboration at the same hierarchical level or a hierarchical connection to bridge components across different levels, the connect method ensures seamless data transfer and efficient verification processes.
Communication Between Components via TLM
In a TLM-based testbench, effective communication between components is essential for seamless data transfer. This communication is made possible through TLM ports and TLM exports.
TLM ports define the set of methods that need to be called for a particular connection. These methods serve as the interface for communicating with other components in the testbench. On the other hand, TLM exports provide the implementation of those methods, enabling the actual transfer of data between components.
To establish communication between two components, the appropriate methods need to be called using the following syntax:
<component_instance_name>.<port_name>.connect(<component_instance_name>.<export_name>)
This syntax connects the port of one component to the export of another component. By establishing these connections carefully, we ensure that the components in the testbench can communicate effectively, facilitating the seamless transfer of data and promoting a cohesive verification process.
| Component | Description |
|---|---|
| TLM Port | Defines the methods for communication and serves as the interface. |
| TLM Export | Implements the methods defined by the port, enabling data transfer. |
Handling Speed Mismatches in TLM
TLM provides mechanisms to address speed mismatches between the producer and the consumer, ensuring optimal simulation speed. When the producer and consumer operate at different frequencies, it can impact the simulation performance. To overcome this challenge, TLM offers both blocking and non-blocking methods.
Blocking Methods
Blocking methods, such as put and get, cause the execution to wait until the other process is ready. While these methods ensure synchronization between the producer and consumer, they can potentially lead to stalls in the simulation if one process remains blocked indefinitely.
Non-Blocking Methods
To facilitate faster communication and avoid simulation stalls, TLM provides non-blocking methods like try_peek and try_put. These methods execute in zero simulation time, allowing for smooth communication between components. By utilizing non-blocking methods, developers can maintain an optimal simulation speed even with speed mismatches.
By choosing the appropriate method based on the specific requirements of the design and simulation, developers can effectively handle speed mismatches in TLM and ensure smooth and efficient performance.
| Method | Description |
|---|---|
| Blocking Methods | put/get |
| Non-Blocking Methods | try_peek/try_put |
Peer-to-Peer and Hierarchical TLM Connections
TLM connections play a crucial role in facilitating effective communication between components in a testbench. These connections can be classified into two main types: peer-to-peer connections and hierarchical connections.
Peer-to-Peer Connections
Peer-to-peer connections are established between components that exist at the same hierarchical level within the component hierarchy. These connections are typically used when connecting ports to exports.
The syntax for establishing peer-to-peer connections is as follows: <sub_component_instance>.<port_name>.connect(<port_name_in_parent>). This syntax enables seamless communication between the components, ensuring the smooth transfer of data.
Hierarchical Connections
Hierarchical connections, on the other hand, involve components at different hierarchical levels within the component hierarchy. These connections are made by connecting ports to ports or exports to exports.
The syntax for establishing hierarchical connections is as follows: <export_name_in_parent>.connect(<sub_component_instance>.<export_name>). By using this syntax, the organization and structure of the component hierarchy can be maintained, allowing for effective communication between components.
Both peer-to-peer connections and hierarchical connections are essential for creating a well-structured and modular testbench, ensuring that the components can communicate seamlessly with each other.
Example:
To better illustrate the concepts of peer-to-peer and hierarchical TLM connections, consider the following scenario:
| Component | Port | Export |
|---|---|---|
| ParentComponent | in_port | out_export |
| SubComponent | out_port | in_export |
In this example, the parent component, ParentComponent, has an input port called in_port and an output export called out_export. The subcomponent, SubComponent, has an output port called out_port and an input export called in_export.
To establish a peer-to-peer connection between ParentComponent and SubComponent, we would use the following syntax: SubComponent.out_port.connect(ParentComponent.out_export). This connection allows data to flow from the output port of SubComponent to the output export of ParentComponent.
To establish a hierarchical connection between ParentComponent and SubComponent, we would use the following syntax: ParentComponent.out_export.connect(SubComponent.in_export). This connection enables data transfer between the output export of ParentComponent and the input export of SubComponent.
By utilizing peer-to-peer and hierarchical TLM connections, we can create a robust and efficient testbench that facilitates seamless communication between components, ensuring the smooth transfer of data and improving the overall quality of the chip design verification process.
Conclusion
UVM TLM, or Transaction Level Modeling, is a highly efficient and flexible approach to chip design verification. By utilizing TLM interfaces and transactions, we can achieve a higher level of abstraction and encapsulation, simplifying the verification process and improving productivity. The seamless communication between components through TLM connections, such as peer-to-peer and hierarchical connections, ensures a smooth transfer of data.
With the benefits of modularity, reusability, and isolation, UVM TLM significantly enhances the efficiency of chip design verification. Integrating UVM TLM in the verification process leads to more robust and reliable designs, reducing time-to-market for cutting-edge electronic products. It allows us to focus on high-level verification, simplifying the complexity of different protocols.
Overall, UVM TLM empowers us to verify chip designs effectively and efficiently, improving productivity and ensuring the successful development of state-of-the-art electronic components. By leveraging TLM interfaces and transactions, we can achieve an optimal level of abstraction, making the verification process more manageable, and the designs more reliable.
