When it comes to creating an effective verification plan for chip design, UVM sequences play a crucial role. These sequences are an essential component that helps define and execute stimulus in a structured and reusable manner. By following specific steps, engineers can leverage UVM sequences to streamline the chip design process and improve verification effectiveness.
One key aspect of UVM sequences is their class hierarchy. The hierarchy is based on the uvm_sequence class, which serves as the foundation for creating custom sequences. Understanding this hierarchy is vital for creating and implementing UVM sequences successfully.
In this article, we will dive into UVM sequences and explore the steps required to create them. We will also discuss the importance of UVM sequences in a verification plan and how they contribute to the overall chip design process. Let’s get started!
Table of Contents
Creating a UVM Sequence
When it comes to implementing a UVM verification plan, creating UVM sequences is a fundamental step. A UVM sequence consists of a series of data items that are executed by a sequencer and sent to the driver for further processing. To create a UVM sequence, we need to follow a few important steps.
Step 1: User-Defined Class
To begin, we must create a user-defined class that inherits from the uvm_sequence base class. This class will serve as the foundation for our UVM sequence and house all the necessary methods and functionalities.
Step 2: Register with Factory
Next, we register our user-defined class with the factory using the uvm_object_utils macro. This registration process allows us to make our UVM sequence class reusable and easily accessible throughout the verification environment.
Step 3: The Body Method
The body method is where the core functionality of our UVM sequence resides. In this method, we define the stimulus or actions that our sequence performs. It is within the body method that we can utilize UVM features such as randomization, constraints, and callbacks to control the behavior of our UVM sequence and generate the desired stimuli.
Additionally, we have the option to use the pre_body and post_body tasks for any necessary setup or teardown procedures that need to occur before and after the body method. These tasks provide a convenient way to initialize and clean up resources associated with the UVM sequence.
By following these steps, we establish a solid foundation for creating UVM sequences that can be used to drive stimulus and generate test scenarios within our verification environment. Let’s see a visual representation of these steps in the table below:
| Step | Description |
|---|---|
| Step 1 | Create a user-defined class |
| Step 2 | Register the class with the factory |
| Step 3 | Define the body method for stimulus generation |
Now that we have a clear understanding of how to create a UVM sequence, let’s move on to Section 3, where we’ll explore an example of implementing a UVM sequence in more detail.
UVM Sequence Example
Now that we understand the basics of creating a UVM sequence, let’s dive into a practical example. This example will demonstrate the implementation of a UVM sequence using inheritance, factory registration, and the `uvm_do macro.
To begin, we start by creating a new class that inherits from the uvm_sequence class. This inheritance allows our sequence to inherit all the necessary functionality and properties of the base class. It provides a foundation for building upon and customizing our sequence.
Once the class is defined, we need to register it with the factory to make it reusable. We achieve this by using the `uvm_object_utils macros. Factory registration enables us to create multiple instances of the sequence throughout our verification environment.
Now, let’s take a closer look at the body method. This method is where we define the sequence’s behavior and stimulus. Inside the body method, we can manipulate variables, generate transactions, and perform various operations to drive the testing process.
In our example, we will showcase the usage of the `uvm_do macro. This macro simplifies the process of allocating an object, randomizing its fields, and sending it to the default sequencer for execution. It helps streamline our code and makes the implementation more concise and readable.
UVM Sequences and UVM Sequence Items
UVM sequences play a crucial role in the verification process by acting as containers for UVM sequence items. These sequence items are the building blocks of the stimulus generated to test the design under test (DUT). They are sent from the sequencer to the driver to drive the required transactions.
UVM sequences provide a structured and reusable way to shape transactions and generate multiple transactions for testing purposes. They are extended from the uvm_sequence class and work in conjunction with the driver and sequencer components.
The container aspect of UVM sequences allows engineers to encapsulate sets of related sequence items, making it easier to manage and maintain the testbench code. By grouping sequence items within a sequence, engineers can organize and control the ordering of the transactions being sent to the DUT.
Furthermore, the relationship between UVM sequences, the driver, and the sequencer enables seamless communication between these components. UVM sequences generate the stimulus and shape transactions, the sequencer coordinates the sequencing of the transactions, and the driver ensures the transmission of these transactions to the DUT. This collaborative effort ensures efficient and effective verification of the design.

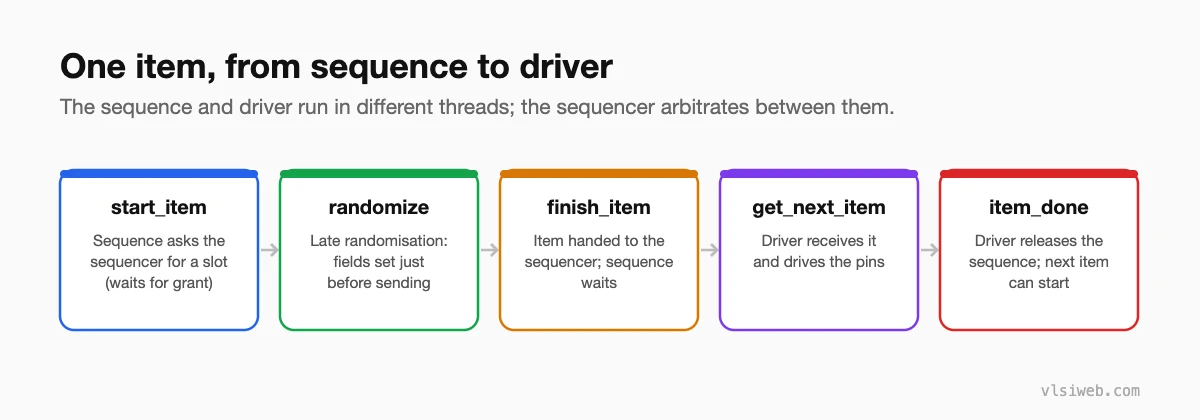

To better understand the flow of information, the following diagram illustrates how UVM sequences, UVM sequence items, the sequencer, and the driver interact:
Interaction between UVM Sequences, UVM Sequence Items, Sequencer, and Driver
| Component | Description |
|---|---|
| UVM Sequence | Acts as a container for UVM sequence items. Generates and shapes transactions for testing purposes. |
| UVM Sequence Item | Represents individual stimulus or transactions. Can be customized and extended as per testing requirements. |
| Sequencer | Coordinates the sequencing of the transactions generated by UVM sequences and sends them to the driver for transmission to the DUT. |
| Driver | Receives the transactions from the sequencer and transmits them to the DUT for testing. |
The interaction between these components forms a crucial part of the overall verification environment in UVM. UVM sequences, with their ability to shape and generate transactions, contribute significantly to the effectiveness and efficiency of the verification process.
Transactions in UVM
In a verification environment, transactions play a crucial role in modeling communication between components. They are class objects that facilitate the exchange of data and information within the system. Transactions encompass variables, constraints, and methods that allow them to operate on themselves, providing a high level of abstraction.
Transactions form the smallest data transfers in a verification model. They are designed to be reusable and extensible, making them suitable for different tests and scenarios. By creating transactions, engineers can define and manipulate the data flow between components with ease.
Unlike traditional communication protocols, transactions are not dependent on the specific communication mechanisms employed by the components. They provide a generic representation of the communication process, allowing for flexibility and adaptability in the verification environment.
Through transactions, components can exchange information, synchronize operations, and trigger specific behaviors. Whether it’s a read, write, or other communication action, transactions encapsulate the necessary data and operations to achieve the desired behavior.
Let’s take a closer look at the key components of transactions:
- Variables: Transactions include variables that hold the necessary data to be exchanged between components. These variables can represent various types of data, such as addresses, data values, control signals, and more.
- Constraints: Constraints define conditions or restrictions on transaction variables. They ensure that the data being exchanged meets specific requirements, such as valid ranges, data dependencies, and timing constraints.
- Methods: Transactions also contain methods that operate on the encapsulated data. These methods allow for data manipulation, validation, and other operations that help achieve the desired behavior during the verification process.
With transactions, engineers can effectively model the communication between components in a verification environment. They provide a flexible and reusable foundation for building complex verification testbenches. By understanding the role and structure of transactions, engineers can design robust and efficient verification methodologies.
| Transactions in UVM | Benefits |
|---|---|
| Enables modeling of communication between components | Provides a high level of abstraction |
| Includes variables, constraints, and methods | Facilitates data transfer and manipulation |
| Supports reusability and extensibility | Increases efficiency in testbench development |
| Decouples communication from specific protocols | Offers flexibility and adaptability |
Creating a Transaction
In UVM, transactions are an integral part of the verification process. They allow us to model the communication between different components and facilitate data transfer within the verification environment. In this section, we will explore the process of creating a transaction in UVM, discussing the use of extended classes, variables, constructor functions, and UVM macros.
Extended Classes
When creating a transaction, it is common to extend the uvm_transaction or uvm_sequence_item classes provided by UVM. These base classes provide a foundation for defining the structure and behavior of our transactions. By extending these classes, we can add custom functionality and data members specific to our testing requirements.
Variables
Transactions involve the transfer of data between different components. To facilitate this, we include variables within our transaction class to represent the information being transferred. These variables can be of any data type relevant to our design and testing needs. By defining these variables within our transaction class, we provide a structured and organized approach to data transfer.
Constructor
A constructor function is used to initialize the variables within our transaction class. This function is automatically called when creating a new instance of the transaction. By including a constructor, we can ensure that our transaction starts with the appropriate default values or is initialized based on specific requirements before being sent for testing.
UVM Macros
UVM provides a set of macros that can be used to simplify the declaration of fields within our transaction class. These macros, such as UVM_FIELD_*, help us define and manage the various fields and variables within our transaction. By using these macros, we can improve code readability and reduce the chance of errors when working with transactions.
By combining extended classes, variables, constructors, and UVM macros, we can create well-structured and reusable transactions within UVM. The example below demonstrates the creation of a simple transaction class with these elements:
| Data Member | Description |
|---|---|
| address | The address of the transaction |
| data | The data associated with the transaction |
| command | The command or opcode of the transaction |
In the example above, we create a transaction class with three variables: address, data, and command. These variables represent the address, data, and command associated with our transaction. With the help of UVM macros and a constructor function, we can easily initialize and manage these variables within our transaction.
By following the guidelines and best practices for creating transactions in UVM, we can effectively model and simulate the communication between different components in our verification environment.
Extending a Transaction
To further showcase the flexibility and efficiency of UVM, we can extend transactions by adding additional variables for different tests. This approach allows us to reuse existing transactions instead of rewriting new ones, saving valuable time and effort in the verification process.
By extending a transaction, we can easily tailor it to suit specific testing requirements without starting from scratch. This technique is particularly useful when we need to introduce new variables to capture additional test scenarios or specific data points.
Let’s consider an example where we have a base transaction that contains essential variables for our initial test. However, for a subsequent test, we need to include an additional variable to capture a specific condition or behavior.
Instead of creating a new transaction class from scratch, we can extend the existing transaction and add the necessary variable to it. This allows us to leverage the existing functionality and structure of the base transaction, while seamlessly integrating the new variable.
Through the concept of extending transactions, UVM empowers us to build upon existing work and adapt it to evolving testing needs. This capability not only promotes code reuse but also enhances the overall efficiency of the verification process.
Creating a Sequence
Sequences in UVM play a crucial role in the verification process. They are ordered collections of transactions that shape and generate multiple transactions to fit specific testing needs. By creating UVM sequences, we can effectively prepare and send transactions to the driver component for execution.
The UVM sequence class serves as the foundation for creating sequences. It allows us to define the sequence’s behavior and actions. Within the sequence class, the body task is where we generate and send transactions to the sequencer, ensuring a seamless flow of activity.
A Step-by-Step Guide to Creating a UVM Sequence
- Create the sequence class: Begin by creating a user-defined class that extends the uvm_sequence class. This class will serve as the blueprint for your sequence and must include the necessary methods and properties.
- Define the body task: Within the sequence class, define the body task. This task is responsible for generating the sequence of transactions based on the desired testing scenario. It shapes and prepares the transactions for later execution.
- Add transactions to the sequence: To generate and shape transactions, add them within the body task. You can create transactions manually or use existing transaction classes, depending on your requirements.
- Send transactions to the sequencer: Once the transactions are generated and shaped, send them to the sequencer for execution. The sequencer will then forward them to the driver component for processing.
Here is an example of a UVM sequence class:
class my_sequence extends uvm_sequence;
`uvm_object_utils(my_sequence)
virtual task body();
// Generate and shape transactions
my_transaction tr = new();
tr.data = 32'h12345678;
...
// Send transactions to the sequencer
seq_item_port.write(tr);
endtask
endclass
The above example demonstrates a basic sequence creation process. However, the actual implementation may vary based on your specific testing requirements.
Now that we have explored how to create a UVM sequence, let’s move on to understanding the role of the sequencer component in the verification flow.
| Advantages of Creating a Sequence | Challenges of Creating a Sequence |
|---|---|
|
|
The Role of the Sequencer
The sequencer in UVM plays a crucial role in the verification process by facilitating the sending of sequences to the driver. As an extension of the uvm_sequencer class, the sequencer acts as a bridge between the sequence and driver components. Its primary function is to retrieve transactions from the sequence and deliver them to the driver for execution.
The sequencer’s responsibility is fundamental in ensuring the effective flow of stimuli within a verification environment. It enables the synchronization and coordination of sequences, ensuring that they are executed in the correct order and timing. By controlling the sequence of transactions, the sequencer ensures that the design under test receives the necessary stimuli to validate its functionality.
In simple environments, the default API provided by UVM is often sufficient to perform sequencing operations. This predefined interface offers a convenient and straightforward way to handle sequence execution and delivery. It simplifies the process by providing a set of default methods and utilities, reducing the complexity of implementing custom sequencing logic.
- Retrieving transactions from the sequence
- Managing sequencing order and timing
- Routing transactions to the appropriate driver
- Handling arbitration and prioritization within the sequencer
Beyond these basic functions, the sequencer can be customized to fit specific verification requirements. This adaptability allows engineers to tailor the sequencer’s behavior based on the design under test and testing objectives. Custom sequencing logic can be implemented to handle complex scenarios, such as transaction reordering or specialized arbitration schemes.
In conclusion, the sequencer acts as a vital component in the UVM verification process, enabling the smooth transmission of sequences to the driver. With its role in managing sequencing, timing, and transaction delivery, the sequencer plays a pivotal role in ensuring comprehensive and effective verification of chip designs.
Connecting the Sequence and Sequencer
In the UVM verification environment, the connection between the sequence and sequencer is established through the test block. This vital component is responsible for coordinating the execution of various elements, including the sequence and sequencer. By orchestrating the flow of stimuli and transactions, the test block ensures seamless communication between the sequence and sequencer.
The test block acts as the central coordinating entity that orchestrates the overall verification process. It controls the execution of components such as sequences, sequencers, drivers, and monitors, ensuring that every element operates in harmony to achieve the desired verification goals.
Through the test block, the sequence instructs the sequencer to generate and send transactions to the driver. The sequencer, in turn, receives the instructions from the test block and manages the distribution of these transactions to the appropriate driver or monitor. This coordination ensures that the generated stimuli in the sequence are effectively delivered to the design under test (DUT) for thorough verification.
The connection between the sequence and sequencer within the test block is critical for the success of the verification process. It facilitates the synchronized execution of sequences and ensures that they operate seamlessly with the sequencer and other verification components. This seamless connection enables efficient and effective verification, enabling engineers to identify and resolve potential issues in the DUT.
Example code:
// Test block implementation
class test_block extends uvm_test;
// Components declaration
sequence my_sequence;
sequencer my_sequencer;
driver my_driver;
monitor my_monitor;
// Connections within the test block
virtual function void build_phase(uvm_phase phase);
// Instantiate the components
my_sequence = sequence::type_id::create("my_sequence");
my_sequencer = sequencer::type_id::create("my_sequencer");
my_driver = driver::type_id::create("my_driver");
my_monitor = monitor::type_id::create("my_monitor");
// Connect the components
my_sequence.seq_item_port.connect(my_sequencer.seq_item_export);
my_sequencer.sequencer_port.connect(my_driver.sequencer_export);
my_driver.monitor_port.connect(my_monitor.driver_export);
endfunction
endclass
This image illustrates the connection between the sequence and sequencer within the test block. The sequence instructs the sequencer to generate transactions, which are then sent to the driver for execution. This flow of stimuli ensures effective communication between the sequence and sequencer, facilitating comprehensive verification of the DUT.
Conclusion
In conclusion, UVM sequences play a critical role in the creation and execution of effective verification plans in chip design. They provide a structured and reusable approach to defining and driving stimulus, improving the efficiency of the chip design process. By following the steps to create a UVM sequence, engineers can streamline their workflows and enhance verification effectiveness.
Understanding the relationship between sequences, sequencers, and transactions is key to mastering UVM verification methodologies. UVM sequences act as containers for UVM sequence items, shaping transactions and generating multiple transactions for testing purposes. They work in conjunction with the driver and sequencer components to drive stimulus into the design under test (DUT).
By leveraging the power of UVM sequences, engineers can enhance their chip design process, ensuring reliable and robust designs. UVM sequences enable engineers to create well-structured verification plans, improving productivity and reducing time-to-market. With a clear understanding of UVM sequences, engineers can confidently navigate the complexities of chip design verification.
