The UVM Scoreboard is a powerful verification component that plays a crucial role in ensuring the functionality and correctness of your design. As professional verification engineers, we understand the importance of a robust and reliable verification process, which is why we turn to the UVM Scoreboard to enhance our verification efforts.
At its core, the UVM Scoreboard receives transaction level objects from the interfaces of the Design Under Test (DUT) via TLM Analysis Ports. This invaluable component compares expected values with the actual values received from the DUT and provides an in-depth analysis to determine if they match. By leveraging a reference model or performing calculations, the scoreboard generates the expected values required for accurate verification results.
Creating a UVM Scoreboard involves following a few key steps, including creating a custom class inherited from the uvm_scoreboard class, defining the necessary TLM exports, implementing actions for received data, performing checks, and connecting the analysis ports. This process empowers us to seamlessly integrate the scoreboard into our verification environment, making it an invaluable tool for verifying the functionality of our designs.
By incorporating a UVM Scoreboard into your verification process, you can enjoy enhanced verification capabilities and gain confidence in the correctness of your design. Whether you are an experienced verification engineer or a novice in the field, the UVM Scoreboard simplifies and streamlines your verification efforts, paving the way for greater efficiency and productivity.
In the upcoming sections of this article, we will delve deeper into the functionality and usage of the UVM Scoreboard. From understanding the different types of scoreboards and their implementation techniques to connecting analysis ports and real-world examples, we will provide you with the knowledge and insights you need to effectively leverage the power of the UVM Scoreboard in your verification environment.
Table of Contents
What is a UVM Scoreboard?

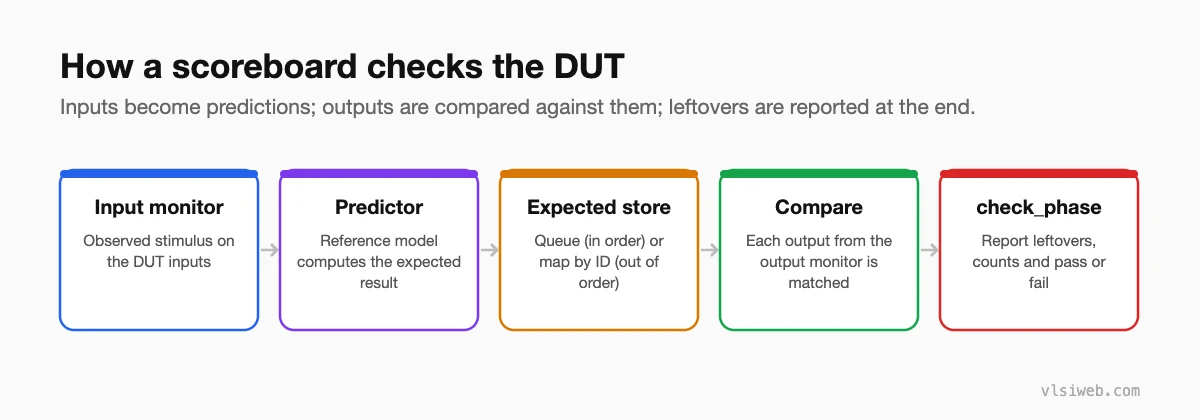

A UVM scoreboard is a crucial verification component that ensures the functionality of a design by receiving transaction level objects from the interfaces of a Design Under Test (DUT) through Transaction Level Modeling (TLM) Analysis Ports. It compares the expected values with the actual values received from the DUT to determine whether they match. This verification process plays a vital role in ensuring the correctness of the design under test.
How to Create a UVM Scoreboard
To create a UVM scoreboard, we need to follow a series of steps. Let’s dive into the process of creating a UVM scoreboard from scratch:
Step 1: Create a Custom Class
The first step is to create a custom class that inherits from the uvm_scoreboard class. This custom class will serve as the foundation for our UVM scoreboard implementation.
Step 2: Register the Custom Class
After creating the custom class, we register it with the factory using the uvm_*object_registry::add() method. This registration step ensures that the custom class is recognized and can be used throughout the UVM framework.
Step 3: Add TLM Exports
Next, we need to add TLM (Transaction-Level Modeling) exports to our UVM scoreboard. TLM exports allow our scoreboard to receive transactions from other components in the verification environment. These transactions will be used for analysis and comparison.
Step 4: Define Action for Received Data
Once the TLM exports are in place, we define the action to be taken when data is received from the analysis port. This action can vary depending on the specific requirements of the verification testbench. It may involve data processing, analysis, or triggering additional actions.
Step 5: Perform Checks in the Check Phase
In the check phase of our UVM scoreboard, we perform checks to ensure the correctness of the received data. This includes comparing the expected values with the actual values and detecting any mismatches or discrepancies. The check phase is a critical step in the verification process.
Step 6: Connect Analysis Ports
To enable data flow between the UVM scoreboard and other components in the verification environment, we need to connect the analysis ports of the scoreboard. This can be achieved by calling the appropriate connection functions and establishing the necessary connections.
By following these steps, we can successfully create a UVM scoreboard and incorporate it into our verification environment. This scoreboard will play a vital role in analyzing and validating the functionality of our design.
Now that we have a clear understanding of how to create a UVM scoreboard, let’s move on to examples and further discussions in the upcoming sections.
UVM Scoreboard Example
Let’s take a look at an example of a UVM scoreboard to understand its structure and functionality. In this example, we have created a class that is inherited from the uvm_scoreboard class and registered it with the factory. This allows us to leverage the capabilities inherited from the base class and ensures compatibility with future updates.
Our UVM scoreboard example includes an analysis port, ap_imp, which is used to receive transactions of a specific type from other components in the verification environment. The analysis port acts as the input interface for the scoreboard, feeding it with the transactions to be analyzed.
To handle the incoming transactions, we have implemented the write method. This method is responsible for processing the received packets and displaying the relevant data. It provides a centralized location for handling the incoming transactions and performing any necessary pre-processing steps.
In the run_phase, the UVM scoreboard performs a crucial task of comparing the expected and actual transactions. This comparison allows us to identify any mismatches or discrepancies in the behavior of the design under test (DUT). By comparing the expected and actual transactions, we can analyze the correctness and functionality of the DUT, enabling us to identify any potential issues or bugs.
Example UVM Scoreboard Structure
Class Description UVM Scoreboard Inherited from uvm_scoreboardAnalysis Port ap_imp(Input port for receiving transactions)Write Method Handles incoming packets and displays the received data Run Phase Compares expected and actual transactions for analysis
This UVM scoreboard example gives us a clear understanding of the structure and functionality of a typical scoreboard implementation. It demonstrates how we can inherit from the uvm_scoreboard class, utilize an analysis port to receive transactions, implement the write method for handling incoming packets, and compare the expected and actual transactions to analyze the behavior of the design under test.
By following this example, we can create our own custom UVM scoreboards tailored to our specific verification needs, enhancing the overall accuracy and efficiency of the verification process.
How to Connect Analysis Ports of UVM Scoreboard
Connecting the analysis ports of a UVM scoreboard is an essential step in enabling the flow of data between the scoreboard and the monitor. By establishing these connections, we can ensure that the scoreboard receives the necessary information for analysis and comparison. To connect the analysis ports of a UVM scoreboard, follow these steps:
- Instantiate the scoreboard in the environment: In the environment, create an instance of the UVM scoreboard class that you wish to use.
- Call the connect_phase function: Within the connect_phase function of the environment, establish connections between the analysis port of the scoreboard and the monitor. This step allows for the transfer of data from the monitor to the scoreboard.
- Connect the analysis port of the monitor: In the connect_phase function, connect the analysis port of the monitor to the analysis export of the scoreboard. This connection ensures that the scoreboard receives the data broadcasted by the monitor.
Once these connections are in place, the scoreboard will be able to receive data from the monitor via the analysis ports. This data can then be utilized for further analysis and comparison, enabling comprehensive verification of the design under test.
| Step | Description |
|---|---|
| 1 | Instantiate the scoreboard in the environment |
| 2 | Call the connect_phase function |
| 3 | Connect the analysis port of the monitor |
By following these steps, you can successfully connect the analysis ports of a UVM scoreboard, allowing for effective data transfer and analysis in the verification process.
UVM Scoreboard Types: In-Order vs. Out-of-Order
When it comes to UVM scoreboards, there are two main types: in-order and out-of-order. Each type serves a specific purpose and caters to different design requirements. Understanding the differences between these types is crucial in selecting the appropriate scoreboard for your verification process.
In-Order Scoreboard
The in-order scoreboard is designed for scenarios where the expected output order matches the driven input stimuli. In this type of scoreboard, the expected and actual transactions arrive independently, but the evaluation process must block until both the expected and actual transactions are present.
This blocking mechanism ensures that the comparison is performed only when all data is available, allowing for accurate verification of the design’s functionality.
Out-of-Order Scoreboard
The out-of-order scoreboard, on the other hand, is suitable for designs with a different output order than the driven input stimuli. In such cases, the scoreboard utilizes an associative array to store unmatched transactions until the corresponding output is received for comparison.
This approach provides the flexibility needed to handle designs with complex output sequencing, allowing for a more comprehensive verification process. The associative array acts as a temporary storage for unmatched transactions, enabling the scoreboard to match and compare them once the corresponding output is available.
By distinguishing between in-order and out-of-order scoreboards, we can choose the most appropriate type based on the expected output order and the design specifications. Each type offers unique advantages in enhancing the verification process and ensuring the correctness of the design under test.
Example: Associative Array Usage
Here’s an example that demonstrates the usage of an associative array in an out-of-order scoreboard:
In the above example, the associative array is used to store unmatched transactions until the corresponding output is received. The index value serves as the key to store transactions in the expected and actual arrays. Once the output transaction is received and has a matching index, the entries in the arrays are compared and processed accordingly.
By leveraging the power of associative arrays, the out-of-order scoreboard enables efficient handling of complex design scenarios with non-linear output sequencing.
With a clear understanding of the differences between in-order and out-of-order scoreboards, we can choose the most suitable type for our verification process, ensuring accurate and comprehensive verification of design functionality.
Implementing In-Order Scoreboard
When it comes to implementing an in-order scoreboard, there are a few key techniques that can simplify the process. One such technique is the use of TLM analysis FIFOs (First-In, First-Out) to handle transactions more efficiently.
To begin, it is essential to connect the analysis port of the monitor to the analysis export of the scoreboard. This connection enables the transmission of input and output transactions between the monitor and the scoreboard. By establishing this connection, we ensure a seamless flow of data for analysis and comparison.
Once the connections are in place, the scoreboard can receive transactions from the TLM analysis FIFOs. These FIFOs act as temporary storage for transactions, allowing for smoother handling and management.
With the transactions received from the FIFOs, the scoreboard performs comparisons between the expected and actual transactions. This step is crucial to identify any discrepancies or mismatches that may occur during the verification process.
If the scoreboard detects mismatches between the expected and actual transactions, appropriate actions can be taken. For example, error handling procedures can be implemented to flag and report any issues that arise.
Overall, implementing an in-order scoreboard with TLM analysis FIFOs simplifies the verification process by streamlining the handling of transactions and enabling efficient comparison. This approach enhances the overall productivity and effectiveness of the verification environment.
Implementing Out-of-Order Scoreboard
When it comes to implementing an out-of-order scoreboard, one effective approach is to utilize an associative array. This allows us to store transactions until both the expected and actual transactions are available for comparison.
The associative array works by using an index value to store transactions in the expected and actual arrays. As transactions arrive, they are stored in the associative array based on their index value. When a transaction’s corresponding output is received, the entries in the arrays are compared and any matched index entries are deleted to free up memory.
This implementation strategy enables flexible handling of transactions with different output orders, which is particularly useful in designs where the output order may deviate from the driven input stimuli. By using the associative array, we can effectively manage and compare transactions, ensuring the accuracy of our verification process.
Let’s take a look at an example:
| Expected Transactions | Actual Transactions |
|---|---|
| Transaction 0 | Transaction 0 |
| Transaction 1 | Transaction 3 |
| Transaction 2 | Transaction 1 |
| Transaction 3 | Transaction 2 |
In this example, the expected and actual transactions are stored in separate arrays. As each actual transaction is received, the associative array compares it with the expected transaction at the corresponding index. If a mismatch is found, it can be flagged as an error.
With this implementation, the out-of-order scoreboard provides valuable feedback on any mismatches found in the expected and actual transactions. This helps identify potential issues within the design and ensures the verification process is thorough and accurate.
By implementing an out-of-order scoreboard, we enhance our ability to handle transactions with varying output orders, ultimately strengthening the reliability of our verification process.
Conclusion
In conclusion, the UVM scoreboard is a vital component in the verification process, ensuring the functionality and correctness of a design. By following the steps to create and connect a UVM scoreboard, you can enhance your verification process and achieve accurate results. The simplicity of implementation allows for easy integration into your verification environment, leading to a productive workflow.
Implementing either an in-order or out-of-order scoreboard offers flexibility based on the specific requirements of your design. Whether you need to match expected output order or handle transactions with different output order, the UVM scoreboard provides the necessary functionality. With a well-implemented scoreboard, you can navigate the verification process smoothly, just like using a working keyboard that enables effortless typing.
By adopting a UVM scoreboard, you can effectively verify the functionality of your design, simplify your verification process, and gain productivity. Ensure that your implementation is straightforward and optimized for efficiency. Harness the power of the UVM scoreboard to attain accurate and reliable verification results, allowing you to confidently proceed with your design development.
