What are Registers and Register Blocks?
In the world of hardware designs, registers play a crucial role. These components serve as the storage units for configuration settings, control information, and status data within a digital design. They can be accessed and programmed by software or firmware using bus protocols like AXI/APB. Register blocks, on the other hand, provide a higher-level abstraction that represents collections of registers within a design.
With the growing complexity of hardware designs, organizing and managing registers efficiently becomes paramount. Register blocks offer a way to encapsulate and group related registers, making it easier to handle intricate designs with multiple registers and associated logic. By grouping registers together, verification and testing become more convenient, ensuring smooth operation of the overall system.
In summary, registers and register blocks are essential components in hardware designs. Registers store critical information, while register blocks provide a structured approach for organizing and managing these registers. Together, they form the building blocks of efficient hardware design and verification processes.
Understanding Memory Maps
A memory map is a crucial aspect of System-on-Chip (SoC) design, defining the arrangement of memory and memory-mapped peripheral registers within the address space. It provides a logical representation of the addresses at which various components, such as memory regions, registers, and peripherals, are accessible by the processor and other devices in the system. This mapping is essential for efficient communication and interaction between the processor and different system components.
In an SoC, each peripheral module is associated with a register block, which contains the registers specific to that module. These register blocks are laid out in the memory map, indicating their positions and addresses within the overall address space. By organizing the registers in this way, the system designer can ensure efficient access and management of register-based functionalities.
The processor interacts with the peripheral modules and their register blocks using a peripheral bus protocol, such as APB (Advanced Peripheral Bus) or Wishbone. The protocol, along with the base addresses and offsets, allows the processor to successfully access and communicate with the registers in the memory map. This enables the processor to read from and write to the registers, control the behavior of the peripheral modules, and retrieve important status and configuration information.
By having a clear understanding of the memory map and its corresponding address space, designers can effectively navigate and utilize the resources available in the system. This knowledge is essential for tasks like configuring peripherals, managing interrupts, and ensuring efficient data transfer between different parts of the SoC. An accurate and well-defined memory map is crucial for achieving optimal performance and functionality in System-on-Chip designs.
Benefits of Memory Maps:
- Facilitates efficient communication between the processor and peripheral modules.
- Enables easy access and management of memory regions, registers, and peripherals.
- Ensures proper configuration and control of system components.
- Optimizes memory usage and resource allocation in the SoC.
Challenges in Memory Mapping:
- Address space constraints and conflicts.
- Deciding the optimal positioning of memory regions and register blocks.
- Handling overlapping address ranges and resolving address decoding issues.
Introduction to Register Abstraction Layer (RAL)
Register Abstraction Layer (RAL) is a structured and standardized approach that plays a crucial role in the efficient verification of registers and memory-mapped structures in a digital design.
RAL provides a set of classes and APIs to create a register model hierarchy that accurately reflects the registers and fields present in the design. This hierarchical representation simplifies the verification process by enabling various access scenarios to be tested and field values to be checked after resets. It also facilitates the verification of register side-effects and other critical functionalities, ensuring a comprehensive verification flow.
Benefits of RAL
RAL offers numerous benefits that contribute to efficient verification:
- Standardization: By adhering to the RAL methodology, verification engineers can follow a standardized approach across different projects and teams, promoting consistency and productivity.
- Reusability: The register model created using RAL can be easily reused in different verification environments, saving time and effort in developing new models for each project.
- Efficiency: RAL enables the creation of UVM sequences that simplify the process of writing or reading from target registers, automating repetitive tasks and accelerating the verification process.
RAL in Action
In practice, using RAL involves defining register models, specifying their fields and attributes, and creating a hierarchical structure that accurately represents the design. Verification engineers can then utilize these models in their testbenches to perform various tests, including register read/write operations, field updates, and more.
Here is an example of a simplified register model created using the RAL approach:
| Register Name | Description | Address | Field 1 | Field 2 |
|---|---|---|---|---|
| Control Register | Controls the operation of a specific module | 0x0000 | Enable | Mode |
| Status Register | Stores the status information of the module | 0x0004 | Error | Interrupt |
Using the RAL model above, verification engineers can easily perform verification tasks such as reading the status of the module, updating the control settings, and asserting specific field values.
RAL provides an efficient and standardized methodology for verifying registers and memory-mapped structures in digital designs. Its structured approach, combined with its reusability and automation capabilities, makes it a valuable tool for verification engineers seeking efficient and reliable verification processes.
Advantages of Using RAL
When it comes to chip design verification, there are multiple advantages to incorporating the Register Abstraction Layer (RAL) into the process. RAL offers a high-level abstraction that closely resembles design registers, providing a seamless integration pathway from block level to system level environments. This high-level abstraction enables efficient verification, allowing verification engineers to focus on the functionality and behavior of the registers without getting bogged down in low-level details.
One of the notable benefits of RAL is its reusability. The same register model developed for a specific verification environment can be easily reused in different environments without requiring modifications. This reusability not only saves time but also ensures consistency and consistency across different projects and teams.
RAL comes with standardized rules and methods, making it a convenient and reliable approach to register modeling and verification in the industry. This standardization fosters consistency and uniformity, enabling seamless collaboration and interoperability across different verification teams and projects.
RAL provides built-in comparison methods that facilitate the verification process by allowing engineers to compare the expected register values with the observed values. These comparison methods streamline the analysis of register functionality and aid in identifying any anomalies or discrepancies.
Another advantage of RAL is its ability to sample coverage bins. By sampling these coverage bins, engineers gain insights into the completeness of their functional coverage analysis. This feature enhances the overall verification process by ensuring that all important scenarios and corner cases are adequately tested and accounted for.
In summary, the Register Abstraction Layer (RAL) offers numerous benefits, including easy integration, reusability, standardization, built-in comparison methods, and coverage sampling. By leveraging these advantages, verification engineers can enhance the efficiency and effectiveness of their verification process and ensure the reliability of their chip designs.
How RAL Enables Efficient Verification
The Register Abstraction Layer (RAL) plays a key role in ensuring efficient verification processes for chip designs. Let’s explore the different functionalities offered by RAL that contribute to verification efficiency.
Abstraction of Register Access
RAL provides a set of base classes and APIs that abstract read and write operations to registers and memories within the Design Under Test (DUT). This abstraction layer simplifies the verification process by providing a standardized and structured approach to accessing registers in the DUT.
By utilizing RAL functionality, verification engineers no longer need to directly interact with the low-level details of register access. Instead, they can rely on the higher-level abstractions provided by RAL, allowing for a more efficient and streamlined verification workflow.

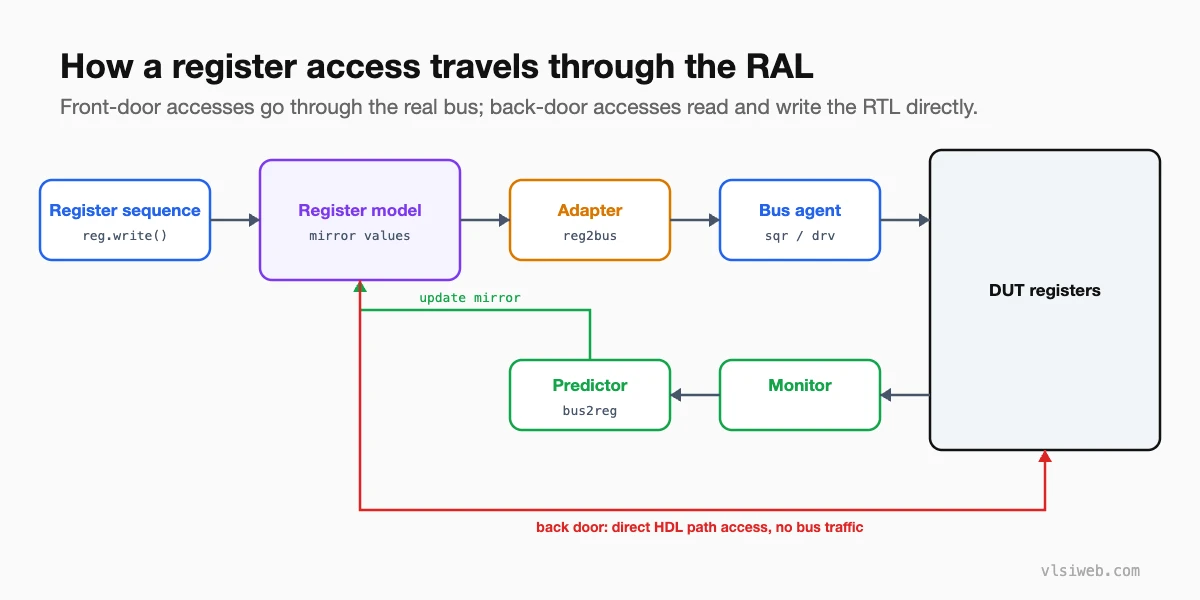

Front Door and Backdoor Access
RAL enables different methods of register access, offering both front door and backdoor access options. Front door access involves using bus interfaces to interact with the registers in the DUT. This method replicates the real-world scenario where the registers are accessed through the bus protocols utilized by the chip.
On the other hand, backdoor access allows direct access to the DUT registers using the simulator database and design signals. This method offers a more efficient way to directly manipulate the registers without going through the bus interfaces, reducing the complexity of the verification process.
Burst Operations for Memory Access
Efficient verification of large memory sizes can be challenging due to the sheer volume of data involved. RAL simplifies this process by supporting burst operations for memory access.
With RAL, engineers can perform read and write operations on memory addresses in a burst fashion, minimizing the number of transactions required to verify the entire memory. This feature significantly improves verification efficiency for designs with large memory footprints.
By utilizing RAL functionality, verification engineers can optimize their verification strategies, streamline the access to registers and memories, and achieve higher efficiency in chip design verification.
Now, let’s take a look at a table that summarizes the benefits of RAL in enabling efficient verification:
| Benefits of RAL |
|---|
| Structured and standardized register access |
| Higher-level abstractions for efficient verification |
| Front door and backdoor access options |
| Burst operations for efficient memory access |
Implementing RAL in the Verification Environment
To integrate the Register Abstraction Layer (RAL) into the verification environment, we need to implement an adapter class. This adapter class plays a crucial role in enabling communication between the bus sequences and the RAL model. It converts bus sequence items into uvm_reg_bus_op objects, which facilitates seamless front door register read/write operations.
The adapter class should be created for each bus that accesses the same RAL model. It acts as a bridge between the higher-level bus sequences and the RAL model, allowing for efficient data transfer and synchronization. By implementing the adapter class, we ensure that the necessary register operations are correctly propagated and executed within the verification environment.
In addition to the adapter class, RAL also provides support for memory implementation. The uvm_mem class mimics the memory inside the design, enabling verification engineers to effectively verify memory access and functionality. By utilizing the memory implementation feature, we can comprehensively validate the behavior and performance of memory structures within the design.
One of the key advantages of integrating RAL into the verification environment is the ability to sample user-defined coverage bins. RAL allows for the identification and analysis of critical coverage areas, enabling comprehensive coverage-driven verification. The built-in comparison method provided by RAL also ensures that the register values are accurately checked against the predicted values, providing a reliable means of verifying the correctness of the design.
| Integration Steps | Description |
|---|---|
| Create Adapter Class | Implement an adapter class for each bus accessing the same RAL model |
| Implement Memory | Utilize the uvm_mem class to simulate and verify the memory inside the design |
| Sample Coverage Bins | Identify and sample user-defined coverage bins to ensure comprehensive coverage analysis |
| Perform Comparison | Utilize the built-in comparison method to check register values against predicted values |
Leveraging RAL for Prediction and Coverage
The Register Abstraction Layer (RAL) provides valuable capabilities for predicting register values and enhancing coverage analysis in the verification process. With built-in features such as implicit, explicit, and passive prediction methods, RAL enables us to efficiently anticipate register behaviors and ensure comprehensive coverage. In this section, we will explore these prediction techniques and how RAL empowers us to achieve thorough coverage analysis.
Prediction Methods: Implicit, Explicit, and Passive
RAL supports three prediction methods: implicit, explicit, and passive. Implicit prediction occurs automatically when a register undergoes a write or read operation. It leverages the inherent correlation between register behaviors to anticipate future values accurately. This method requires no additional intervention and seamlessly contributes to the verification process.
On the other hand, explicit prediction necessitates the creation and connection of a uvm_reg_predictor class. This active form of prediction allows for more precise control over the expected register values. By defining specific prediction criteria and connecting the predictor class to the register model, we can accurately simulate real-world scenarios and drive in-depth verification.
Lastly, passive prediction is useful when read or write operations occur outside the register model. In such cases, RAL enables us to predict register values by mimicking these operations and providing the necessary signals to our prediction mechanisms. This method expands the scope of register prediction and enhances the overall accuracy of our verification environment.
Coverage Sampling for Comprehensive Analysis
In addition to prediction methods, RAL also facilitates coverage sampling to improve functional coverage analysis. By allowing the sampling of user-defined coverage bins, we can obtain granular insights into register behavior and validate the effectiveness of our verification strategies.
The ability to sample coverage bins enables us to analyze specific criteria or scenarios and identify any gaps in coverage. This feature empowers us to ensure that our verification environment encompasses all important register aspects and thoroughly exercises their functionalities.
Now, let’s visualize the power of RAL in prediction and coverage analysis.
This image demonstrates the effectiveness of RAL’s prediction capabilities and the comprehensive coverage provided. By accurately predicting register values and sampling coverage across diverse test scenarios, we maximize the effectiveness of our verification efforts and minimize the risk of undetected issues.
Pre-defined Sequences and Ready-made UVM Register Sequences
The Register Abstraction Layer (RAL) offers a range of pre-defined sequences that are specifically designed to test the functionality of registers. These ready-made sequences encompass various aspects of register access and verification, providing a comprehensive solution for thorough testing. With these sequences, verification engineers can ensure the proper operation of registers, validate front door and backdoor access mechanisms, and perform memory burst operations, among other essential functionalities.
The pre-defined sequences provided by RAL cover critical verification scenarios and enable engineers to efficiently test register functionality. Here are some key aspects that these sequences address:
- Reset Value Checks: The sequences include tests to verify the initial states of registers after a reset operation, ensuring that registers are correctly initialized.
- Bit-bashing: By manipulating individual register bits, the sequences validate the functionality of specific features and control logic within the register.
- Front Door and Backdoor Access Validation: These sequences verify both bus interface-driven register access (front door) and direct access through the simulator database (backdoor).
- Memory Burst Operations: The sequences facilitate testing of memory-mapped registers and their associated burst access mechanisms, ensuring the proper operation of large memory sizes.
- Shared Access Across Multiple Buses: For designs with multiple bus interfaces, the sequences validate shared access scenarios, guaranteeing correct behavior when multiple buses interact with the same registers.
The advantage of having these pre-defined sequences is that they can be easily integrated into the verification environment, providing a systematic and efficient approach to testing register functionality. Verification engineers can readily configure and utilize these sequences to access and verify the functionality of all design registers and memories, saving significant effort and time in the verification process.
By leveraging the power of RAL’s pre-defined sequences, verification engineers can ensure thorough and accurate verification of register functionality, leading to robust and reliable chip designs.
Conclusion
The Register Abstraction Layer (RAL) is the key to efficient verification in chip design. Its structured and standardized approach simplifies the modeling and verification of registers and memory-mapped structures, enabling easy integration and migration from block level to system level environments. By providing a high-level object-oriented abstraction layer, RAL promotes code reusability across different verification environments, saving time and effort for verification engineers.
With RAL, the verification process becomes more efficient and effective. Its base classes and APIs abstract the read and write operations to registers and memories, allowing for different access scenarios and field value checks. RAL’s support for front door and backdoor access, burst operations, and built-in comparison methods further enhance its functionality in verifying large memory sizes and analyzing functional coverage.
In conclusion, the Register Abstraction Layer (RAL) offers a standardized approach that streamlines the verification process for chip design. Its benefits in terms of efficient verification and code reusability make it an invaluable tool for verification engineers in the industry. By adopting RAL, verification teams can achieve higher productivity and ensure the reliability and quality of their chip designs.
