UVM Phases

Raju GorlaBy Raju Gorla9 June 2024Updated:17 December 2024No Comments16 Mins Read
UVM Phases
Share
Facebook Twitter LinkedIn Email Telegram WhatsApp

At the heart of the verification methodology for chip design lies the synchronization mechanism of UVM phases. As experts in the field, we understand the importance of these phases in ensuring the robustness of chip designs. By seamlessly progressing through a predefined set of phases, UVM provides a structured approach to the simulation life cycle and guarantees that all testbench components are thoroughly validated.

As we delve into the intricacies of UVM phases, we will explore their categories and purposes, shedding light on how each phase contributes to the overall verification process. With our expertise and knowledge, we will guide you through build time phases, run time phases, and clean-up phases, uncovering the key role they play in chip design verification.

Whether you’re a seasoned professional in the semiconductor industry or just beginning your journey, this article will provide valuable insights into the UVM phases employed in chip design verification. Join us as we explore these crucial phases, understand their execution approach, and unlock the potential they hold in ensuring the reliability of your chip designs.

But first, let’s take a moment to understand the essence of UVM phases and how they fit into the broader framework of verification methodology.

Table of Contents

  • Understanding UVM Phases and Their Categories
    • Build Time Phases
    • Run Time Phases
    • Clean-Up Phases
  • Purpose and Execution Approach of Build Phases
    • The Build Phase: Top to Bottom Execution
    • The Connect Phase: Connecting Testbench Components
    • The End-of-Elaboration Phase: Fine-Tuning and Displaying UVM Topology
  • The Role of Run Phases in UVM
  • Understanding Clean-Up Phases in UVM
  • UVM Phases in Verilog Testbenches
  • UVM Phases in SystemVerilog Testbenches
    • Benefits of Dynamic Component Creation
  • The Order and Execution of UVM Common Phases
    • UVM Common Phases
  • Understanding Individual UVM Common Phases
    • 1. build_phase
    • 2. connect_phase
    • 3. end_of_elaboration_phase
    • 4. start_of_simulation_phase
    • 5. run_phase
    • 6. extract_phase
    • 7. check_phase
    • 8. report_phase
    • 9. final_phase
  • The Role of UVM Void and Object in UVM Phases
    • Example Table
  • Conclusion
  • Source Links

Understanding UVM Phases and Their Categories

In the world of hardware verification, UVM phases play a vital role in ensuring the robustness and reliability of chip designs. These phases provide a structured framework for the verification process, enabling testbench components to progress through distinct stages before moving on to the next.

UVM phases can be broadly categorized into three main groups: build time phases, run time phases, and clean-up phases. These categories encapsulate different sets of actions and tasks that need to be executed at specific points in the verification process.

Build Time Phases

The build time phases focus on constructing and connecting the various elements in the testbench. These phases include:

  • build_phase: Responsible for creating and initializing testbench components.
  • connect_phase: Establishes connections between different testbench components using TLM ports.
  • end_of_elaboration_phase: Fine-tunes the testbench, performs any necessary configuration adjustments, and displays the UVM topology.
  • start_of_simulation_phase: Prepares the testbench for the actual simulation of the Design Under Test (DUT).

During the build time phases, testbench components are instantiated, configured, and interconnected to create a functional testbench environment.

Run Time Phases

Once the testbench is built and ready, the run time phases come into play. These phases handle the actual simulation and run parallel to other run-time phases. The key run time phase is:

  • run_phase: Drives the simulation by generating stimuli, checking testbench activities, and consuming time cycles.

The run_phase is where the DUT is stimulated, and the expected behavior is verified using checkers and assertions. It runs concurrently with other run-time phases to ensure synchronized execution.

Clean-Up Phases

After the completion of the run time phases, clean-up phases take care of wrapping up the verification process. The clean-up phases include:

  • extract_phase: Collects data from scoreboards and functional coverage monitors.
  • check_phase: Performs error checking, ensuring the verification environment is in the expected state.
  • report_phase: Reports the test results, providing insights into the success or failure of the verification process.
  • final_phase: Handles any final operations required before exiting the simulation.

These clean-up phases ensure that all necessary data is extracted, errors are checked, results are reported, and the simulation environment is properly closed.

The table below summarizes the different UVM phases and their categories:

Phase Category
build_phase Build Time
connect_phase Build Time
end_of_elaboration_phase Build Time
start_of_simulation_phase Build Time
run_phase Run Time
extract_phase Clean-Up
check_phase Clean-Up
report_phase Clean-Up
final_phase Clean-Up

Purpose and Execution Approach of Build Phases

Build phases play a crucial role in the creation and configuration of testbench components. These phases, namely build_phase, connect_phase, and end_of_elaboration_phase, ensure that the testbench structure is properly built and configured before proceeding to the run-time phases. Let’s delve into the purpose and execution approach of these build phases.

The Build Phase: Top to Bottom Execution

The build_phase is the first build phase executed in the UVM methodology. It is responsible for instantiating and configuring the top-level components of the testbench. The execution approach of the build_phase is top to bottom, meaning that the top-level components are instantiated and configured first, followed by the instantiation and configuration of sub-components. This orderly execution approach ensures that the testbench components are properly constructed and ready for further testing.

The Connect Phase: Connecting Testbench Components

After the build_phase, the connect_phase takes place. This phase is responsible for connecting different testbench components using Transaction Level Modeling (TLM) ports. These ports enable communication and data exchange between the components, facilitating the flow of information throughout the verification environment. By establishing these connections, the connect_phase ensures the seamless integration and interaction of the testbench components during the simulation.

The End-of-Elaboration Phase: Fine-Tuning and Displaying UVM Topology

Once the connect_phase is completed, the end_of_elaboration_phase begins. This phase provides an opportunity to fine-tune the testbench configuration and display the UVM topology. During the end-of-elaboration_phase, any remaining adjustments or optimizations can be made to ensure the testbench’s readiness for running simulations. Additionally, this phase allows for the visualization of the UVM topology, providing a clear representation of the interconnected components and their relationships.

By executing these build phases in the prescribed order, UVM practitioners can ensure that the testbench components are constructed, connected, and fine-tuned, ready for the subsequent run-time phases. This meticulous approach contributes to the efficiency and effectiveness of the overall verification process, leading to robust and reliable chip designs.

The Role of Run Phases in UVM

The run phases, specifically the run_phase, play a crucial role in the UVM methodology. These phases are responsible for stimulus generation, checking activities of the testbench, and consuming simulation time cycles. The run_phase is where the actual simulation occurs, running in parallel with other run-time phases to ensure efficient execution.

During the run_phase, stimulus is applied to the Design Under Test (DUT), generating inputs to drive the DUT’s behavior and test its functionality. This process is essential for comprehensively verifying the DUT’s performance and identifying any design flaws or errors. The stimulus generation is carefully designed to cover various scenarios and test corner cases, ensuring thorough testing of the DUT.

Checkers are another crucial component of the run_phase. These checkers monitor the DUT’s outputs and compare them against the expected behavior to ensure correct functionality. They play a vital role in validating the DUT’s outputs and detecting any deviations or errors. The combination of stimulus generation and checkers enables comprehensive testing, enhancing the overall quality of the design.

Parallel execution is a key characteristic of the run phases. While the run_phase is ongoing, other run-time phases can also be executed simultaneously. This parallel execution allows for efficient utilization of simulation time, ensuring that all necessary activities are performed without unnecessary delays. By running in parallel, the UVM methodology optimizes the verification process, reducing the overall simulation time while maintaining accuracy.

Overall, the run phases in UVM play a pivotal role in the verification process. They enable stimulus generation, check the DUT’s behavior, and ensure parallel execution for efficient simulation. By effectively implementing these run phases, designers can enhance the verification process and ensure the robustness of their chip designs.

Understanding Clean-Up Phases in UVM

Clean-up phases in UVM, which include extract_phase, check_phase, report_phase, and final_phase, are essential for the successful verification of chip designs. These phases are responsible for collecting and processing data from various points in the verification environment, ensuring accurate results and error-free simulations.

The extract_phase is a critical component of the clean-up phases, as it retrieves data from functional coverage monitors and scoreboards. This phase allows us to extract valuable information regarding the coverage achieved during the verification process. It provides insights into the areas of the design that have been thoroughly tested and areas that may require additional attention.

Next, the check_phase comes into play, diligently examining the verification environment for any unexpected conditions. During this phase, various error checking mechanisms are employed to ensure the correct functioning of the design and testbench. By meticulously analyzing the collected data and comparing it against predefined criteria, we can identify any anomalies or discrepancies that may have occurred during the simulation.

Once the check phase is complete, the report_phase takes center stage. This phase is responsible for compiling and presenting the results of the verification process in a clear and concise manner. The information gathered during the simulation, including coverage metrics and error counts, is transformed into comprehensive reports that provide valuable insights to the verification engineers and stakeholders. These reports enable us to assess the robustness and quality of the chip design, helping us make well-informed decisions in the development cycle.

Finally, the final_phase ties up loose ends and performs any necessary final operations before exiting the simulation. This phase allows us to close any remaining files, release system resources, and ensure that the verification environment is properly cleaned up. It marks the conclusion of the verification process, bringing us one step closer to a reliable and robust chip design.

By incorporating these clean-up phases into the UVM verification methodology, we can effectively extract data, perform rigorous error checking, and report accurate results. This meticulous approach ensures the integrity and reliability of the verification process, significantly enhancing the quality of the final chip design.

UVM Phases in Verilog Testbenches

In the context of Verilog testbenches, the functionality is more limited compared to UVM testbenches. Verilog testbench components are constructed using static modules, which means that all modules are created at the beginning of the simulation. As a result, there is no need for synchronization between components, leading to a simpler testbench structure.

Unlike UVM testbenches, Verilog testbenches lack scalability and are restricted to the static hierarchy of modules. The testbench’s functionality is confined within this limited scope, which may not be suitable for complex design verification scenarios.

However, despite their limited functionality, Verilog testbenches can still serve as valuable tools in the chip design process, especially for smaller projects or situations where a less intricate verification environment is sufficient.

To illustrate the difference, consider the following table comparing Verilog testbenches and UVM testbenches:

Aspect Verilog Testbench UVM Testbench
Functionality Limited Extensive
Module Creation Static Dynamic
Synchronization Not required Essential
Scalability Not scalable Highly scalable

While Verilog testbenches offer simplicity and efficiency in certain scenarios, it is crucial to evaluate the project requirements carefully before deciding on the appropriate verification methodology.

UVM Phases in SystemVerilog Testbenches

In SystemVerilog testbenches, we leverage the Object-Oriented Programming (OOP) features introduced by SystemVerilog. This allows us to create dynamic and reusable testbench components that can be instantiated at different times during the simulation. With SystemVerilog, testbench components can be created and synchronized on-the-fly, providing greater flexibility and scalability in the testbench hierarchy. The UVM phasing mechanism in SystemVerilog ensures proper synchronization between dynamically created components, eliminating any issues related to calling components before they are initialized.

By taking advantage of SystemVerilog’s OOP features, we can design testbenches that are more adaptable to changing requirements and easier to maintain. The dynamic component creation capability enables us to create testbench components as needed, allowing for more efficient simulation and reduced development time. This flexibility also allows us to easily modify and extend the testbench structure without disrupting the overall functionality.

Benefits of Dynamic Component Creation

The ability to dynamically create testbench components brings several advantages to SystemVerilog testbenches:

  1. Flexibility: With dynamic component creation, we can instantiate testbench components at different points in time during the simulation. This flexibility enables us to adjust the testbench structure to meet specific test requirements or accommodate design changes.
  2. Scalability: Dynamic component creation allows us to scale the testbench hierarchy easily. We can increase or decrease the number of instantiated components based on the complexity of the design or the desired test scenarios. This scalability is crucial in handling larger and more intricate designs.
  3. Code Reusability: By creating dynamic and reusable testbench components, we can maximize code reusability. Components that are designed to be dynamically instantiated can be reused across different testbenches, reducing duplication of code and improving overall efficiency.

Overall, SystemVerilog’s OOP features and the dynamic component creation capability provide us with powerful tools for building flexible, scalable, and reusable testbenches. These features enhance the effectiveness and efficiency of our verification process, leading to more reliable and robust chip designs.

SystemVerilog testbench

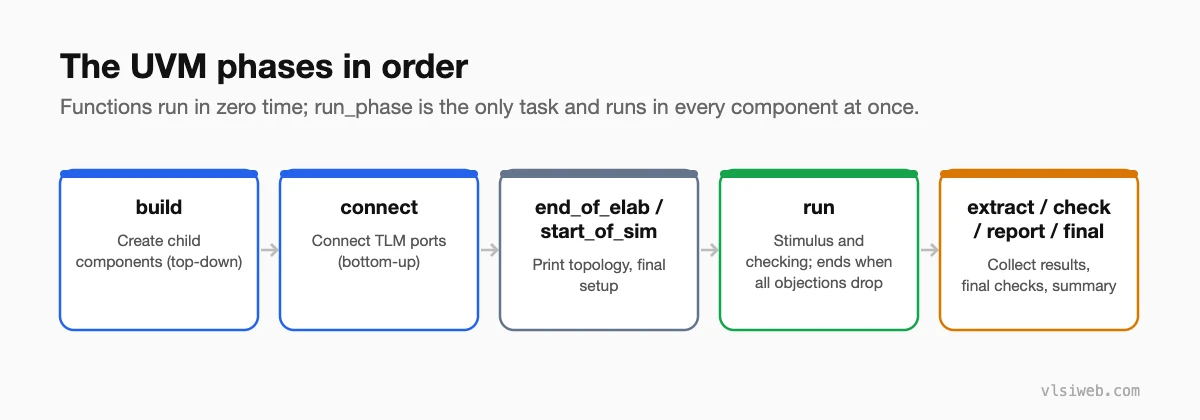

The Order and Execution of UVM Common Phases

UVM common phases play a vital role in the functionality of testbench components. These phases are executed in a specific order and are implemented as virtual methods. Let’s take a closer look at each of these UVM common phases and how they contribute to the overall verification process.

UVM Common Phases

The following table outlines the UVM common phases, their purpose, and their execution order:

Phase Purpose Execution Order
uvm_build_phase Creating and configuring testbench components First
uvm_connect_phase Establishing cross-component connections using TLM ports Second
uvm_end_of_elaboration_phase Fine-tuning the testbench and displaying the UVM topology Third
uvm_start_of_simulation_phase Preparing the testbench for DUT simulation Fourth
uvm_run_phase Stimulating the DUT and running parallel to other run-time phases Fifth
uvm_extract_phase Collecting data from the verification environment Sixth
uvm_check_phase Checking for unexpected conditions in the verification environment Seventh
uvm_report_phase Reporting test results Eighth
uvm_final_phase Tying up loose ends before exiting the simulation Ninth

Each phase serves a specific purpose in the verification process and contributes to the overall functionality of the testbench components. By executing these phases in the correct order, we ensure that the testbench is properly constructed, connected, run, and cleaned up, resulting in a robust and reliable verification process.

Understanding Individual UVM Common Phases

Each individual UVM common phase serves a specific purpose and has a defined execution approach. Let’s take a closer look at each phase:

1. build_phase

The build_phase is responsible for the creation and configuration of testbench components. It follows a top-down execution approach, starting with the instantiation of top-level components and then moving on to sub-components. This phase ensures that the testbench structure is properly built and configured before proceeding to the run-time phases.

2. connect_phase

The connect_phase establishes cross-component connections using TLM (Transaction Level Modeling) ports. It follows a bottom-up execution approach, ensuring that all testbench components are connected to each other. This phase plays a crucial role in enabling communication and data exchange between different components of the testbench.

3. end_of_elaboration_phase

The end_of_elaboration_phase is responsible for fine-tuning the testbench and displaying the UVM topology. It also follows a bottom-up execution approach, ensuring that all necessary adjustments and optimizations are made before entering the simulation phase. This phase provides a comprehensive overview of the testbench structure and its interconnections.

4. start_of_simulation_phase

The start_of_simulation_phase prepares the testbench for DUT (Design Under Test) simulation. It follows a bottom-up execution approach and ensures that all components are ready for simulation. This phase is essential for initializing and synchronizing the testbench environment before transitioning to the run-time phases.

5. run_phase

The run_phase is where the actual stimulation of the DUT takes place. It runs in parallel with other run-time phases and is responsible for generating stimuli, monitoring the DUT’s behavior, and consuming simulation time cycles. The run_phase plays a critical role in validating the functionality and performance of the DUT.

6. extract_phase

The extract_phase collects data from the verification environment during the simulation. It follows a bottom-up execution approach, gathering information from functional coverage monitors and scoreboards. This phase is crucial for extracting relevant data and insights that can be used for further analysis and debugging.

7. check_phase

The check_phase checks for any unexpected conditions or errors that may have occurred during the simulation. It also follows a bottom-up execution approach, ensuring that all components are thoroughly checked for correctness and compliance. This phase helps in identifying and resolving any potential issues in the verification environment.

8. report_phase

The report_phase is responsible for reporting the test results and any relevant information. It follows a bottom-up execution approach and provides a comprehensive summary of the verification process. This phase aids in analyzing the effectiveness of the testbench and identifying areas that may require further improvement.

9. final_phase

The final_phase is the last phase of the UVM process. It follows a top-down execution approach and is responsible for tying up any loose ends in the simulation. This includes performing any final operations, cleaning up resources, and preparing for the simulation to conclude. The final_phase ensures that the simulation is gracefully terminated.

By understanding the purpose and execution approach of each UVM common phase, we can effectively utilize them to build robust and reliable testbenches for the verification process.

The Role of UVM Void and Object in UVM Phases

In UVM, the UVM void class and UVM object class play essential roles as base classes for UVM components, providing fundamental functionality for UVM phases. The UVM void class serves as the base class for all UVM classes, while the UVM object class acts as the base class for all UVM data and hierarchical classes. These base classes define the structure and behavior of UVM phases, ensuring proper execution and synchronization between testbench components.

By utilizing the UVM void class as the foundation for all UVM classes, we can establish a consistent design structure and promote code reusability. This base class enables the integration of common methods and attributes across different UVM components, facilitating the streamlined implementation of UVM phases.

In addition, the UVM object class serves as the base class for UVM data and hierarchical classes, providing essential features and functionalities. It enables the creation of dynamic and structured UVM components, allowing for efficient data handling and manipulation during simulation. The UVM object class empowers testbench architects to design flexible and scalable verification environments.

The UVM void class and UVM object class work together to ensure proper execution and synchronization of UVM phases throughout the simulation process. They form the backbone of UVM methodology, enabling efficient communication between different testbench components and facilitating the seamless integration of verification tasks.

Example Table

UVM Class Base Class
UVM Component UVM Object
UVM Environment UVM Object
UVM Agent UVM Object
UVM Sequence UVM Object
UVM Driver UVM Object

By leveraging the UVM void class and UVM object class as base classes, we can ensure the efficient implementation of UVM phases, enhancing the overall effectiveness and reliability of the verification process.

UVM Phases

Conclusion

In conclusion, UVM phases are an integral part of the verification methodology in chip design. These phases act as a synchronizing mechanism, ensuring the proper execution and synchronization between testbench components. The different categories of UVM phases, namely build time phases, run time phases, and clean-up phases, have specific purposes that contribute to the overall verification process. By understanding and effectively implementing UVM phases, designers can enhance the verification process and create robust and reliable chip designs.

UVM phases provide a structured approach to chip verification, guiding engineers through the different stages of the verification methodology. These phases facilitate the construction and configuration of testbench components, the generation of stimuli, the checking of test results, and the collection of data from the verification environment. They ensure that the verification process is well-organized and that interactions between testbench components are properly coordinated.

By following the UVM phasing mechanism, chip designers can achieve greater efficiency in the verification process. UVM phases enable parallel execution of different tasks and allow for the dynamic creation of testbench components. This flexibility and scalability are especially valuable in complex chip designs where multiple components need to work together harmoniously. The UVM methodology, with its well-defined phases, helps designers navigate the intricacies of chip verification and deliver high-quality, reliable chip designs.

Source Links

  • https://www.chipverify.com/uvm/uvm-phases
  • https://vlsiverify.com/uvm/uvm-phases/
  • https://verificationacademy.com/verification-methodology-reference/uvm/docs_1.1c/html/files/base/uvm_common_phases-svh.html
