Welcome to our article series on UVM configurations. In this series, we will explore the power and versatility of UVM configurations in creating efficient verification environments for your projects. UVM configurations provide a convenient way to store and retrieve values in a database, allowing for flexible management of configuration settings without modifying the testbench code.
By implementing UVM configurations effectively, verification teams can tailor their environments to meet specific project requirements, resulting in streamlined and scalable verification processes. Throughout this series, we will delve into the various functionalities of UVM configurations and provide practical examples to guide you in harnessing their full potential.
So, let’s dive in and explore the world of UVM configurations and how they can empower your verification projects.
Table of Contents

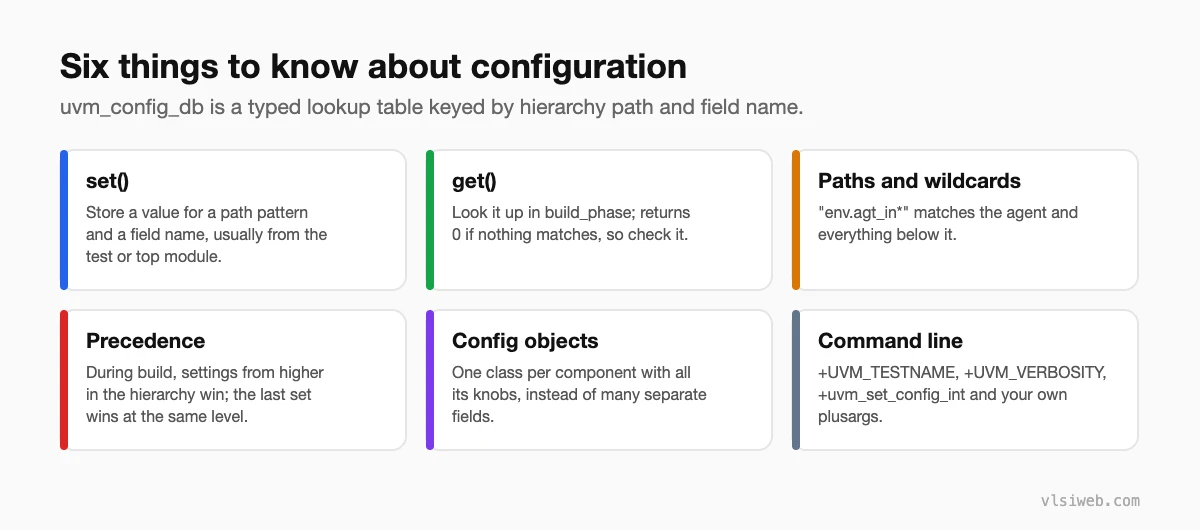

Introduction to UVM Configurations
UVM configurations play a crucial role in creating efficient verification environments for projects. These configurations, stored in a configuration database, allow easy customization of testbench components without modifying the underlying code. One of the key classes in UVM, the uvm_config_db, provides a convenient interface for managing these configurations.
The uvm_config_db class acts as a bridge between the testbench components and the configuration database. It allows us to add and retrieve configurations for specific components, enabling flexible and dynamic parameterization of the testbench. Configurations can be stored and accessed using the full scope of the component hierarchy, making it easy to target specific instances or levels in the design.
The uvm_config_db class simplifies the process of configuring testbench components by providing functions like set() and get(). The set() function allows us to add or update a configuration setting in the database, specifying the component context, instance name, field name, and value. On the other hand, the get() function retrieves the value of a configuration setting from the database, based on the specified context, instance name, and field name.
By leveraging UVM configurations and the uvm_config_db class, we can create dynamic and adaptable verification environments. We can easily modify the behavior of testbench components without modifying the code, facilitating quick iterations and reducing development time. This flexibility is particularly valuable when dealing with complex designs and varying test scenarios.
To further demonstrate the power of UVM configurations and the uvm_config_db class, let’s explore some practical examples of setting and retrieving configurations in the next section.
Using the set() function
The set() function is a powerful feature of the uvm_config_db class that enables us to add or update configuration settings in the database. By utilizing this function, we can easily modify the behavior of our testbench components without altering the underlying testbench code. This flexibility allows us to create efficient and adaptable verification environments for our projects.
When using the set() function, we need to provide the necessary arguments to specify the configuration setting we want to add or update. These arguments include:
- Component Context (cntxt): This argument represents the scope of the configuration setting and is typically set to the component where the configuration is being applied.
- Instance Name (inst_name): The instance name is used to identify the specific instance of the component where the configuration is targeted.
- Field Name (field_name): The field name specifies the particular configuration parameter we want to modify or add.
- Value: This argument represents the new value we want to assign to the configuration setting.
With the help of these arguments, we can precisely define the configuration setting we want to change and provide the corresponding value. Additionally, the set() function supports the use of the scope operator (::) to specify the full path to the component. This allows us to set configurations for components located at different levels in the hierarchy, providing even more flexibility.
Here’s an example of using the set() function:
uvm_config_db#(uvm_object)::set(this, "", "coverage_enable", 1);
In the above example, we are using the set() function to enable functional coverage for our testbench agent. By specifying the appropriate arguments, we can easily modify the configuration database and apply the desired changes.
| Argument | Description |
|---|---|
| Component Context (cntxt) | Specifies the scope of the configuration setting. |
| Instance Name (inst_name) | Identifies the specific instance of the component. |
| Field Name (field_name) | Specifies the configuration parameter we want to modify or add. |
| Value | Represents the new value to assign to the configuration setting. |
Examples of the set() function
The set() function in the uvm_config_db class offers flexibility in configuring testbench components by allowing the setting of various types of variables in the configuration database. This function is an essential tool for tailoring efficient verification environments to meet our project requirements.
Let’s explore some examples of how the set() function can be used:
Example 1: Turning on functional coverage
The set() function can be utilized to enable functional coverage for an agent. By setting the appropriate variable in the configuration database, we can control the activation of coverage collection. For instance, we can set a variable named “coverage_enabled” to 1 for the desired agent, ensuring that coverage data is collected during the simulation.
Example 2: Configuring virtual interface handles
The set() function also allows us to configure virtual interface handles for all components below a specified hierarchy level. By setting a virtual interface handle variable in the configuration database, we can establish communication paths between different components, enabling seamless data exchange. This ensures proper connectivity and interaction between the components of the testbench.
To specify the scope of the configuration setting, the “cntxt” argument in the set() function can be set to null or the current component. This allows us to control the visibility and applicability of the configuration setting based on our specific requirements.
By leveraging the set() function’s capabilities, we can easily customize and fine-tune the behavior of our verification environment, ensuring the efficient and effective execution of our test scenarios.
Using the get() function
The get() function is a fundamental feature of the uvm_config_db class that enables the retrieval of configuration settings from the database. It is an essential tool for accessing and utilizing the stored values for various testbench components in an efficient manner.
When using the get() function, several arguments need to be provided to specify the configuration setting to retrieve. These arguments include:
- Component Context (
cntxt): This represents the context of the component for which the configuration setting is being retrieved. - Instance Name (
inst_name): This specifies the instance name of the component. - Field Name (
field_name): This indicates the name of the configuration setting or field. - Inout Variable: A reference to an inout variable is passed as an argument to retrieve the value of the configuration setting.
By using the get() function with the scope operator (::), it is possible to specify the full path to the component. This helps in cases where there may be components with similar names or multiple instances of the same component within the hierarchy. The scope operator allows for a precise and accurate retrieval of the desired configuration setting.
Overall, the get() function plays a crucial role in accessing and extracting configuration settings from the uvm_config_db configuration database. It enables efficient and hassle-free retrieval of values, allowing verification teams to effectively utilize the stored configurations for their testbench components.
Example:
Consider a scenario where we have a testbench environment with multiple instances of a DUT (Design Under Test) component named dut1 and dut2. Each instance has a configuration setting called clk_period that specifies the clock period for that particular DUT.
| Component | Instance Name | Field Name | Value |
|---|---|---|---|
| DUT | dut1 | clk_period | 10ns |
| DUT | dut2 | clk_period | 12ns |
To retrieve the clk_period value for dut1, we can use the following code:
uvm_config_db#(DUT)::get(null, "dut1", "clk_period", clk_period_value);The retrieved clk_period_value will be “10ns”. Similarly, the same code can be used to retrieve the clk_period value for dut2.
By leveraging the get() function, we can easily fetch the desired configuration settings from the uvm_config_db configuration database. This allows for efficient and dynamic retrieval of values, contributing to the overall flexibility and adaptability of the verification environment.
Examples of the get() function
The get() function in the uvm_config_db class is a powerful tool for retrieving values of previously set configuration settings. By providing the appropriate arguments that match the scope and name of the desired configuration setting, we can easily access the specific data we need from the configuration database.
Let’s take a look at some examples of how the get() function can be used:
Example 1: Retrieving a virtual interface handle
Suppose we have a testbench component that requires a virtual interface handle to communicate with other modules. We can use the get() function to retrieve this handle from the configuration database. Here’s how we can do it:
| Component | Setting Name | Code |
|---|---|---|
| Testbench Component | virtual_if | UVMConfigDb#(virtual_interface)::get(this, "", "virtual_if", virtual_if) |
In this example, we call the get() function with the appropriate arguments: the component context (this), an empty string for the instance name, “virtual_if” for the field name, and a variable virtual_if to store the retrieved value. The get() function will search for the specified configuration setting and retrieve the virtual interface handle.
Example 2: Retrieving an integer variable
In another scenario, we may have an integer variable that controls certain features of the testbench. We can use the get() function to retrieve this variable value from the configuration database. Here’s the code snippet:
| Component | Setting Name | Code |
|---|---|---|
| Testbench Component | feature_control | UVMConfigDb#(int)::get(null, "", "feature_control", feature_control) |
In this example, we call the get() function with the null value for the component context since we want to retrieve the value for the current component. The instance name is an empty string to indicate that we want to retrieve the value for any instance of the component. The field name is set to “feature_control”, and the retrieved value will be stored in the variable feature_control.
These are just a couple of examples showcasing the versatility of the get() function in retrieving configuration settings. By leveraging this function, we can easily access the necessary values from the configuration database to customize and control the behavior of our testbench components.
Using the exists() function
In addition to the set() and get() functions, the uvm_config_db class provides the exists() function to check the existence of a configuration setting in the database. This function is particularly useful when you want to verify whether a specific configuration has been set before using it in your testbench components.
The exists() function takes multiple arguments, including the component context (cntxt), instance name (inst_name), field name (field_name), and a spell_chk argument. By providing these arguments, you can precisely specify the configuration setting you want to check.
Here is the syntax for using the exists() function:
exists(cntxt, inst_name, field_name, spell_chk);
The spell_chk argument is an optional argument that can be set to 1 if you want to enable spell checking for the field name. This can be helpful to avoid misspellings and ensure the accurate identification of the configuration setting.
By utilizing the exists() function, you can confidently verify the presence of a configuration setting in the uvm_config_db configuration database before accessing it in your testbench components. This helps ensure the reliability and consistency of your testbench environment.
| Argument | Description |
|---|---|
| cntxt | The component context of the configuration setting. |
| inst_name | The instance name of the configuration setting. |
| field_name | The name of the configuration setting field. |
| spell_chk | An optional argument to enable spell checking for the field name (1 for enabled, 0 for disabled). |
Using the wait_modified() task
In the context of UVM configurations and the configuration database, the wait_modified() task plays a crucial role in synchronizing the execution of different components based on a specific configuration setting. By utilizing this task, we can effectively control the flow of statements until a desired configuration change occurs.
The wait_modified() task is a part of the uvm_config_db class and takes three arguments: component context (cntxt), instance name (inst_name), and field name (field_name). These arguments help identify the specific configuration setting that we want to monitor for changes.
Once the wait_modified() task is triggered, it blocks the execution of subsequent statements until the specified configuration setting is modified. This allows us to ensure that all components relying on a particular configuration setting are synchronized and operate with the updated configuration value.
The wait_modified() task is particularly useful in scenarios where multiple components depend on a common configuration and need to respond promptly to any changes in its value. It eliminates the need for constantly polling the configuration database and provides an efficient way to manage synchronization in the context of UVM configurations.
To illustrate the usage of the wait_modified() task, consider the following example:
<img src="https://seowriting.ai/32_6.png" alt="wait_modified() example">Let’s assume we have two components, component A and component B, both of which rely on a shared configuration setting called “config_enable”. We can use the wait_modified() task to ensure that component B waits until “config_enable” is modified before executing certain critical statements:
<table>
<tr>
<th>Component A</th>
<th>Component B</th>
</tr>
<tr>
<td>// Some code</td>
<td>wait_modified(null, null, "config_enable"); // Block execution until "config_enable" is modified</td>
</tr>
<tr>
<td>// Continue with execution</td>
<td>// Execute critical statements</td>
</tr>
</table>In this example, component B’s execution is synchronized with the modification of “config_enable”. It waits until the configuration setting is changed before executing the critical statements. This ensures that component B operates with the most up-to-date configuration value.
The wait_modified() task opens up possibilities for creating sophisticated and responsive verification environments. By strategically incorporating this task into our UVM configurations, we can achieve seamless coordination among different components, leading to efficient and reliable verification processes.
Convenience tasks
The uvm_config_db class offers a range of convenience tasks that enhance the efficiency and ease of managing configurations in the uvm_config_db configuration database. These tasks, namely uvm_config_int, uvm_config_string, uvm_config_object, and uvm_config_wrapper, enable parameterized and shorthand operations for handling specific types of variables.
For instance, the uvm_config_int task allows quick and straightforward setting and retrieval of integer variables. By using this task, you can seamlessly configure and manipulate integer values in the configuration database without the need for complex code or extensive modification.
The uvm_config_string task serves a similar purpose, but for string variables. It simplifies the process of working with strings in the configuration database, providing convenient aliases for setting and retrieving string values within the database.
Furthermore, the uvm_config_object task streamlines the management of object variables in the configuration database. It offers a more intuitive way to handle object-based configurations, reducing the reliance on verbose code and increasing the overall efficiency of the verification environment.
The final convenience task, uvm_config_wrapper, supports a wide range of complex data types in the configuration database. This task facilitates the setting and retrieval of wrapper variables, allowing for seamless integration of custom data structures and enhancing the configurability and scalability of the verification environment.
Benefits of Convenience Tasks
- Streamlined configuration management
- Efficient handling of specific variable types
- Reduced code complexity and verbosity
- Enhanced configurability and scalability
By leveraging these convenience tasks, verification teams can significantly improve their productivity and adaptability when working with the uvm_config_db configuration database. These tasks provide a more user-friendly interface for manipulating different variable types, allowing for more straightforward and efficient configuration management.
| Convenience Task | Description |
|---|---|
| uvm_config_int | Parameterized task for setting and retrieving integer variables in the configuration database. |
| uvm_config_string | Parameterized task for setting and retrieving string variables in the configuration database. |
| uvm_config_object | Parameterized task for setting and retrieving object variables in the configuration database. |
| uvm_config_wrapper | Parameterized task for setting and retrieving complex data types in the configuration database. |
Debugging uvm_config_db
To ensure smooth execution of the uvm_config_db class, it is crucial to address any potential issues that may arise during simulation. Debugging is an essential step in troubleshooting and optimizing the configuration database for efficient verification environments.
One effective way to debug issues related to the uvm_config_db class is by enabling the +UVM_CONFIG_DB_TRACE switch. This switch acts as a debug switch, offering valuable insights into the underlying configuration database interactions. By enabling this switch, every set() and get() call made to the configuration database is logged, providing a detailed trace of the operations.
Enabling the +UVM_CONFIG_DB_TRACE switch helps in pinpointing any issues that may be present within the configuration settings or their retrieval. By closely examining the logged data, we can identify potential errors, inconsistencies, or conflicts that may hinder the expected behavior of the verification environment.
When interpreting the logs generated by the +UVM_CONFIG_DB_TRACE switch, it’s essential to pay attention to both the set() and get() calls. Analyzing these logs can assist in understanding the flow of configuration settings and their impact on various testbench components.
By leveraging the power of the +UVM_CONFIG_DB_TRACE switch, we gain valuable visibility into the configuration database’s operations. This enhanced debugging capability helps in identifying and resolving issues, ensuring a seamless and reliable configuration management process.
Here’s an example of how to enable the +UVM_CONFIG_DB_TRACE switch in your simulation:
# Run the simulation with the +UVM_CONFIG_DB_TRACE switch simv +UVM_CONFIG_DB_TRACE
With the debugging enabled, you can review the logs produced during your simulation runs, which can assist in diagnosing any configuration-related issues.
Example Debugging Scenario
Let’s consider a scenario where a particular testbench component is not receiving the expected configuration settings. By enabling the +UVM_CONFIG_DB_TRACE switch, we can trace the configuration flow and identify any discrepancies. The log will provide valuable information on whether the configuration settings were set correctly, retrieved accurately, or if any other issues occurred during the process.
Debugging Best Practices
To optimize your debugging process when using the +UVM_CONFIG_DB_TRACE switch, consider the following best practices:
- Review the log files thoroughly to understand the sequence and details of configuration operations.
- Check for any unexpected or missing set() or get() calls to identify potential configuration flow issues.
- Compare the logged operations against your expected configuration settings to identify any discrepancies.
- Ensure that the call parameters for set() and get() correspond correctly to the intended component hierarchy to prevent misconfiguration.
- Use the logged data to verify the consistency and accuracy of the configuration settings across all relevant testbench components.
By adhering to these best practices and leveraging the power of the +UVM_CONFIG_DB_TRACE switch, you can effectively debug and resolve any issues related to the uvm_config_db class and its configuration database. This will result in an optimized and efficient verification environment for your project.
Conclusion
In conclusion, UVM configurations are a powerful tool that allows us to tailor verification environments in our projects. They provide us with the flexibility and efficiency to manage configuration settings for our testbench components. With the help of the uvm_config_db class, we can easily add, retrieve, and synchronize configurations in the database.
By properly utilizing these capabilities, we can create highly adaptable and scalable environments for our projects. UVM configurations enable us to easily customize our testbench components without modifying the actual testbench code, saving us time and effort in the verification process.
Whether it’s setting functional coverage for agents, assigning virtual interface handles, or controlling testbench features, the uvm_config_db class and its functions provide us with a simple and effective way to manage our verification configurations. By leveraging these tools, we can optimize our verification process and ensure the success of our projects.
